Product Description

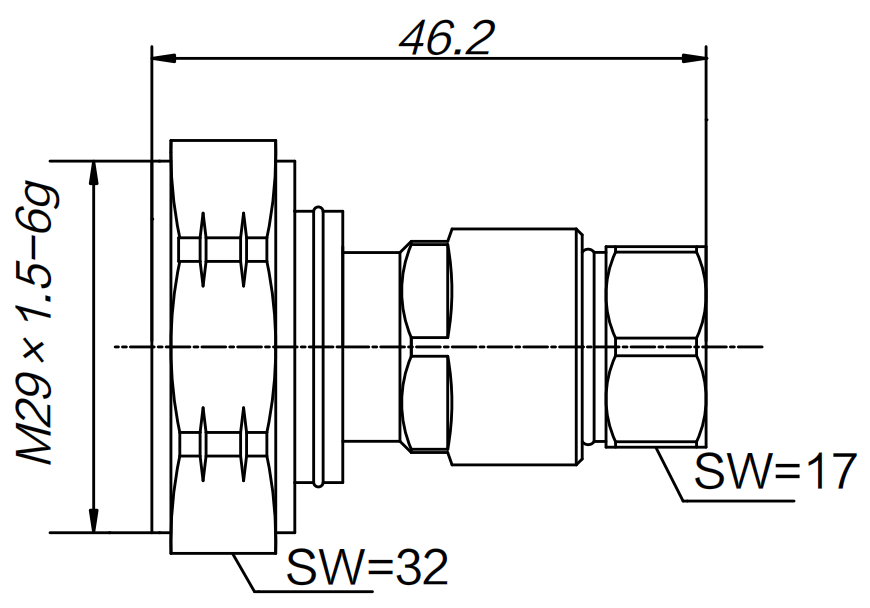

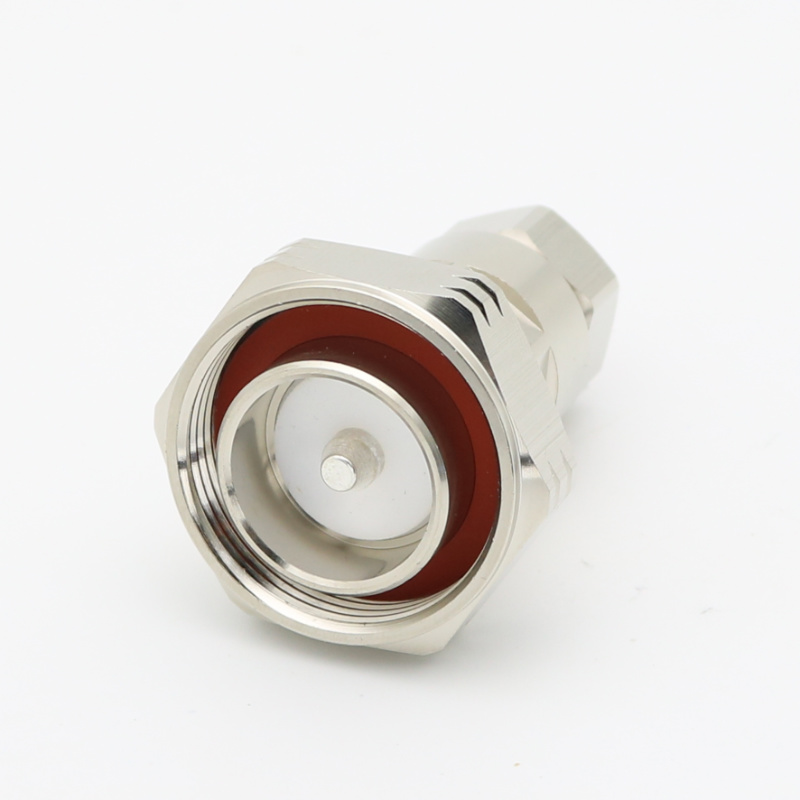

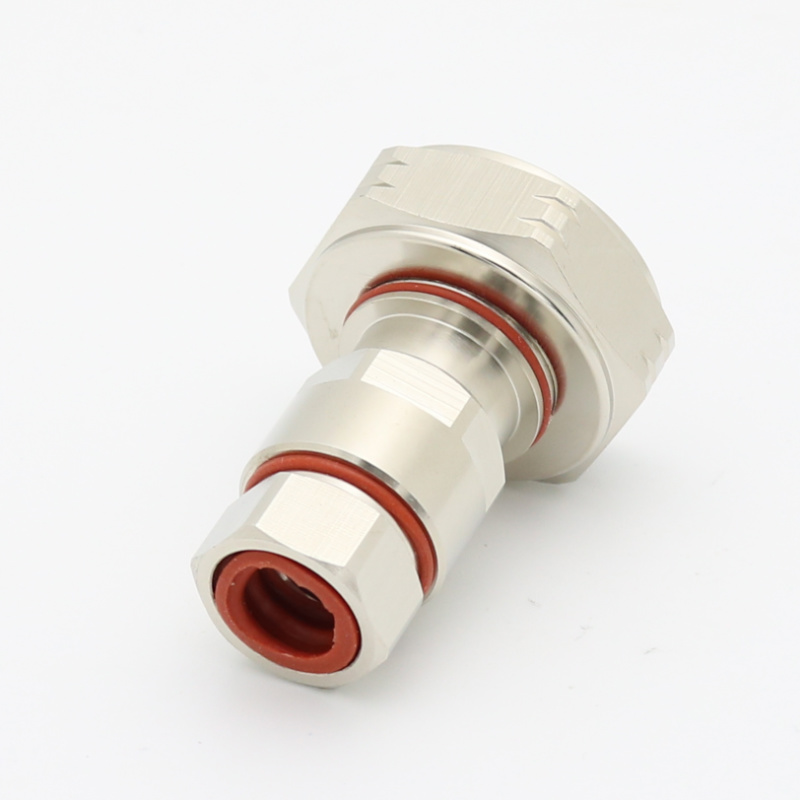

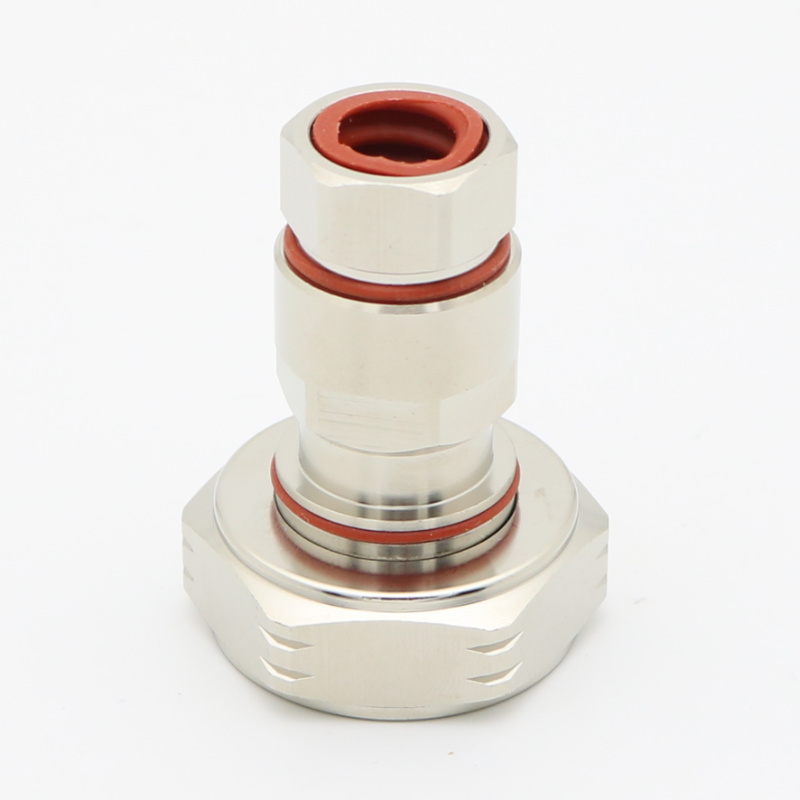

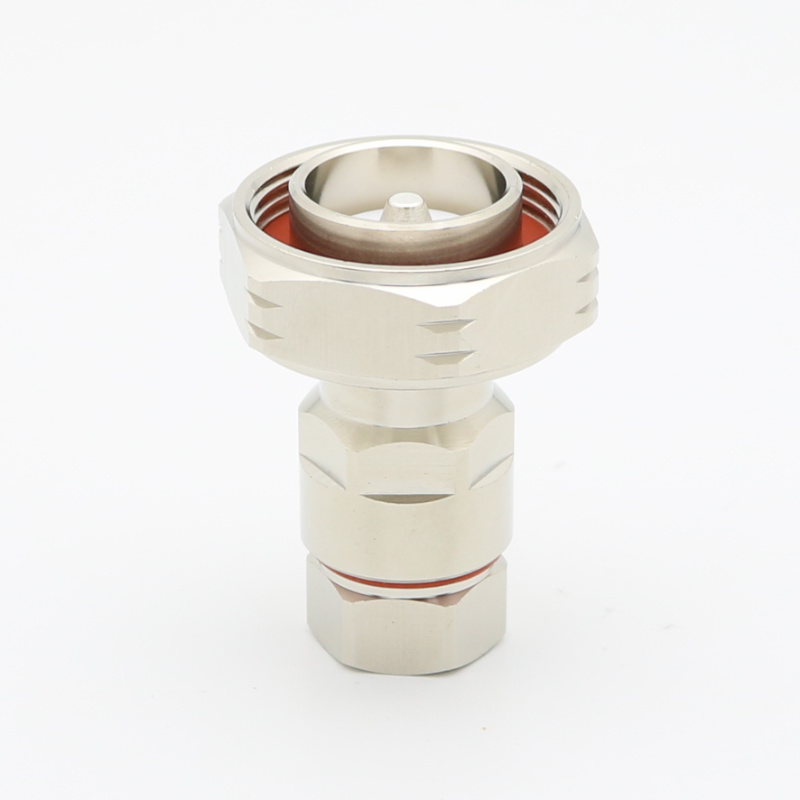

Name | 7-16 Straight Clamp Plug |
Model | XMRL292 |
Cable Type (Terminates to) | 1/2-inch Helical Corrugated |
Contact Termination | Not Applicable |
Coupling Mechanism | Threaded |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Low PIM | Yes |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Size Category | Large |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Clamp |
Thread Direction | Standard |
