BNCTNC-KJ
XIAO MA
XMRBNC032
| Quantity: | |
|---|---|
Product Description

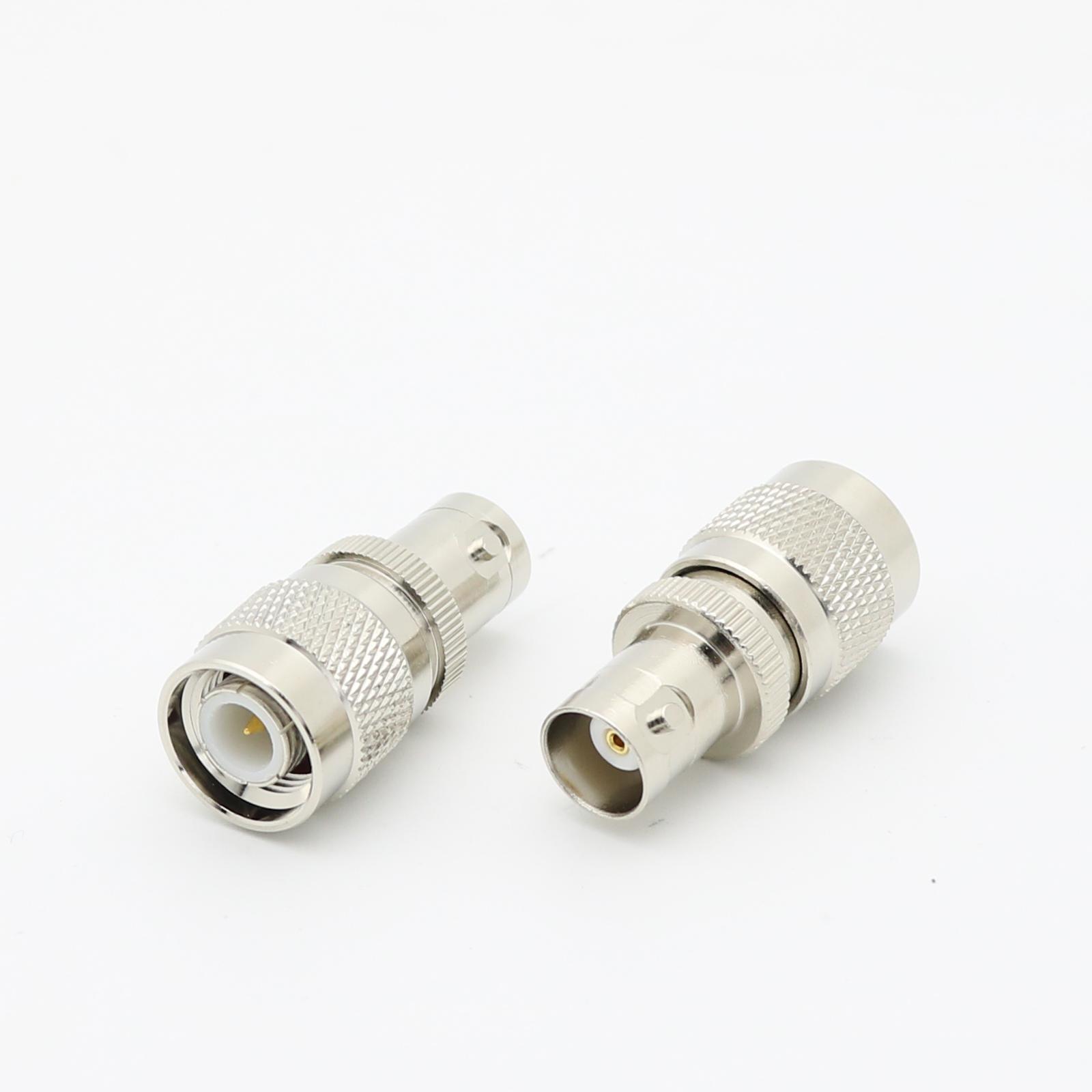

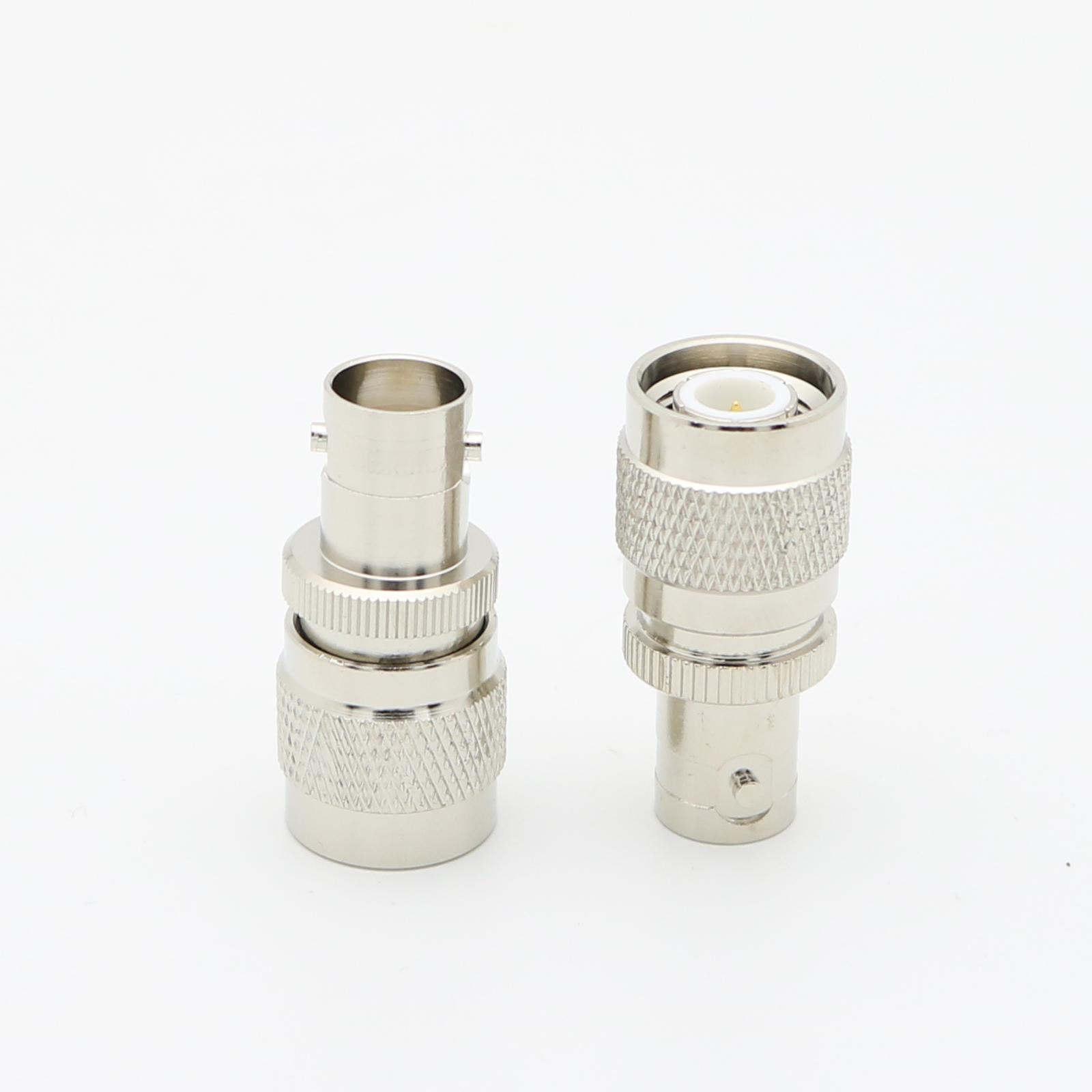

Product | BNC Jack to TNC Plug | |
Model | XMRBNC032 | |
Adapter Type | Between-Series | |
Body Finish | Nickel | |
Body Material | Brass | |
Contact Finish | Gold | |
Contact Material | Phosphor Bronze | |
Frequency (Max GHz) | 4 | |
Impedance (Ohms) | 50 | |
Insulator Material | PTFE | |
Orientation | Straight | |
Panel Mounting Feature | Not Applicable | |
Temp (Max Degrees Celsius) | 85 | |
Temp (Min Degrees Celsius) | -40 | |
