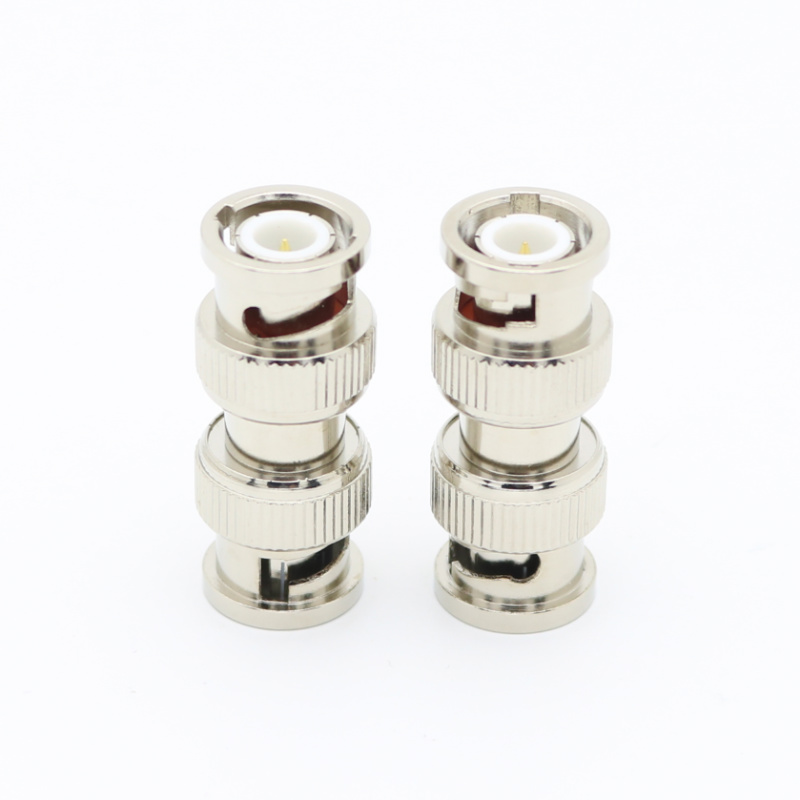

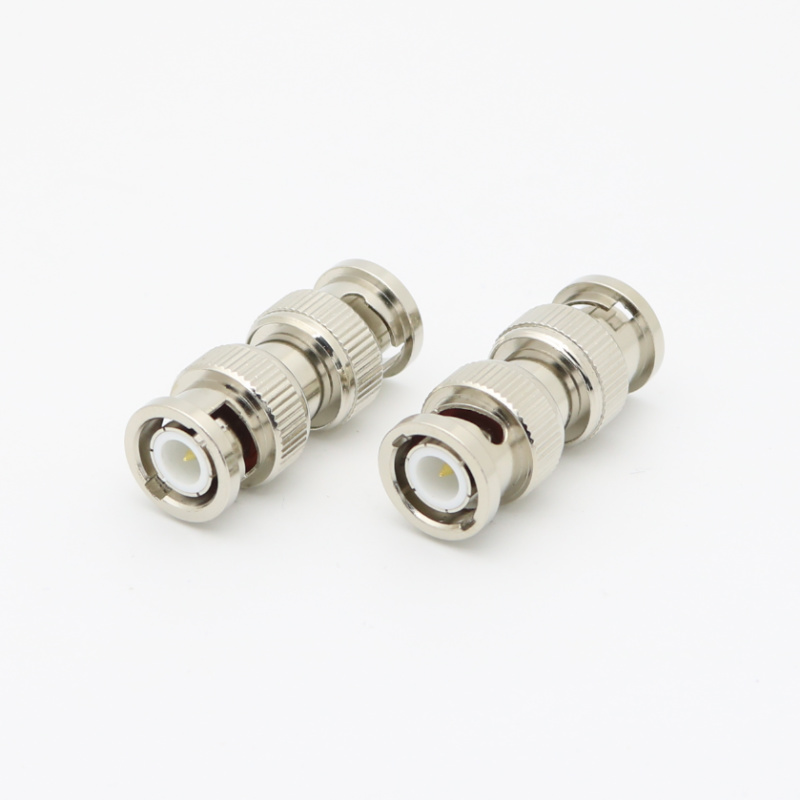

BNC Male Adapter XMR016

  • BNC-JJ

  • XIAO MA

  • XMR016

Availability:
Quantity:
Inquire Add to Basket

Product Description

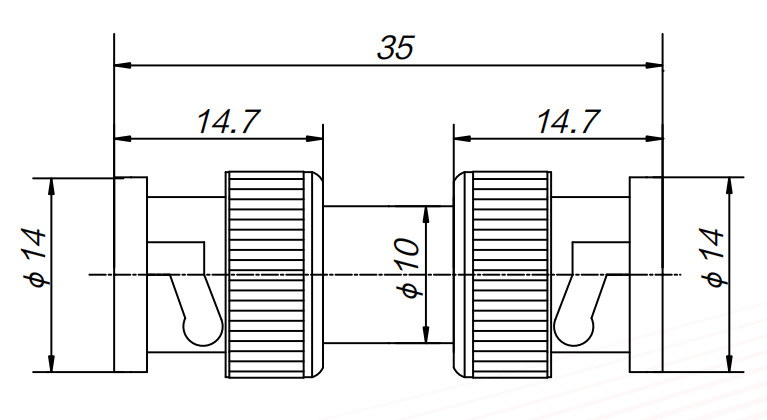

BNC-JJ XMR016

Name

BNC Plug to BNC Plug

Adapter Type

In-Series

Body Finish

Nickel

Body Material

Brass

Contact Finish

Gold

Contact Material

Beryllium Copper

Frequency (Max GHz)

3

Impedance (Ohms)

50

Insulator Material

PTFE

Orientation

Straight

Temp (Max Degrees)

165

Temp (Min Degrees)

-65
