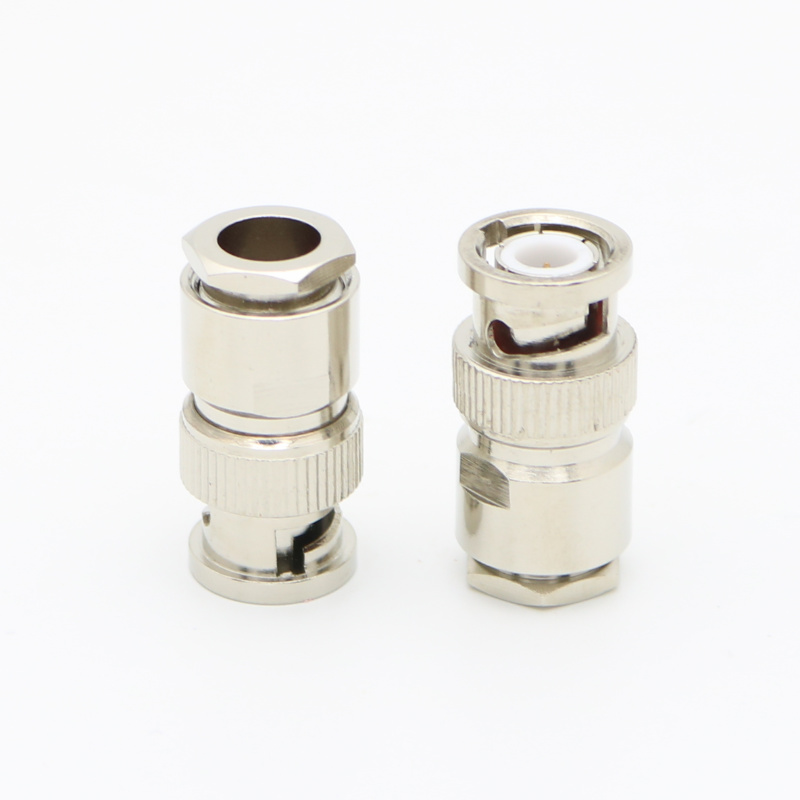

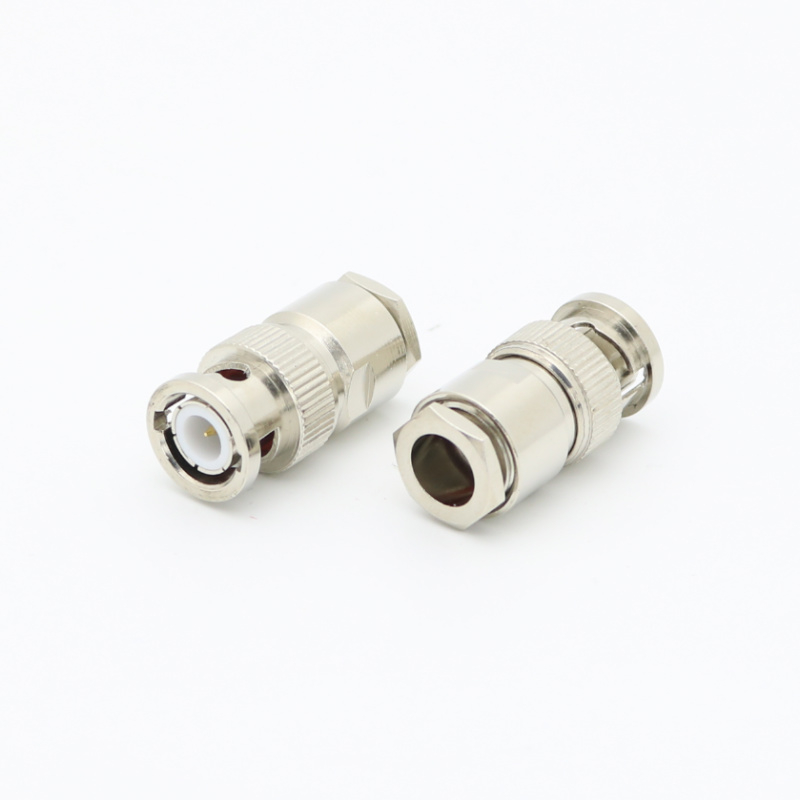

BNC Straight Clamp Plug SYV-50-5 50 Ohm XMR015

  • BNC-J13

  • XIAO MA

  • XMR015

  • LMR300、SYV-50-5 ，5D-FB

Availability:
Quantity:
Inquire Add to Basket

Product Description

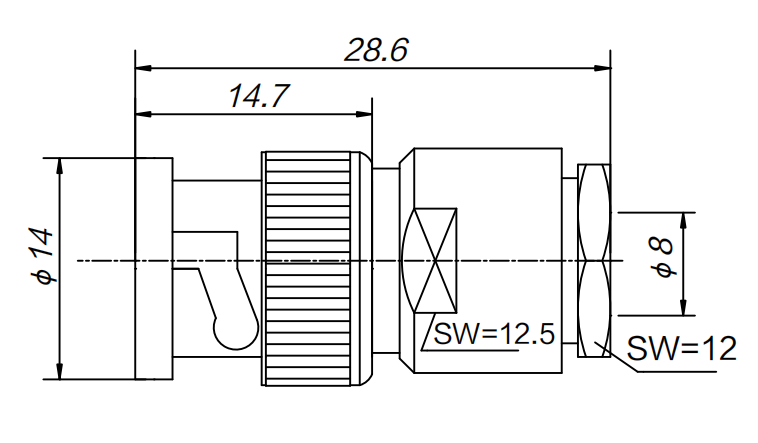

XMR015 BNC-J13

Name

BNC Straight Clamp Plug

Model

 XMR015

Body Finish

Nickel

Body Material

Brass

Cable Type

LMR300、SYV-50-5、5D-FB

Contact Finish

gold

Contact Material

Brass

Contact Termination

Solder

Coupling Mechanism

Bayonet

Frequency (Max GHz)

4

Gender

Plug

Impedance (Ohms)

50

Insulator Material

PTFE

Orientation

Straight

Size Category

Miniature

Temp (Max Degrees )

165

Temp (Min Degrees )

-65

Termination Style

Cable - Clamp
