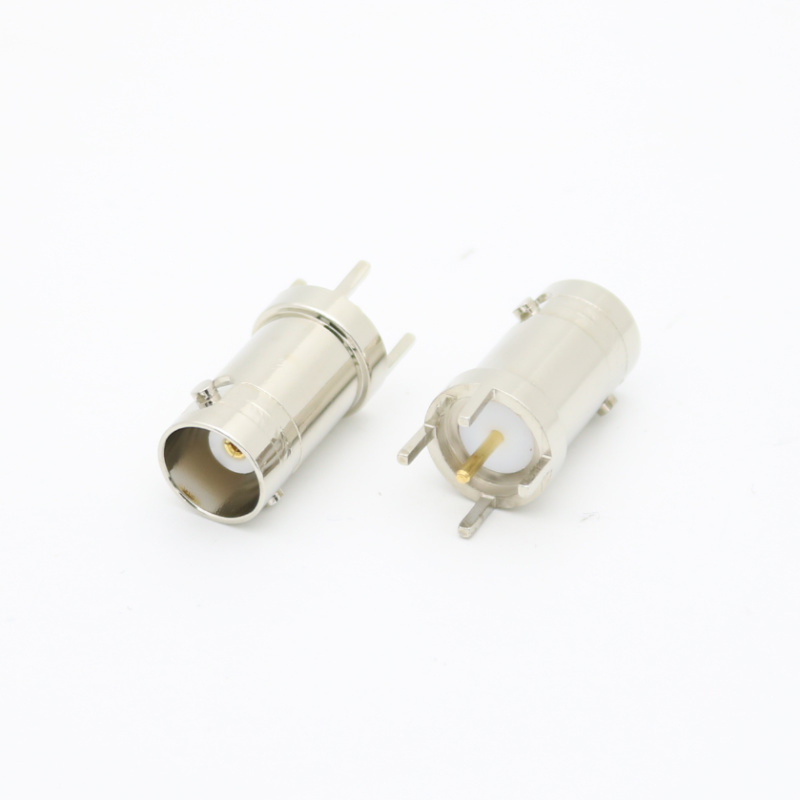

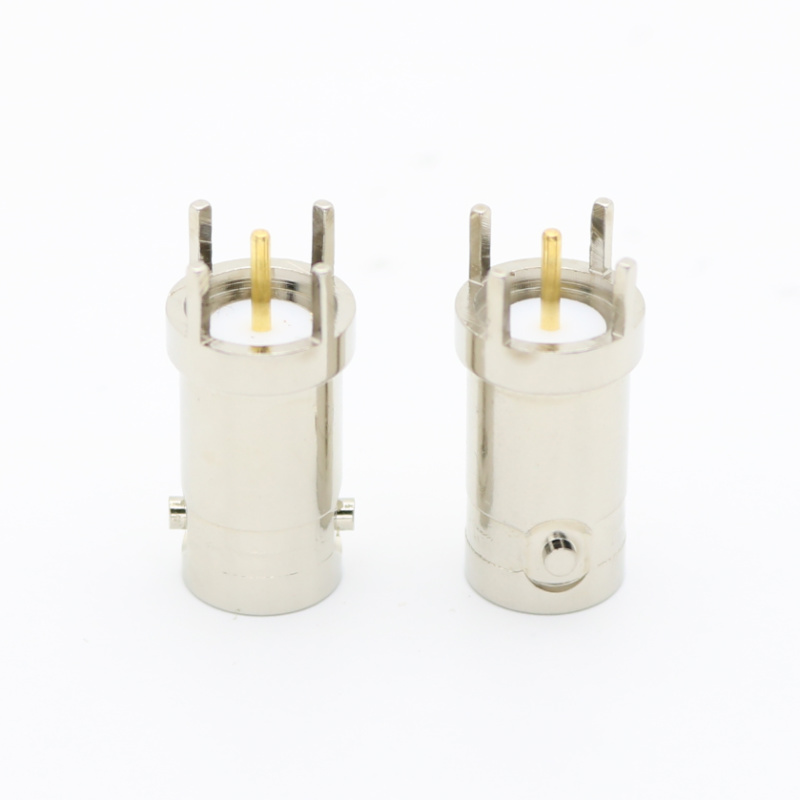

BNC Straight PCB Jack 50 ohm XMR021

  • BNC-KE 50Ω

  • XIAO MA

  • XMR021

Availability:
Quantity:
Inquire Add to Basket

Product Description

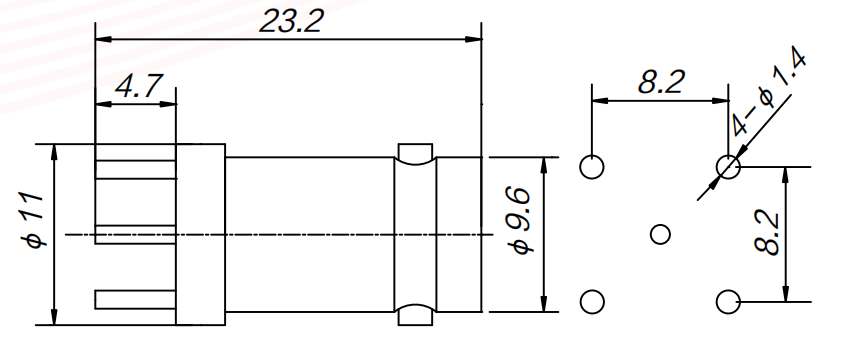

XMR021 BNC-KE 50Ω

Name

BNC Straight PCB Jack

Model

 XMR021

Body Finish

Nickel

Body Material

Brass

Cable Type

Not Applicable

Contact Finish

gold

Contact Material

Phosphor Bronze

Contact Termination

Solder

Coupling Mechanism

Bayonet

Frequency (Max GHz)

4

Gender

Jack

Impedance (Ohms)

50

Insulator Material

PCTFE

Orientation

Straight

Ports

1 (Single Port)

Temp (Max Degrees Celsius)

85

Temp (Min Degrees Celsius)

-40

Termination Style

PCB
