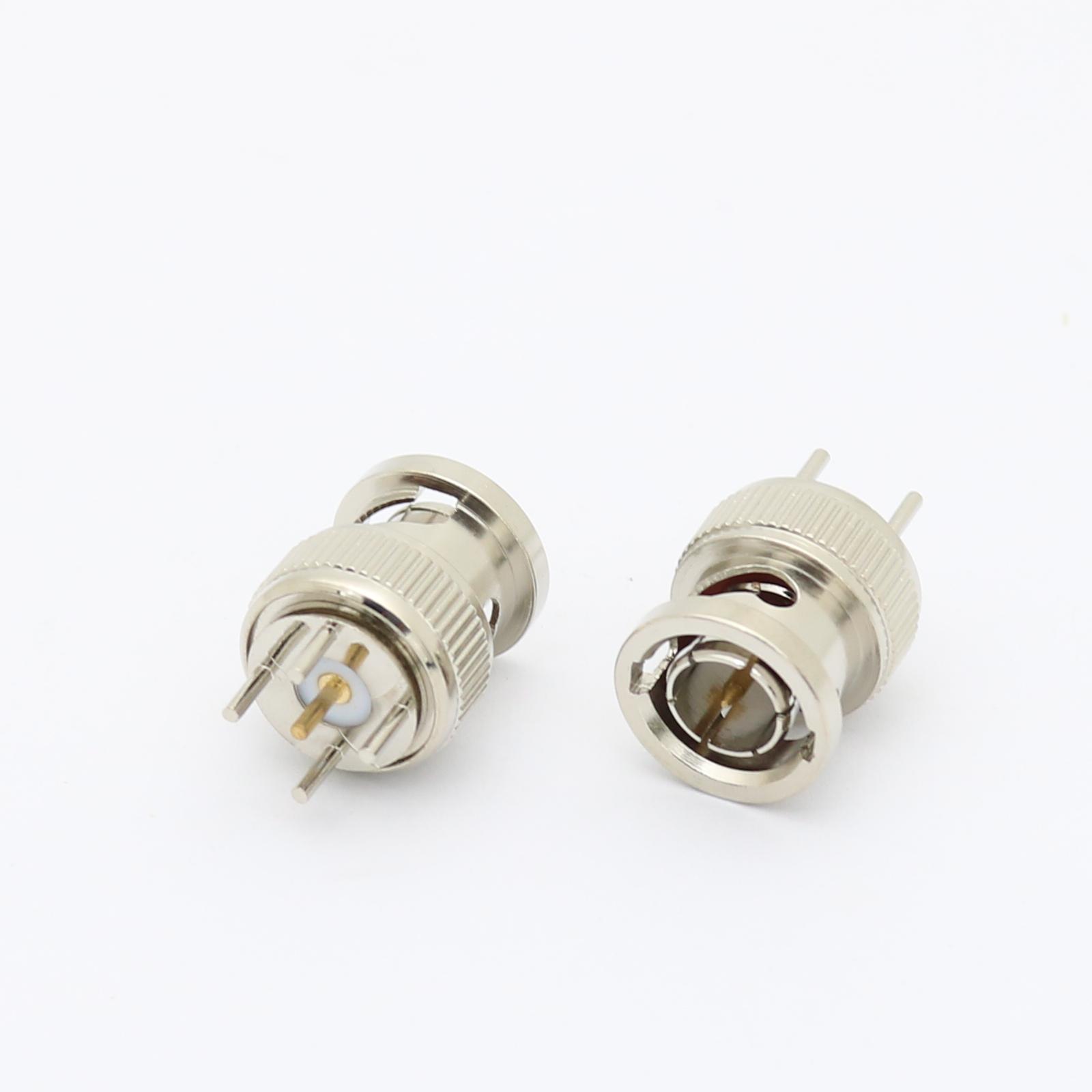

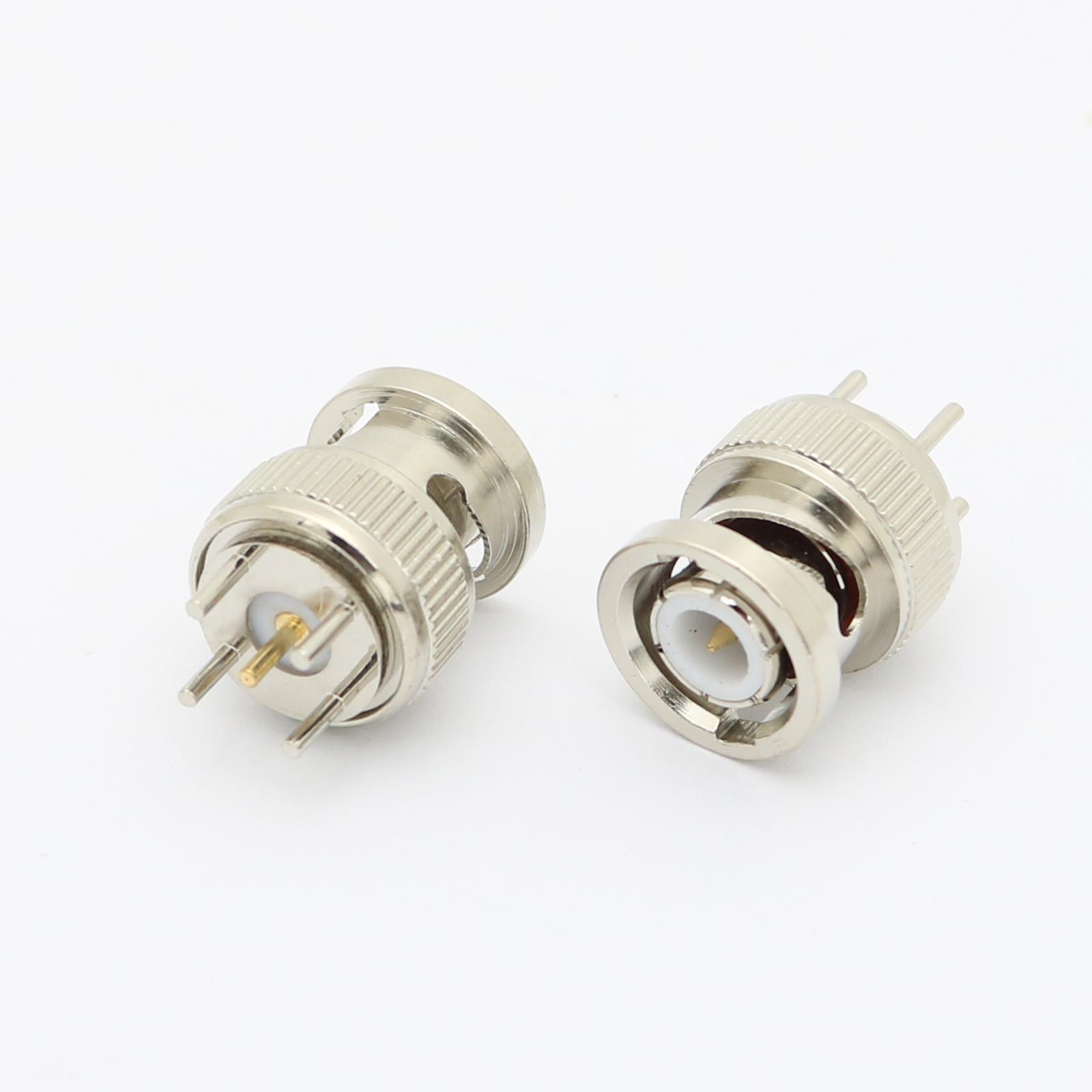

BNC Straight PCB Plug End Launch 50 Ohm XMRBNC28

  • XMRBNC28

  • BNC-JE 50

Availability:
Quantity:
Inquire Add to Basket

Product Description

BNC-JE 50

Body Finish

Nickel/Gold

Body Material

Brass

Cable Type (Terminates to)

Not Applicable

Contact Finish

Gold

Contact Material

Phosphor Bronze

Contact Termination

Solder

Coupling Mechanism

Bayonet

Frequency (Max GHz)

4

Gender

Plug

Impedance (Ohms)

50

Insulator Material

PTFE

Orientation

Straight

Ports

1 (Single Port)

Temp (Max Degrees Celsius)

165

Temp (Min Degrees Celsius)

-65

Termination Style

PCB - End Launch
