BNC-J4
XIAO MA
XMR014
LMR240、SYV-50-4
| Quantity: | |
|---|---|
Product Description
Name |

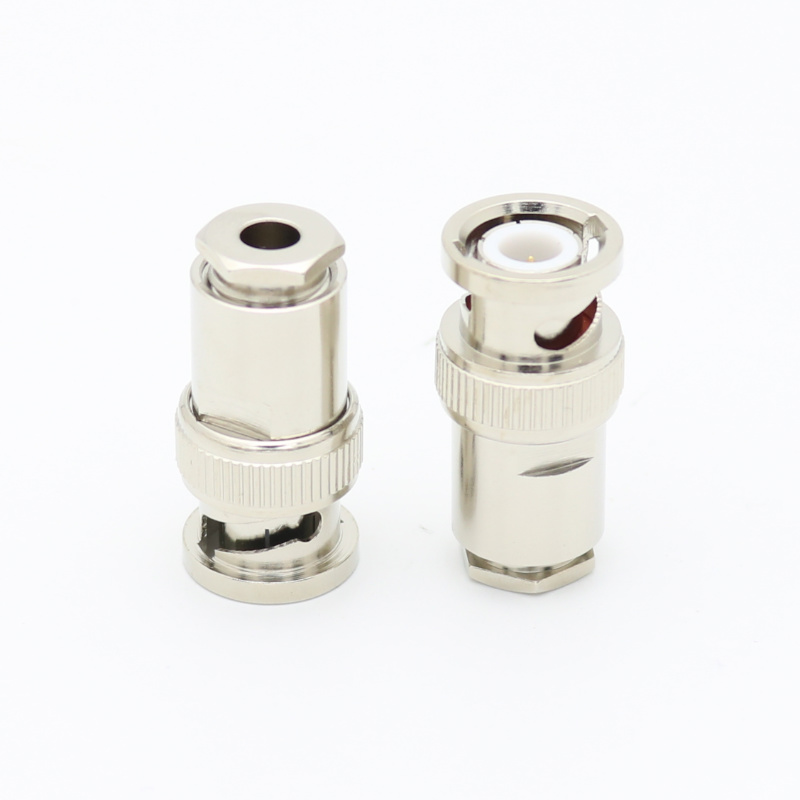

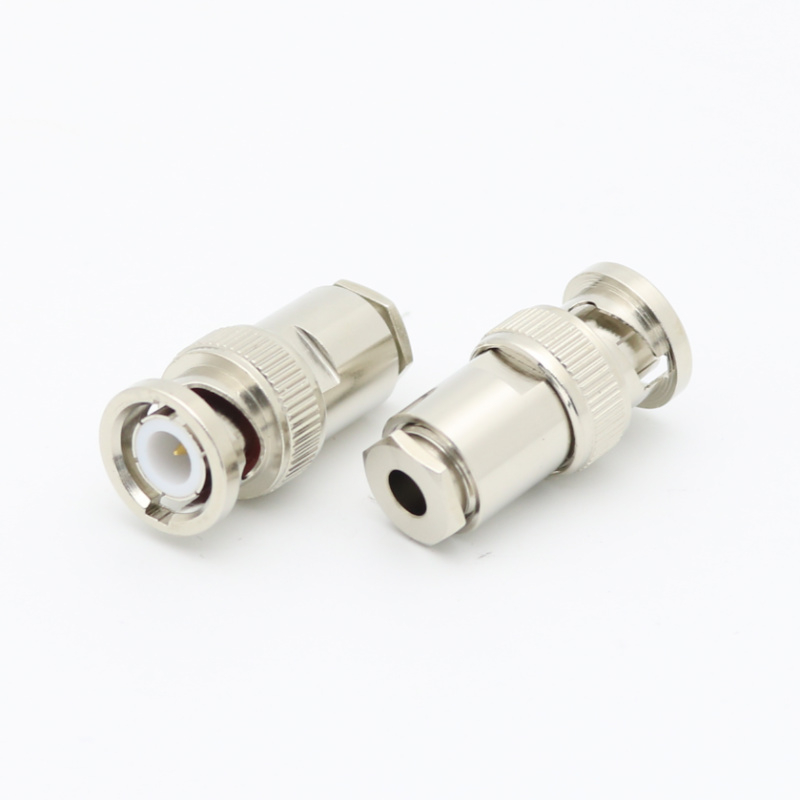

BNC Plug clamp |
Model |
XMR014 |
Body Finish |
Nickel |
Body Material |
Brass |
Cable Type |
LMR240、SYV-50-4 |
Contact Finish |
gold |
Contact Material |
Brass |
Contact Termination |
Solder |
Coupling Mechanism |
Bayonet |
Frequency (Max GHz) |
4 |
Gender |
Plug |
Impedance (Ohms) |
50 |
Insulator Material |
PTFE |
Orientation |
Straight |
Temp (Max Degrees ) |
165 |
Temp (Min Degrees ) |
-65 |
Termination Style |
Cable - Clamp |
