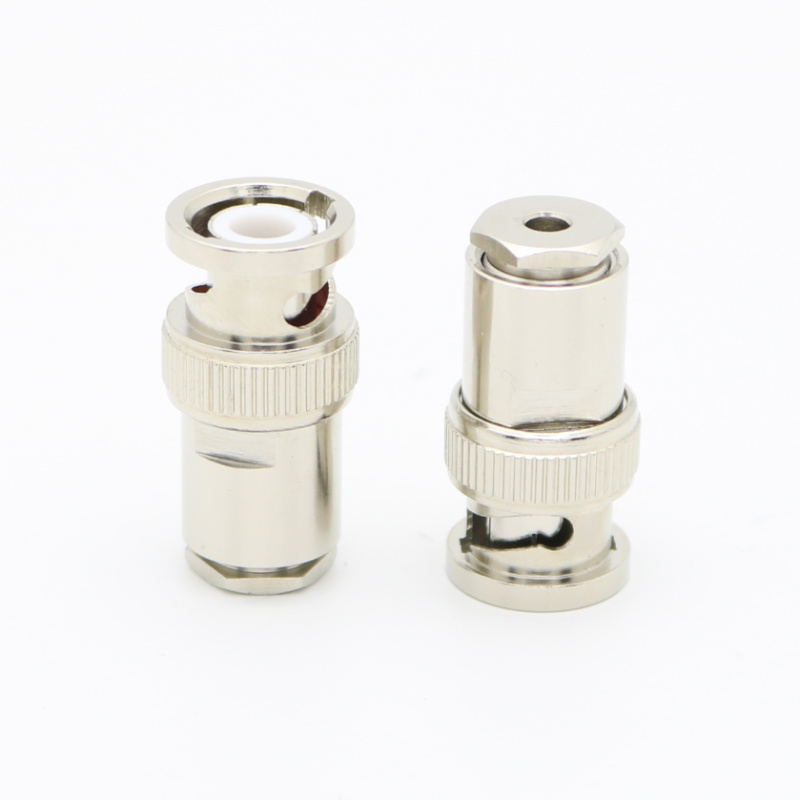

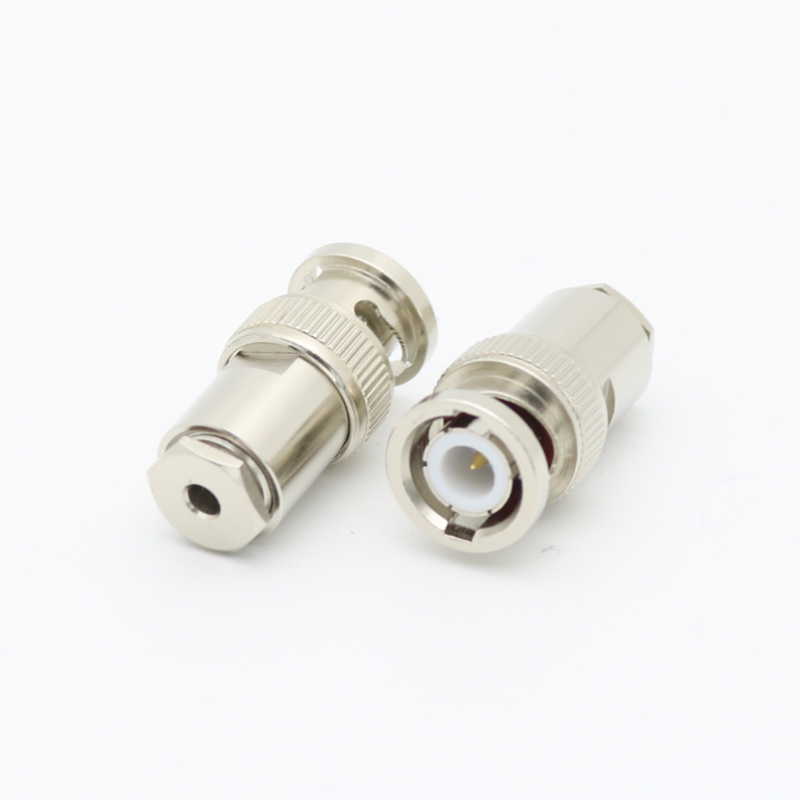

BNC Straight Plug RG142 50 Ohm XMR013

  • BNC-J3

  • XMR013

  • LMR195、CNT195、RG58、 RG233、RG142、RG400

Availability:
Quantity:
Inquire Add to Basket

Product Description

XMR013 BNC-J3


Name

BNC Plug Clamp

Model

 XMR013

Body Finish

Nickel

Body Material

Brass

Cable Type

LMR195、CNT195、RG58、 RG233、RG142、RG400

Contact Finish

gold

Contact Material

Brass

Contact Termination

Solder

Coupling Mechanism

Bayonet

Frequency (Max GHz)

4

Gender

Plug

Impedance (Ohms)

50

Insulator Material

PTFE

Orientation

Straight

Temp (Max Degrees )

165

Temp (Min Degrees )

-65

Termination Style

Cable - Clamp
