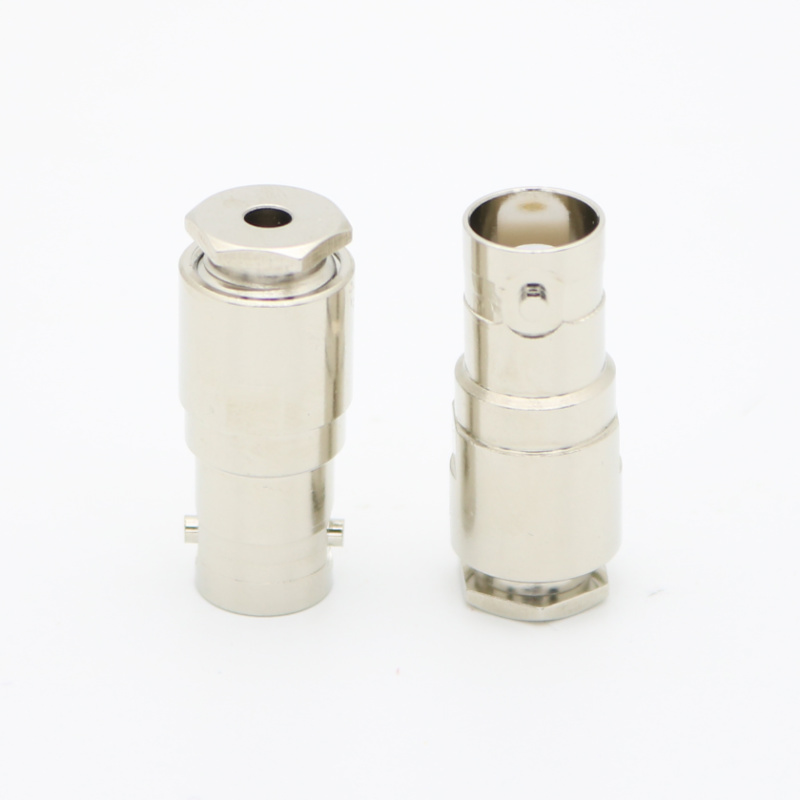

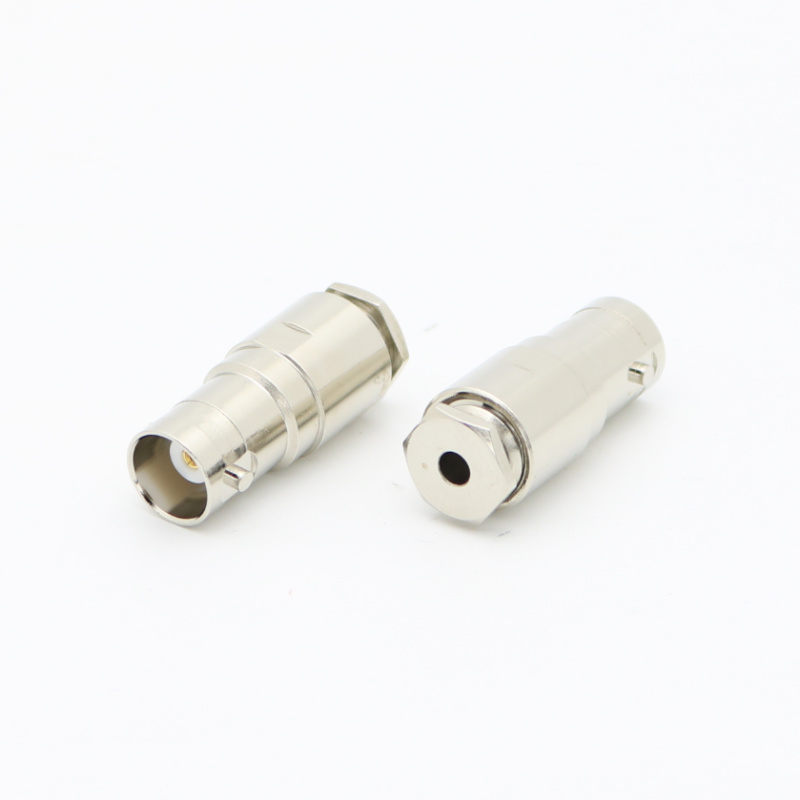

BNC Straight Plug RG142 XMR017

  • BNC-K3

  • XIAO MA

  • XMR017

  • LMR195、CNT195、RG58、 RG233、RG142、RG400

Availability:
Quantity:
Inquire Add to Basket

Product Description

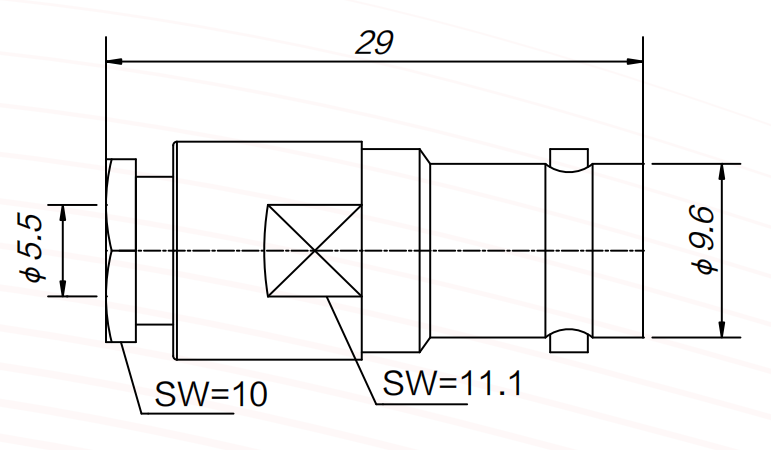

XMR017 BNC-K3

Name

BNC clamp Jack

Model

 XMR017

Body Finish

Nickel

Body Material

Brass

Cable Type

LMR195、CNT195、RG58、 RG233、RG142、RG400

Contact Finish

gold

Contact Material

Brass

Contact Termination

Solder

Coupling Mechanism

Bayonet

Frequency (Max GHz)

4

Gender

Plug

Impedance (Ohms)

50

Insulator Material

PTFE

Orientation

Straight

Temp (Max Degrees )

165

Temp (Min Degrees )

-65

Termination Style

Cable - Clamp
