MCX-KE
XIAO MA
XMRMCX1
| Quantity: | |
|---|---|
Product Description

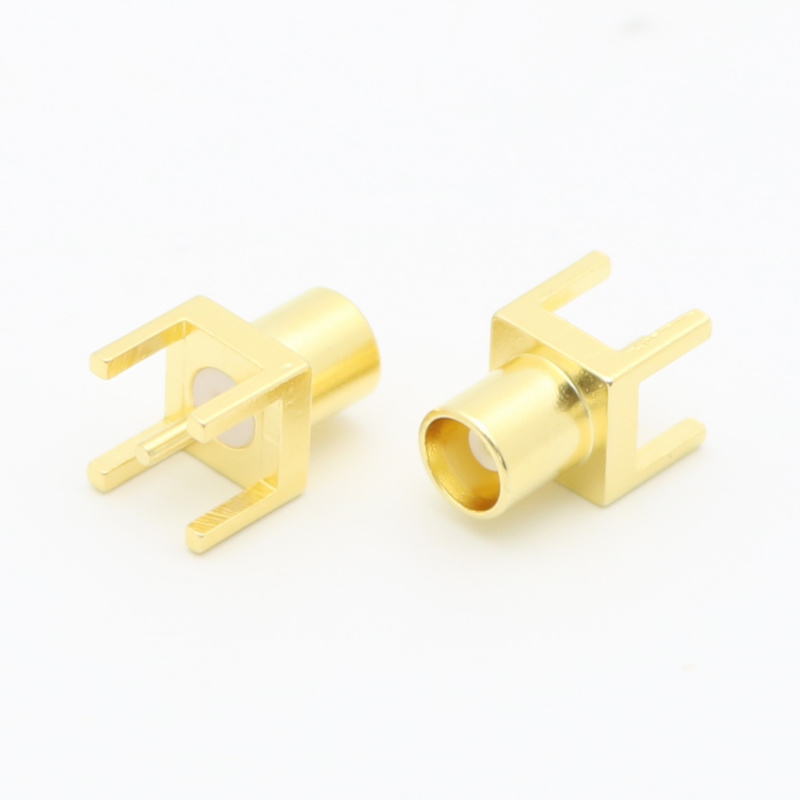

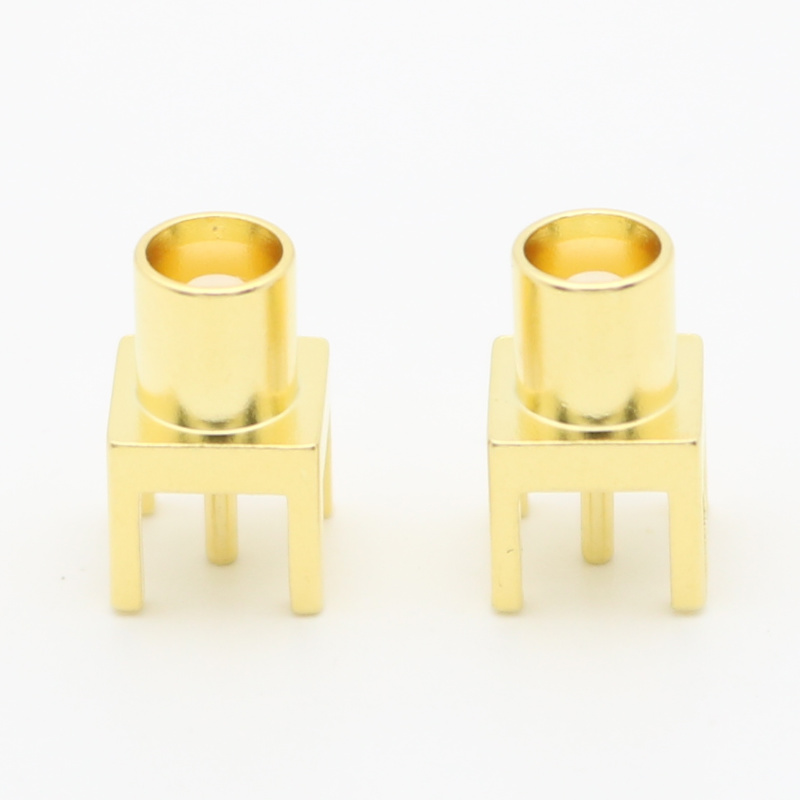

| Name | MCX Straight PCB Jack Through Hole 75 Ohm |
| Model | XMRMCX1 |
Body Finish | Gold |
Body Material | Brass |
Cable Type (Terminates to) | Not Applicable |
Contact Finish | Gold |
Contact Material | Beryllium Copper |
Contact Termination | Solder |
Coupling Mechanism | Push-on |
Frequency (Max GHz) | 6 |
Gender | Jack |
Impedance (Ohms) | 75 |
Insulator Material | PCTFE |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | PCB - Through Hole |
