N-C-KF-3
XIAO MA
XMRN5
LMR195 CNT195 RG58 RG233 RG142 RG400
| Quantity: | |
|---|---|
Product Description

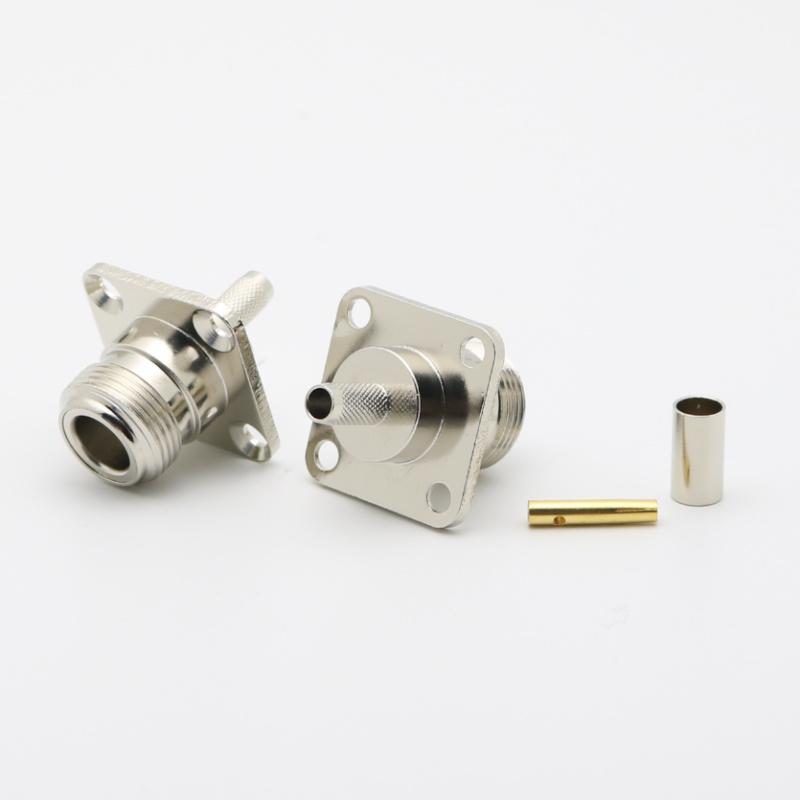

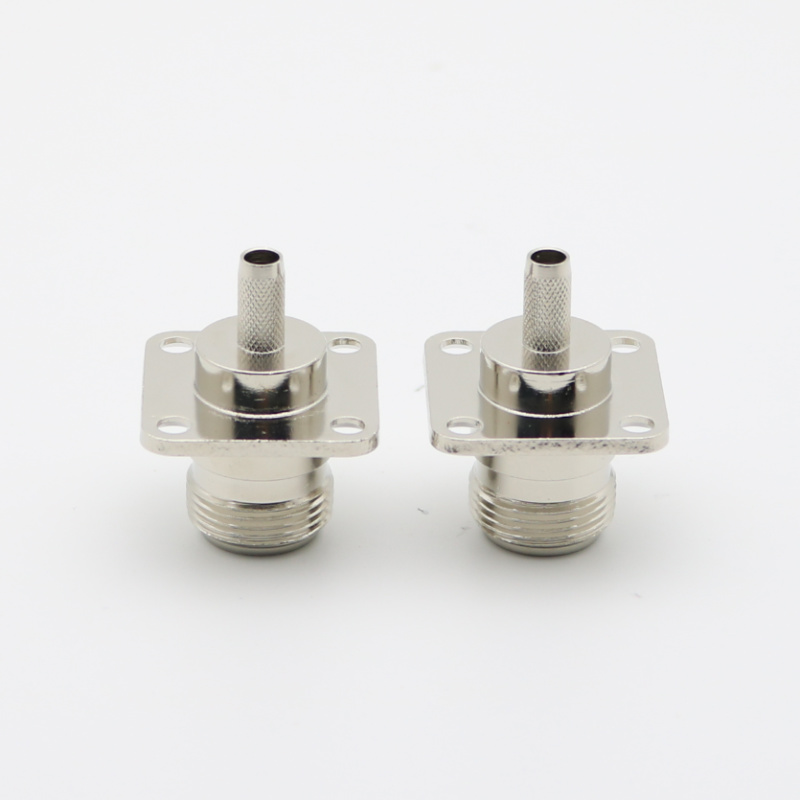

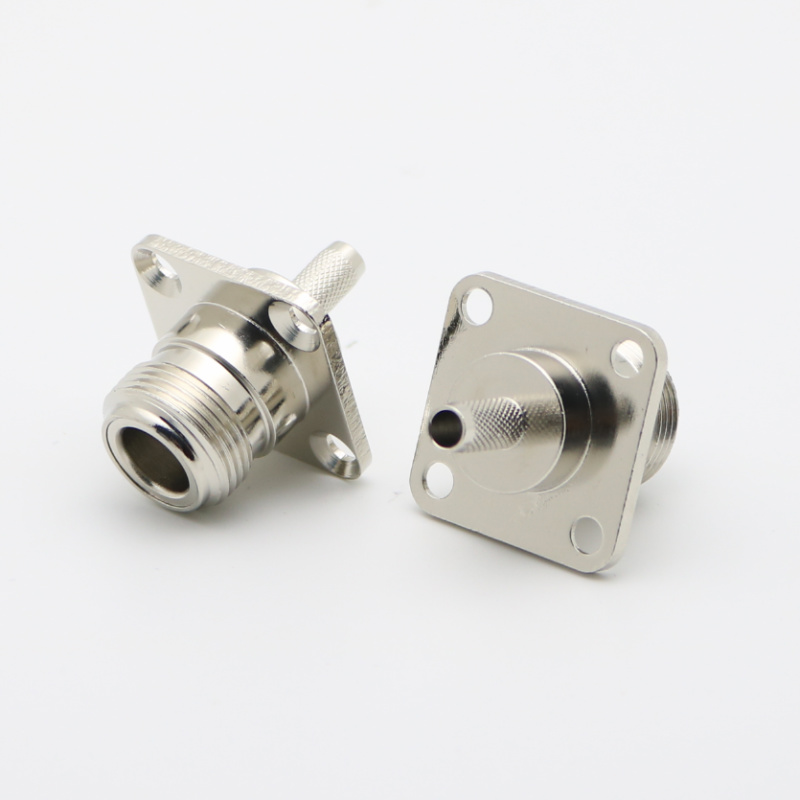

Name | N Panel Mount Jack 4-Hole Flange Crimp 50 Ohm CNT195 RG58 RG233 RG142 RG400 |
Model | XMRN5 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | LMR195 CNT195 RG58 RG233 RG142 RG400 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 11 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Panel Mounting Feature | 4-Hole Flange |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 85 |
Temp (Min Degrees Celsius) | -40 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
