N-C-JW5
XIAO MA
XMRN4
LMR300 CNT300 5D-FB
| Quantity: | |
|---|---|
Product Description

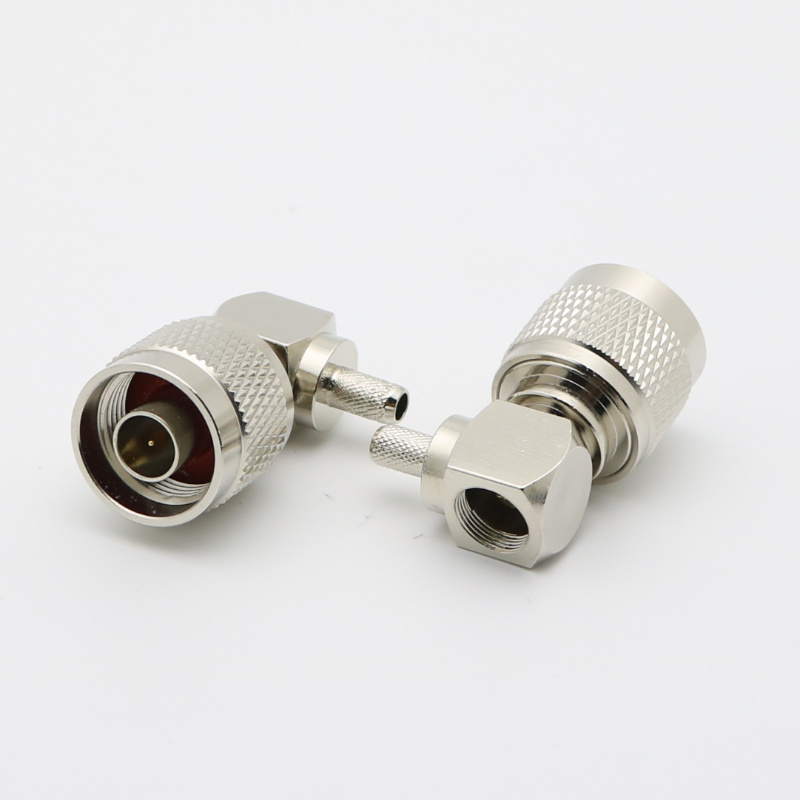

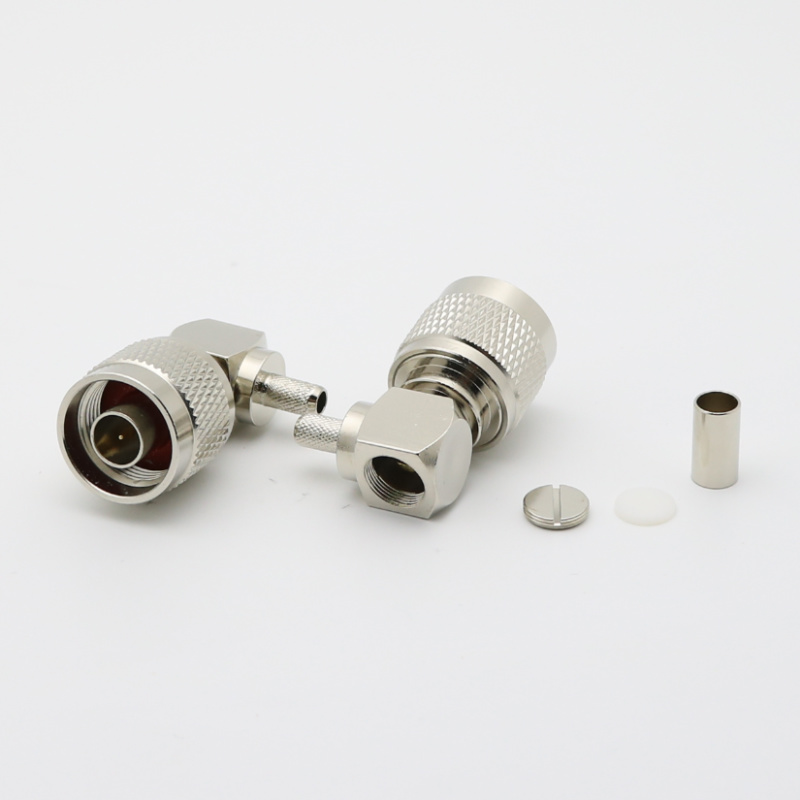

Name | N Right Angle Crimp Plug LMR300 CNT300 5D-FB |
Model | XMRN4 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | LMR300 CNT300 5D-FB |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Crimp |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 11 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
