N-KYB2
XIAO MA
XMRN35
086 semi-rigid 086 Semi-flexible RG405 ZLC260
| Quantity: | |
|---|---|
Product Description

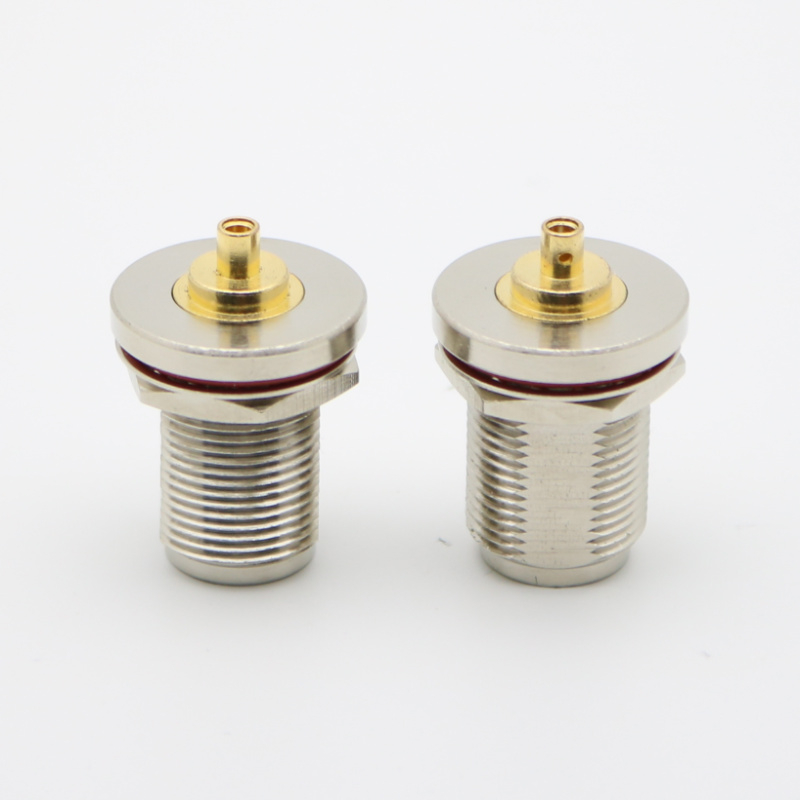

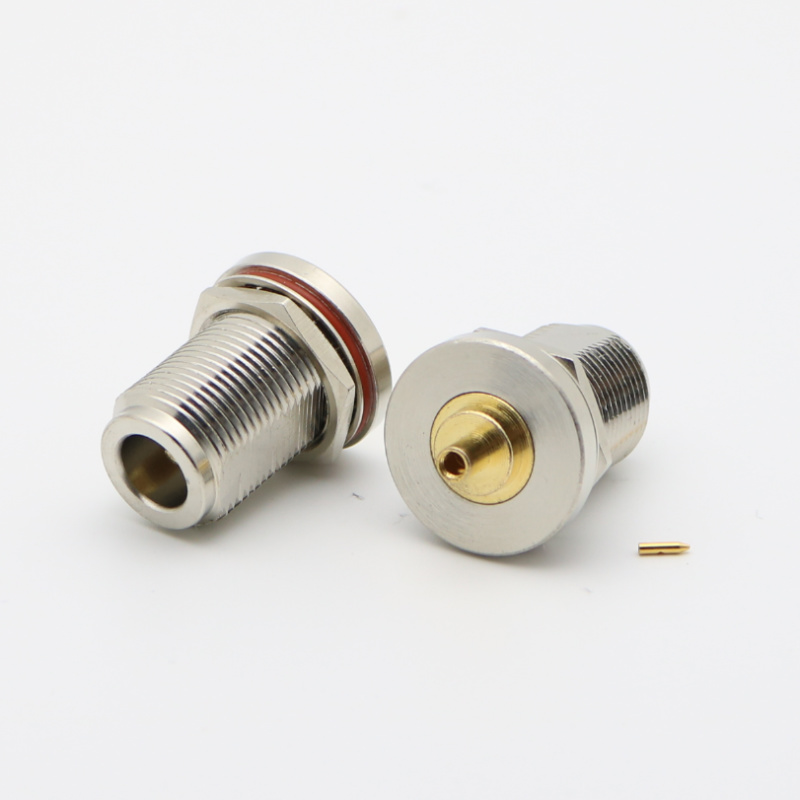

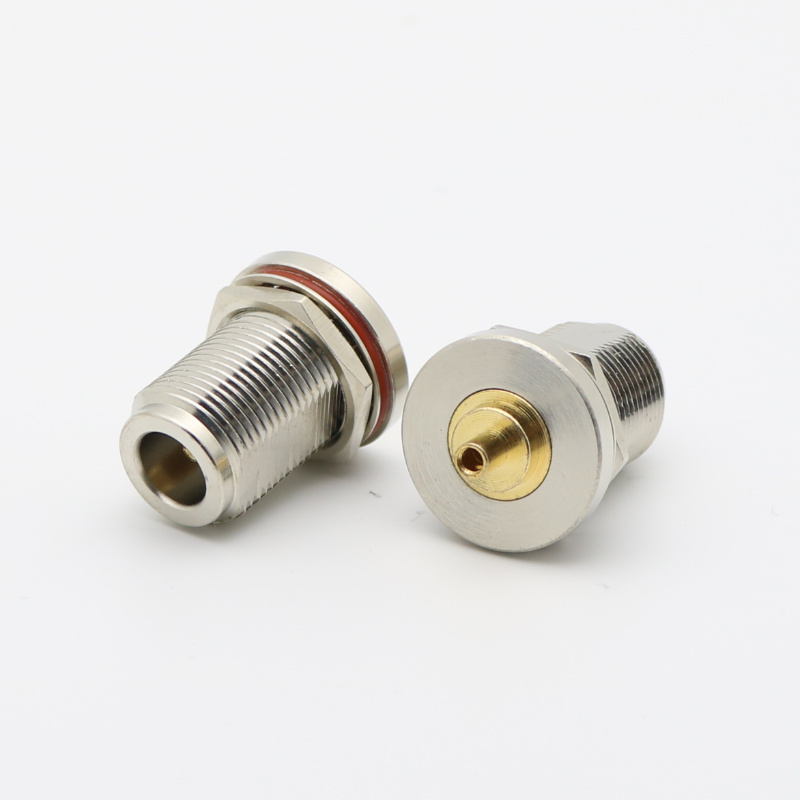

Name | N Straight Bulkhead Jack 086 Semi-rigid 086 Semi-flexible RG405 ZLC260 |
Model | XMRN35 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | 086 semi-rigid 086 Semi-flexible RG405 ZLC260 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 11 |
Gender | Jack |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Solder |
Thread Direction | Standard |
