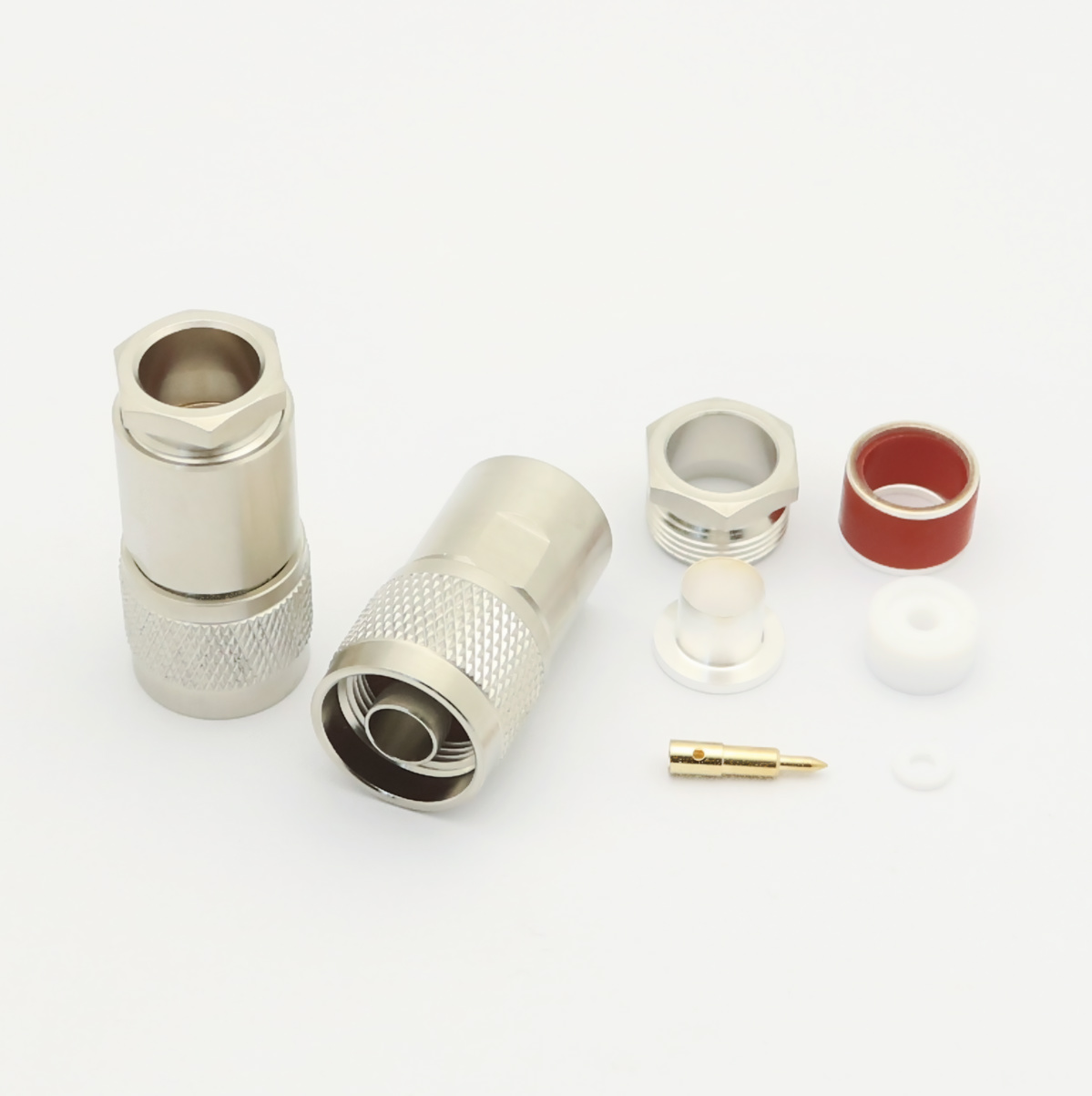

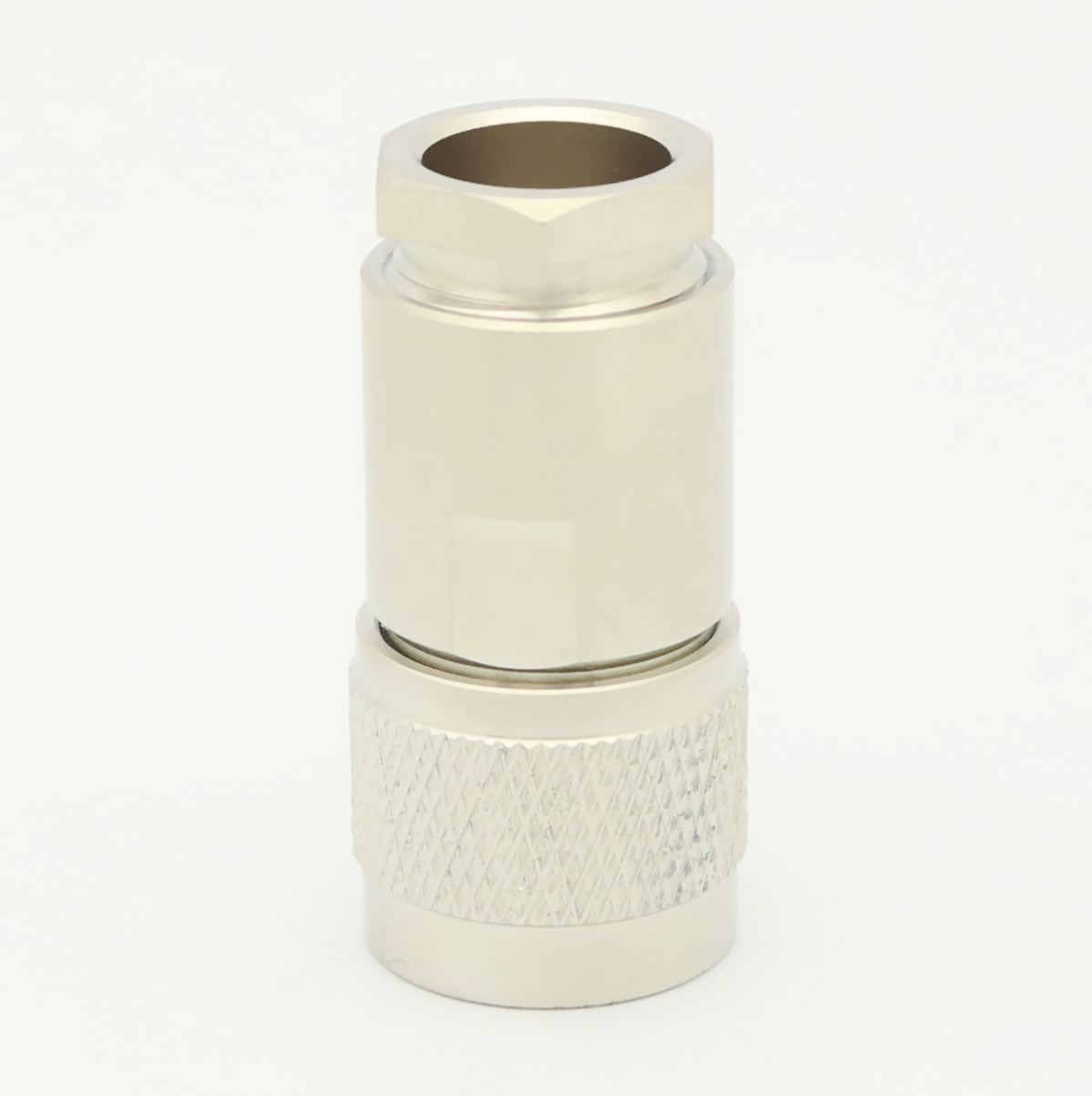

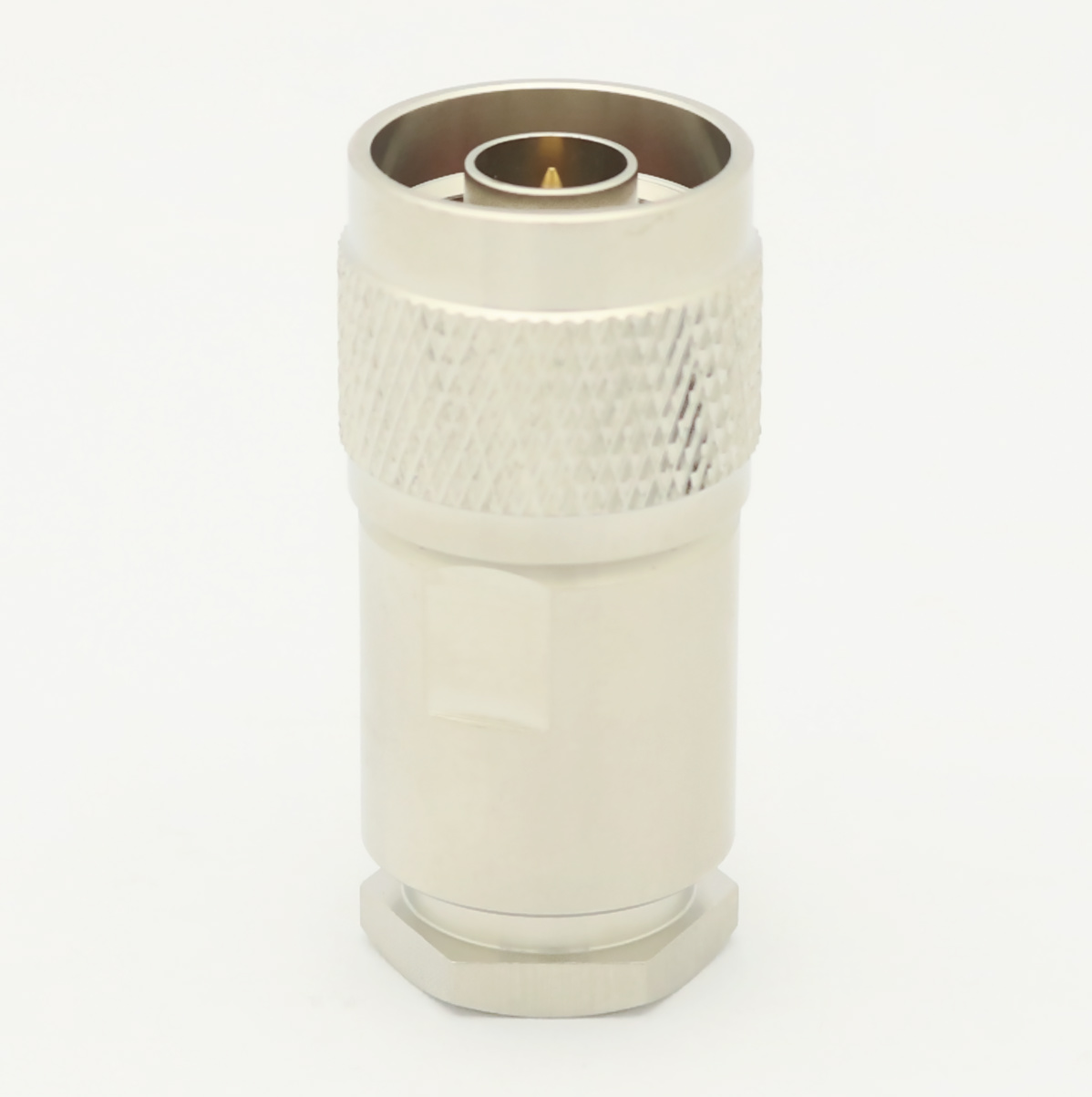

N Straight Clamp Plug 8D-FB XMRN12

  • N-J8

  • XIAO MA

  • XMRN12

  • 8D-FB

Availability:
Quantity:
Inquire Add to Basket

Product Description

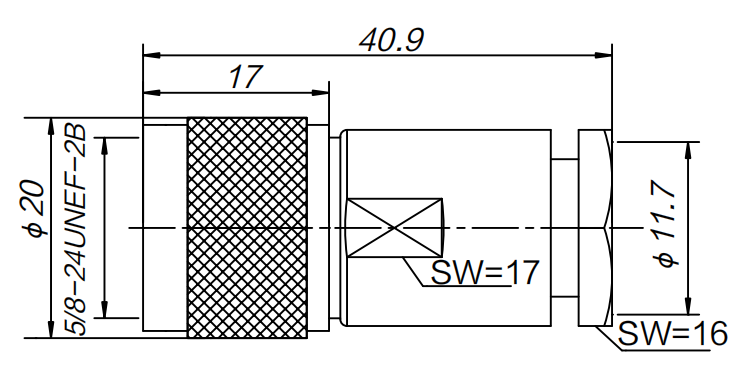

N-J8 XMR12 (5)



Name

 N Straight Clamp Plug LMR400 RG8

Model

 XMRN12

Body Finish

Nickel

Body Material

Brass

Cable Type

 8D-FB

Contact Finish

Gold

Contact Material

Brass

Contact Termination

Solder

Coupling Mechanism

Threaded

Customization

ACCEPTABLE

Frequency (Max GHz)

11

Gender

Plug

Impedance (Ohms)

50

Insulator Material

PCTFE

Orientation

Straight

Ports

1 (Single Port)

Size Category

Standard

Temp (Max Degrees Celsius)

165

Temp (Min Degrees Celsius)

-65

Termination Style

Cable - Clamp

Thread Direction

Standard
