N-J-4
XMRN9
LMR240 SYV-50-4
| Quantity: | |
|---|---|
Product Description

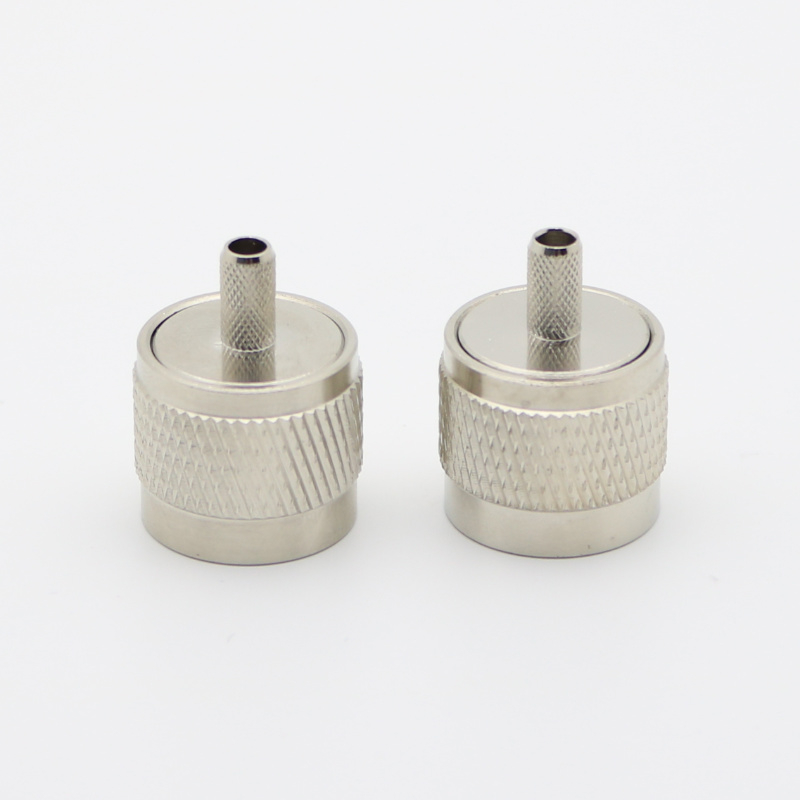

Name | N Straight Crimp Plug LMR240 SYV-50-4 |
Model | XMRN9 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | LMR240 SYV-50-4 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Crimp |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 11 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
