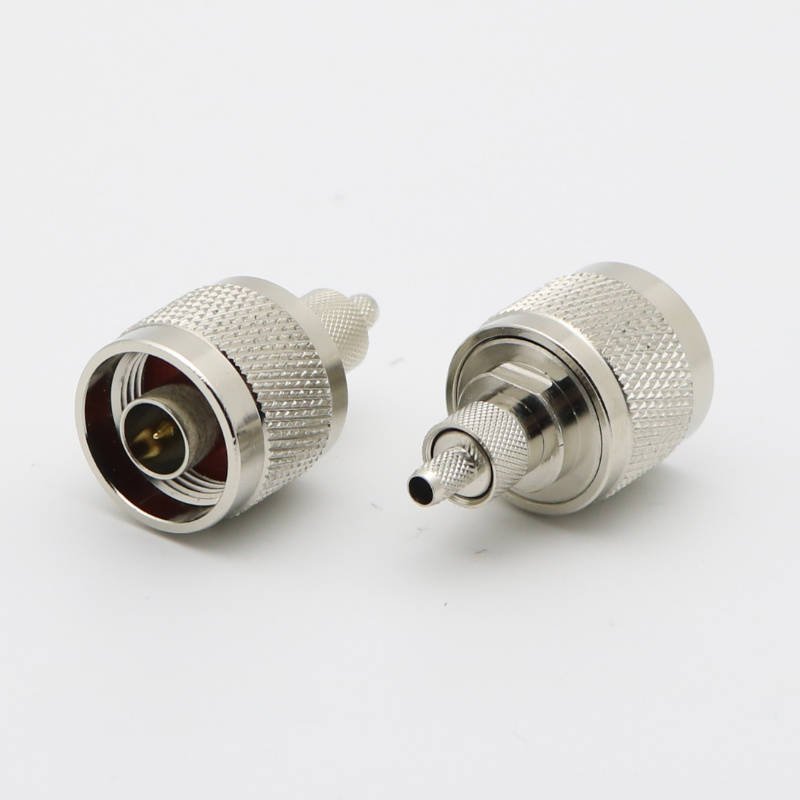

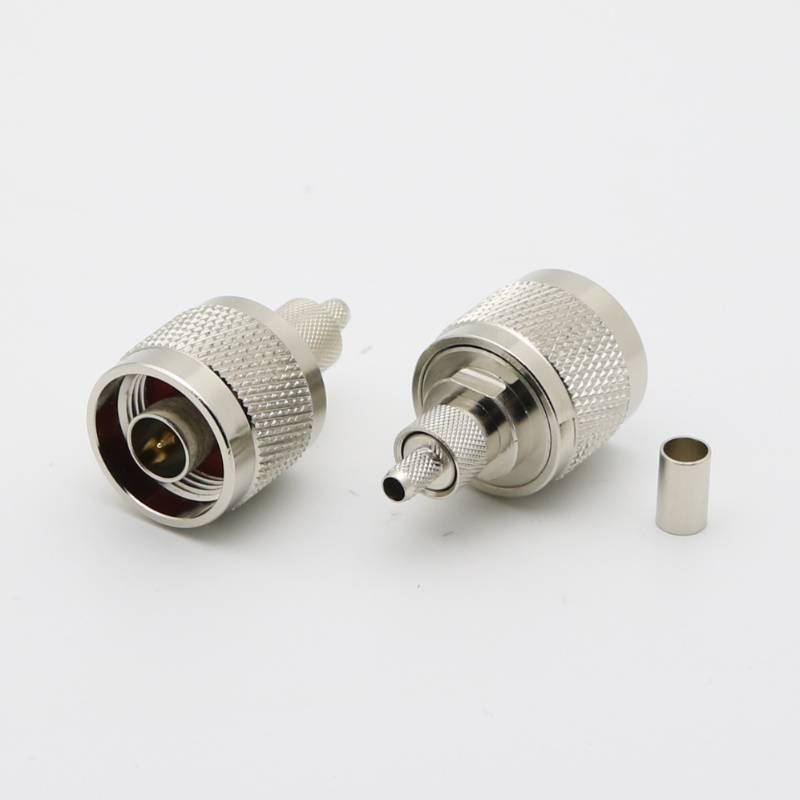

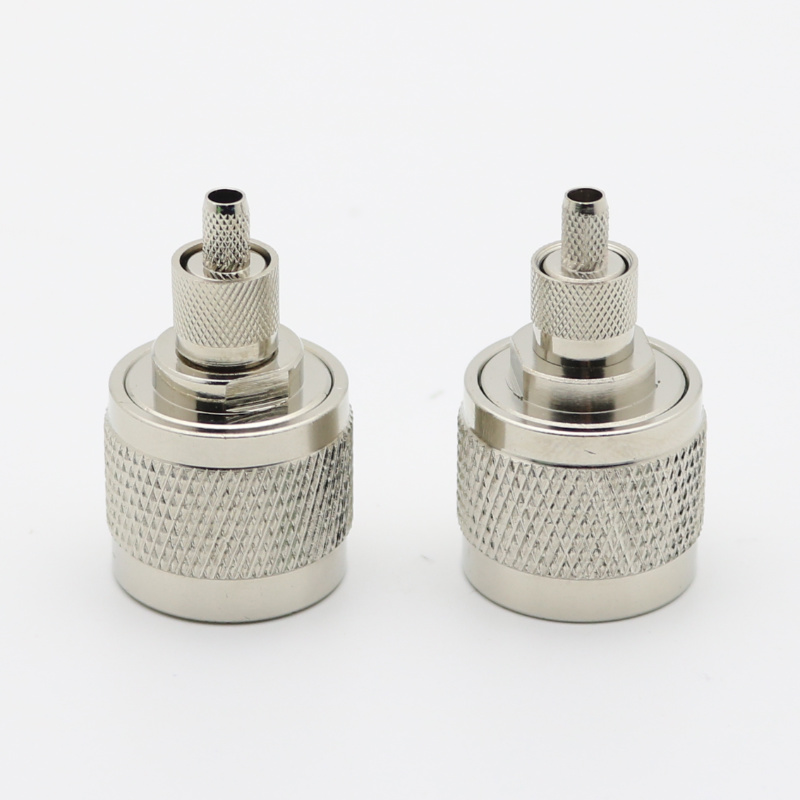

N Straight Crimp Plug SFF-50-2-2 SYV-50-2-2 50 Ohm XMRN1

  • N-C-J2

  • XMRN1

  • SFF-50-2-2 SYV-50-2-2

Availability:
Quantity:
Inquire Add to Basket

Product Description


N-C-J-2 XMRN1


Name

 N Straight Crimp Plug SFF-50-2-2 SYV-50-2-2 50 Ohm

Model

 N-C-J2

Body Finish

Nickel

Body Material

Brass

Cable Type

 SFF-50-2-2 SYV-50-2-2

Contact Finish

Gold

Contact Material

Brass

Contact Termination

Crimp

Coupling Mechanism

Threaded

Frequency (Max GHz)

11

Gender

Plug

Impedance (Ohms)

50

Insulator Material

PTFE

Orientation

Straight

Panel Mounting Feature

Not Applicable

Ports

1 (Single Port)

Size Category

Standard

Temp (Max Degrees Celsius)

165

Temp (Min Degrees Celsius)

-65

Termination Style

Cable - Crimp

Thread Direction

Standard
