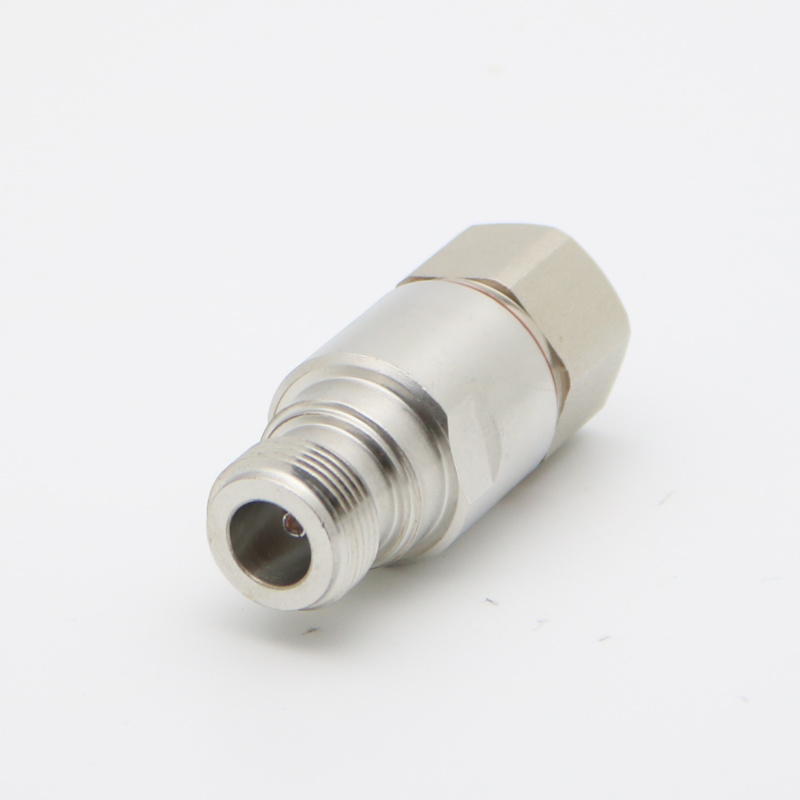

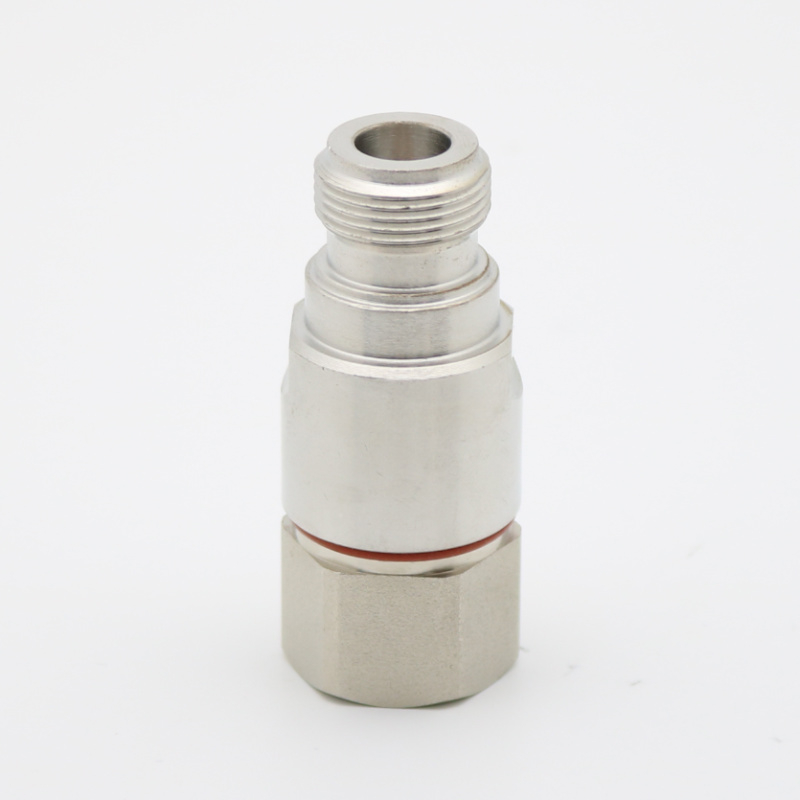

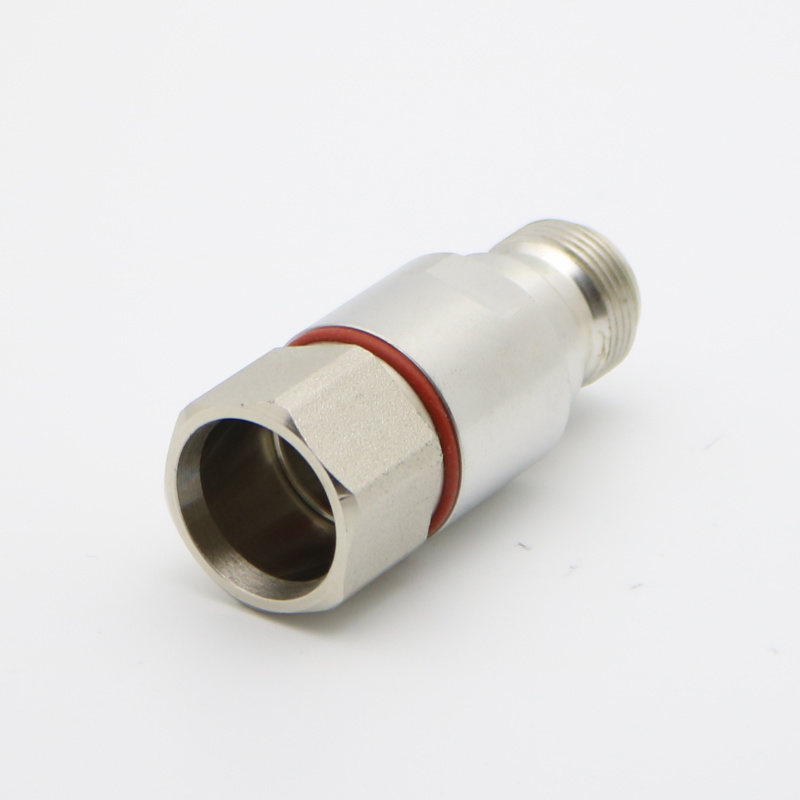

N Straight Jack Solderless XMRN20

  • N-K12

  • XMRN20

Availability:
Quantity:
Inquire Add to Basket

Product Description

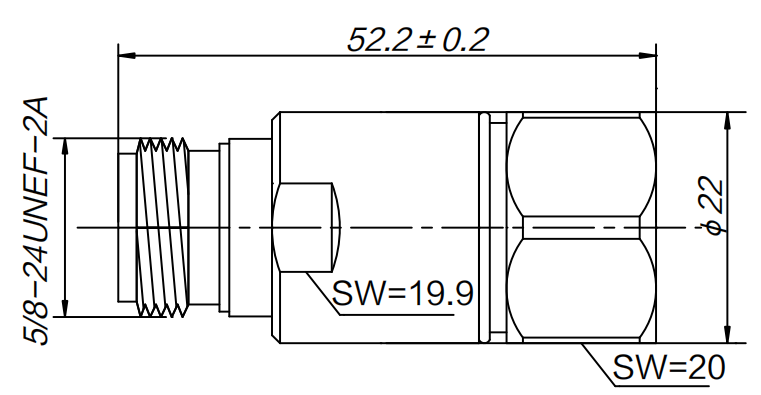

XMRN20


Name

 N Straight Jack Solderless

Model

 XMRN20

Body Finish

Nickel

Body Material

Brass

Contact Termination

Solderless

Coupling Mechanism

Threaded

Frequency (Max GHz)

11

Gender

Jack

Impedance (Ohms)

50

Insulator Material

PCTFE

Orientation

Straight

Customization

Acceptable

Ports

1 (Single Port)

Size Category

Standard

Temp (Max Degrees Celsius)

165

Temp (Min Degrees Celsius)

-65

SAMPLES

FREE
