N-JB5
XMRN17
250 semi-rigid 250 Semi-flexible RG401 ZLC700
| Quantity: | |
|---|---|
Product Description

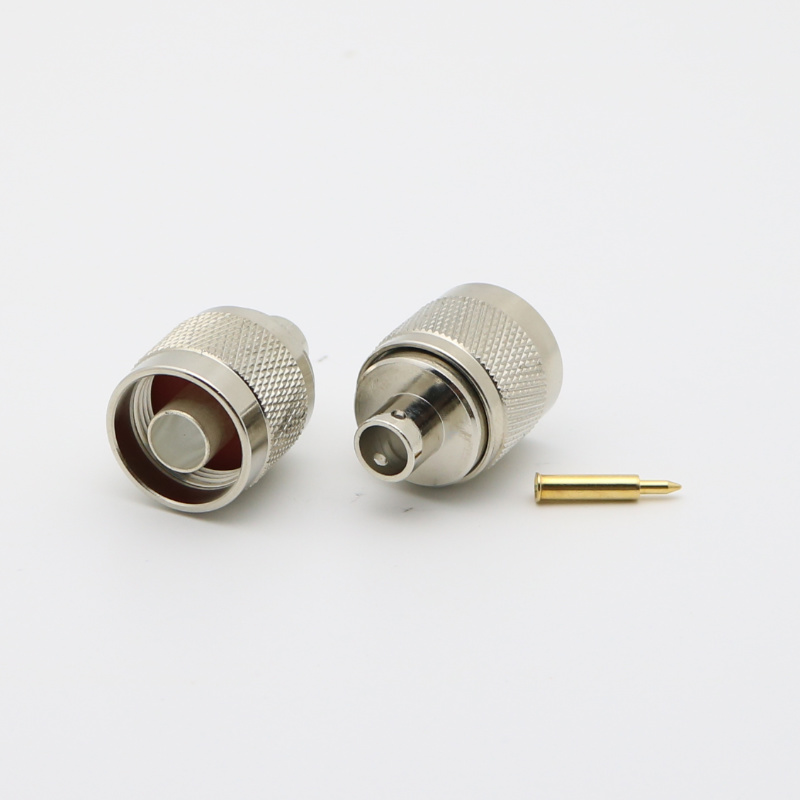

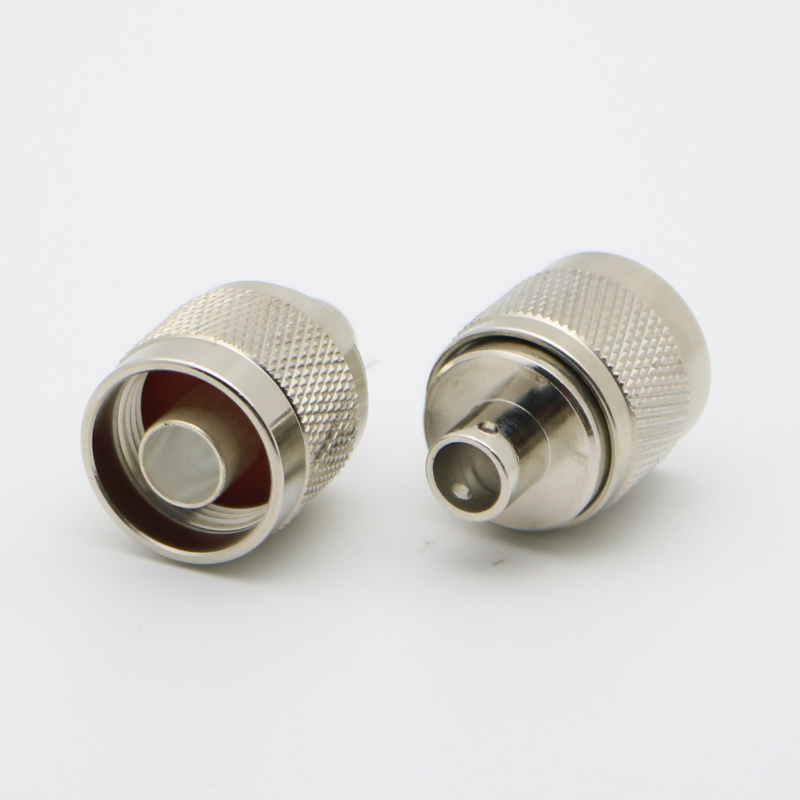

Name | N Straight Plug 250 semi-rigid 250 Semi-flexible RG401 ZLC700 |
Model | XMRN17 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | 141 semi-rigid 141 Semi-flexible RG402 ZLC400 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 11 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Solder |
Thread Direction | Standard |
