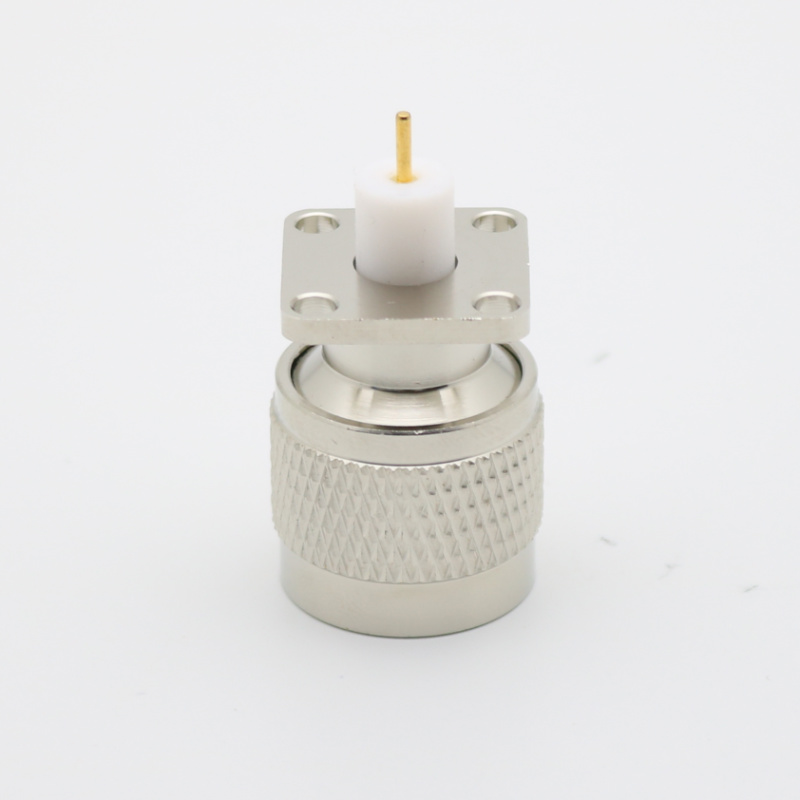

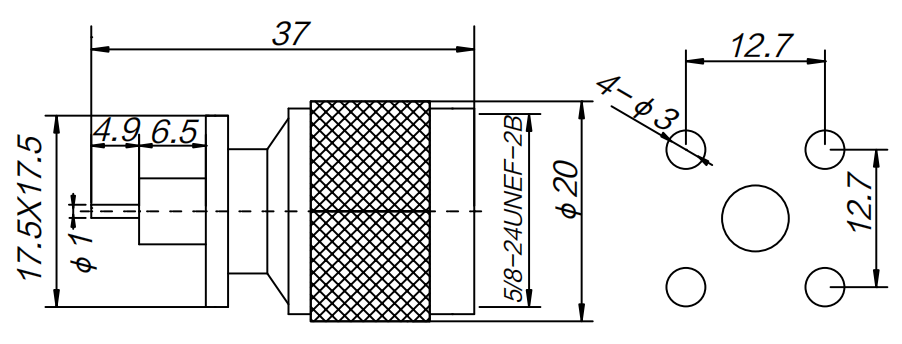

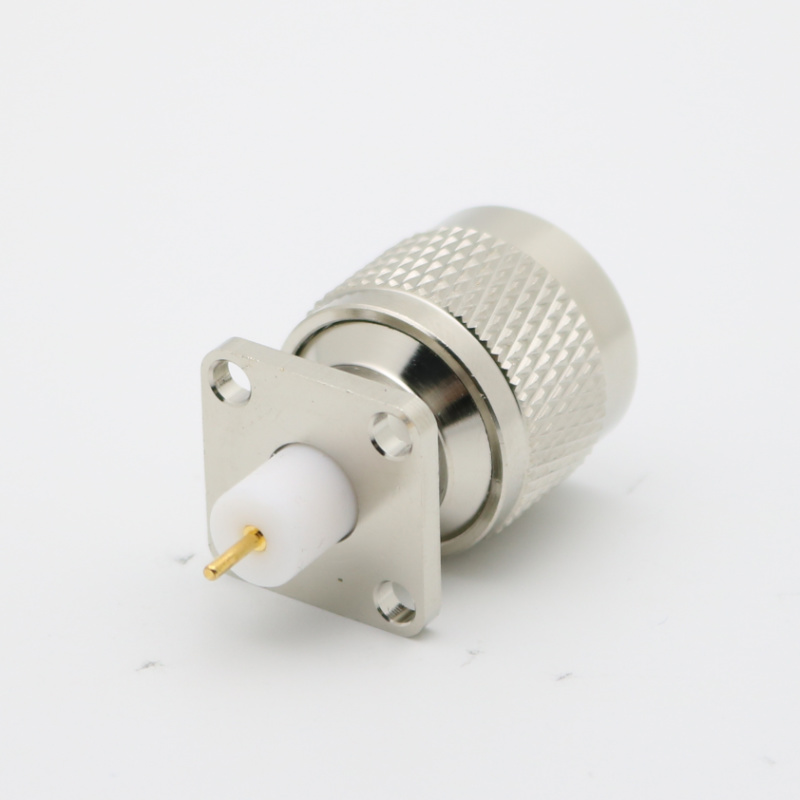

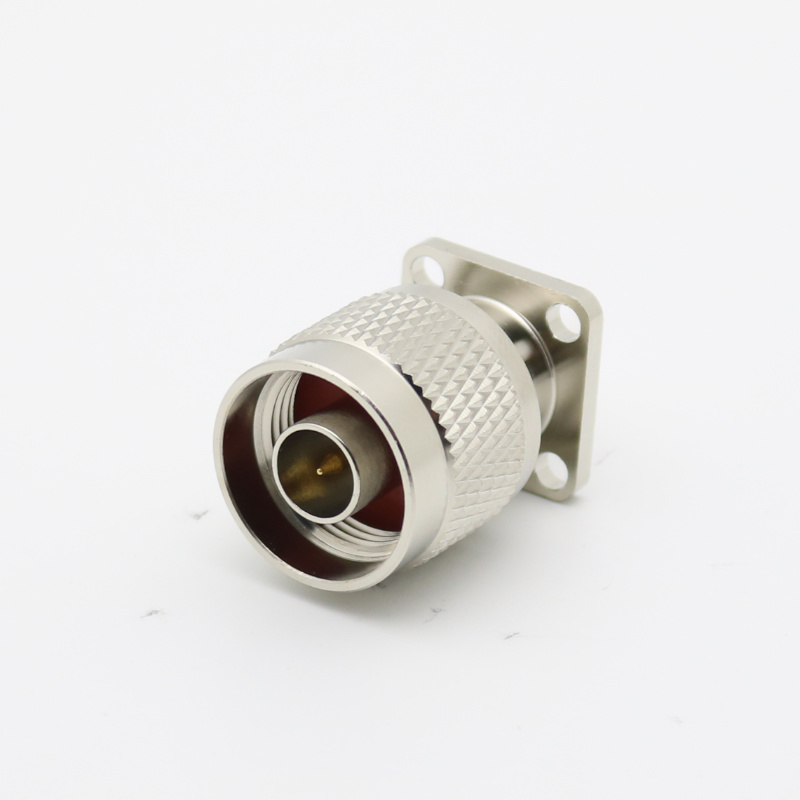

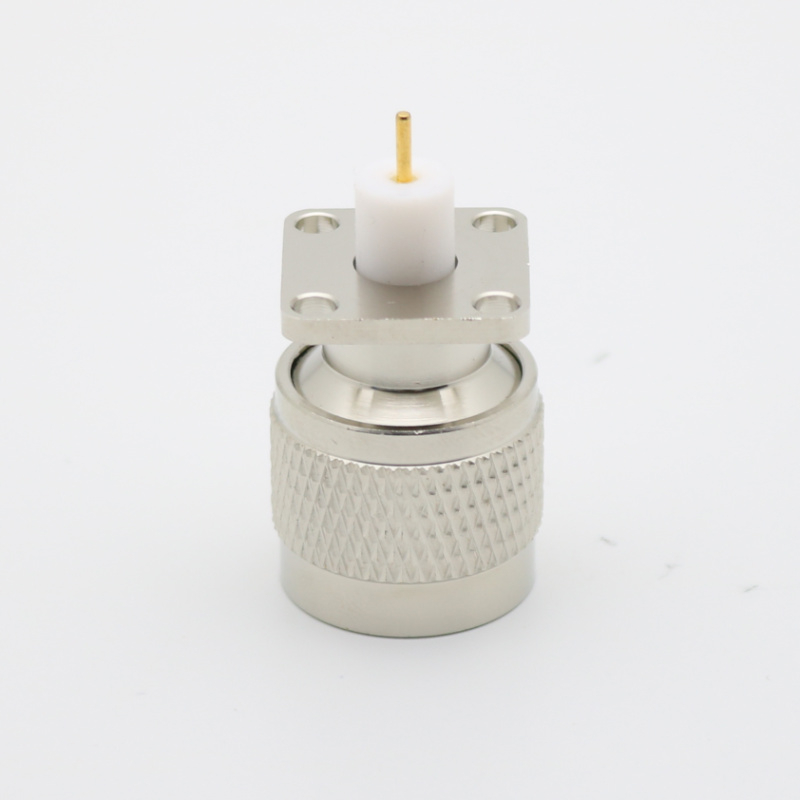

N Straight Plug 4-Hole Flange XMRN18

  • N-JFD27

  • XMRN18

Availability:
Quantity:
Inquire Add to Basket

Product Description


XMRN18


Name

 N Straight Plug 4-Hole Flange

Model

 XMRN18

Body Finish

Nickel

Body Material

Brass

Contact Finish

Gold

Contact Material

Brass

Contact Termination

Solder

Coupling Mechanism

Threaded

Frequency (Max GHz)

11

Gender

Plug

Impedance (Ohms)

50

Insulator Material

PCTFE

Orientation

Straight

Customization

Acceptable

Ports

1 (Single Port)

Size Category

Standard

Temp (Max Degrees Celsius)

165

Temp (Min Degrees Celsius)

-65

Panel Mounting

4-Hole Flange

SAMPLES

FREE
