Product Description

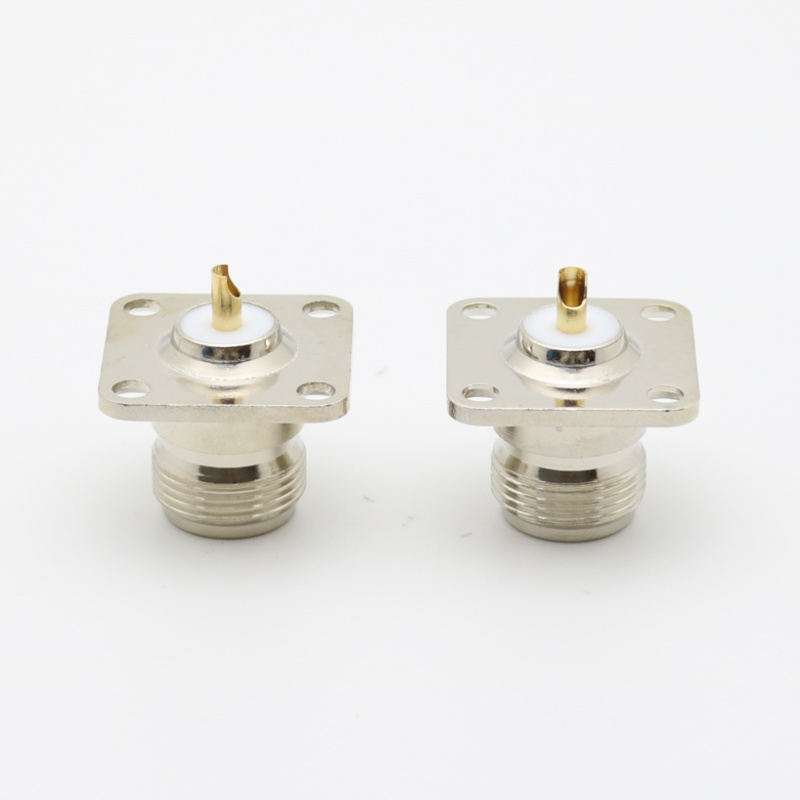

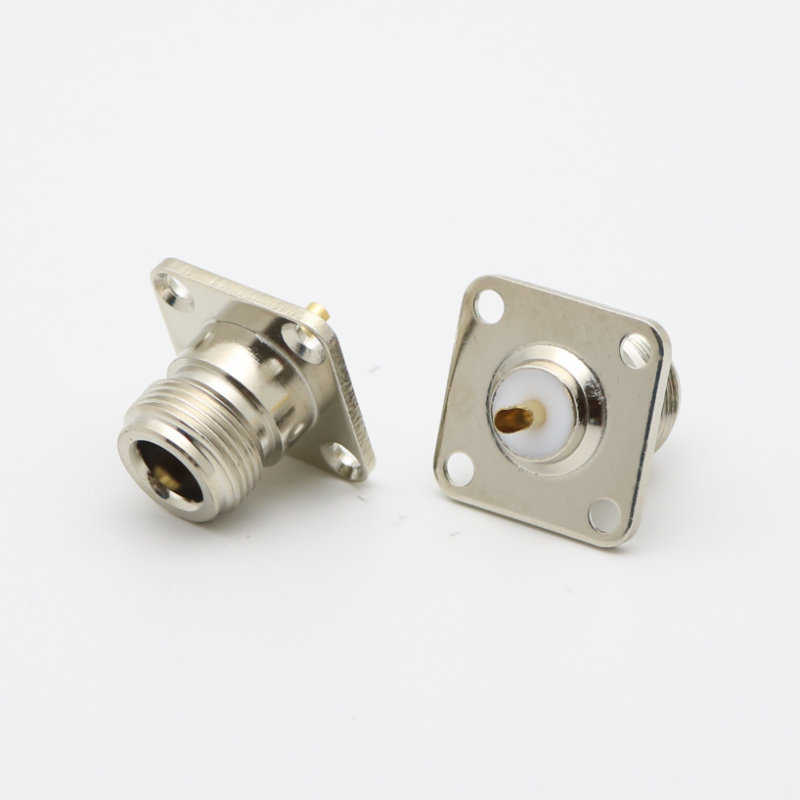

Name | N-Type Panel Mount Jack 75 Ohm |
Model | XMRN28 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type (Terminates to) | Not Applicable |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Gender | Jack |
Impedance (Ohms) | 75 |
Insulator Material | PCTFE |
Orientation | Straight |
Panel Mounting Feature | 4-Hole Flange |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Thread Direction | Standard |
