N-J7
XIAO MA
XMRN10
LMR400 CNT400 7D-FB RG8
| Quantity: | |
|---|---|
Product Description

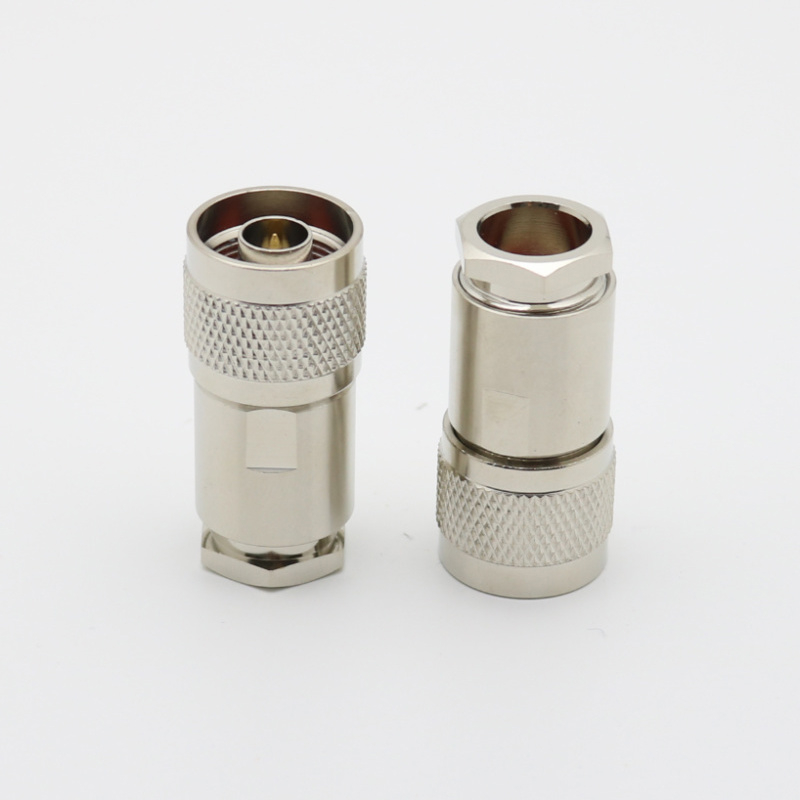

Name | N-Type Straight Clamp Plug LMR400 CNT400 7D-FB RG8 |

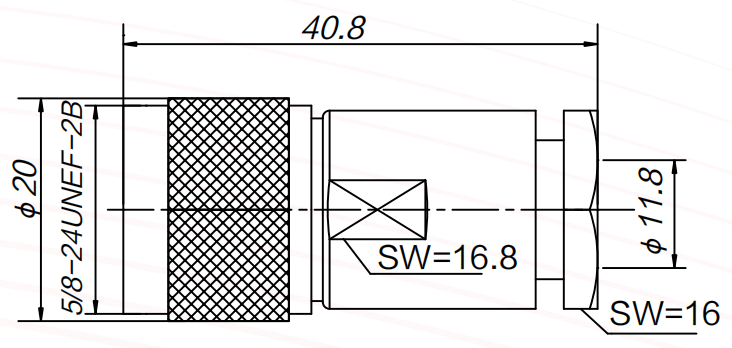

Model | XMRN10 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | LMR400 CNT400 7D-FB RG8 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Customization | Accepta le |
Frequency (Max GHz) | 11 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Orientation | Straight |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Clamp |
Thread Direction | Standard |
