Product Description

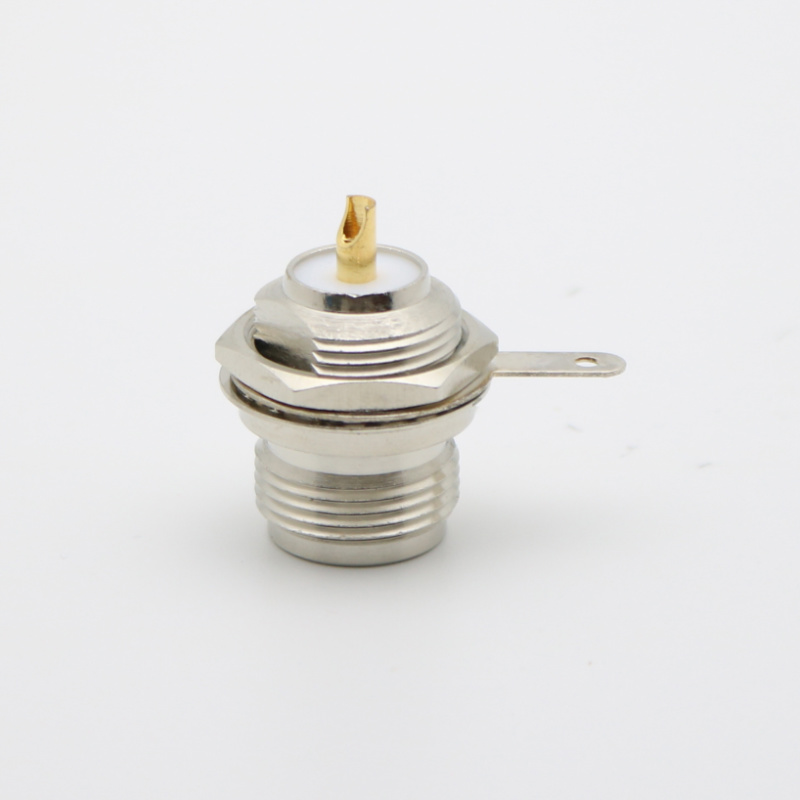

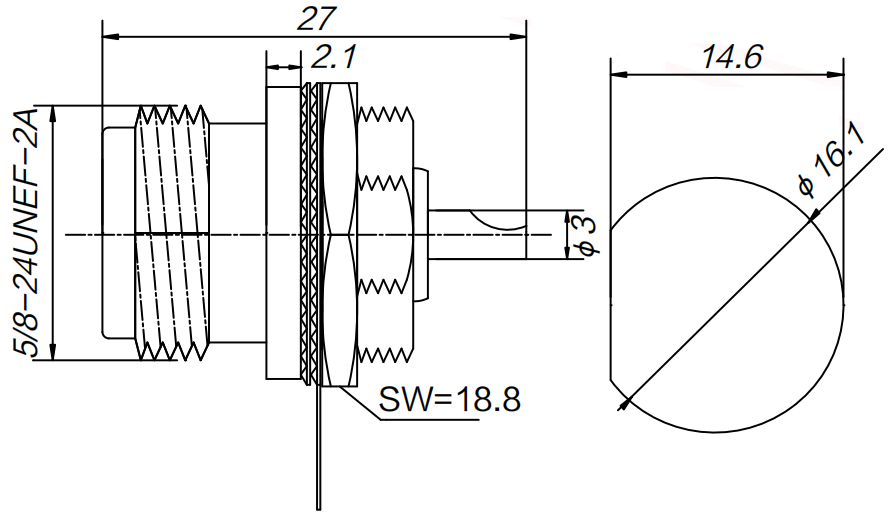

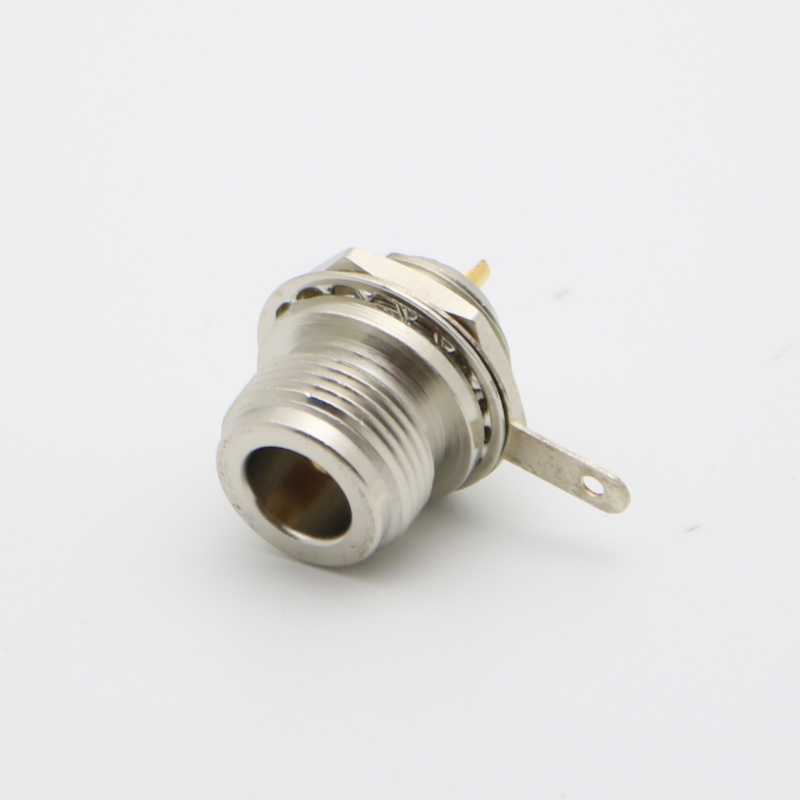

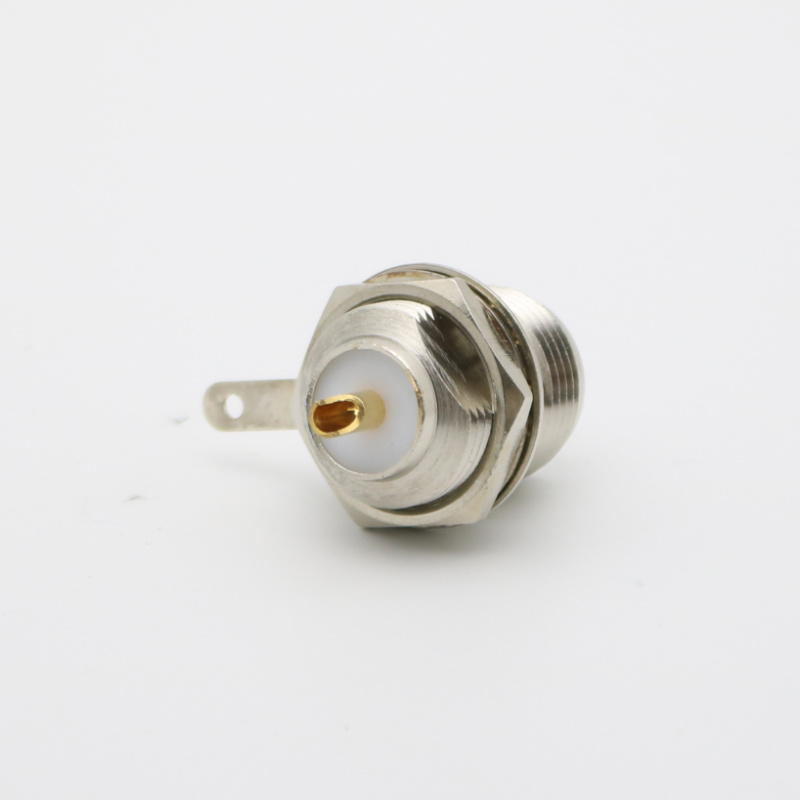

Name | N-Type Straight Jack Solder Cup Bulkhead |
Model | XMRN33 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type (Terminates to) | Not Applicable |
Contact Finish | Gold |
Contact Material | Phosphor Bronze |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 11 |
Gender | Jack |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Orientation | Straight |
Panel Mounting Feature | Bulkhead - Front Mount |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 85 |
Temp (Min Degrees Celsius) | -40 |
Termination Style | Solder Cup |
Thread Direction | Standard |
