N-C-KY3
XIAO MA
XMRN8
LMR100 RG316 RG174 SFF-50-1.5
| Quantity: | |
|---|---|
Product Description

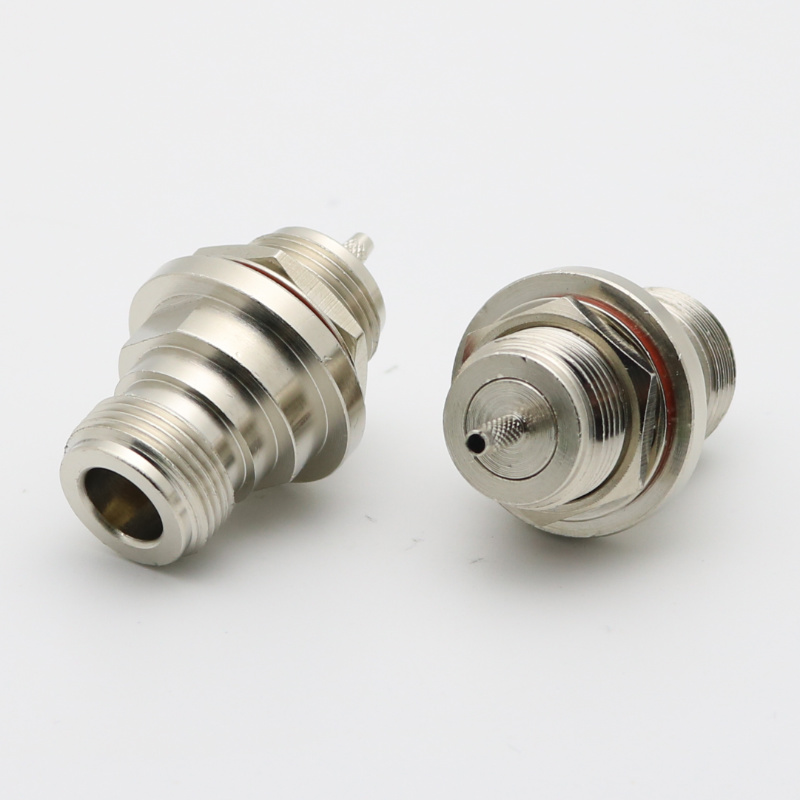

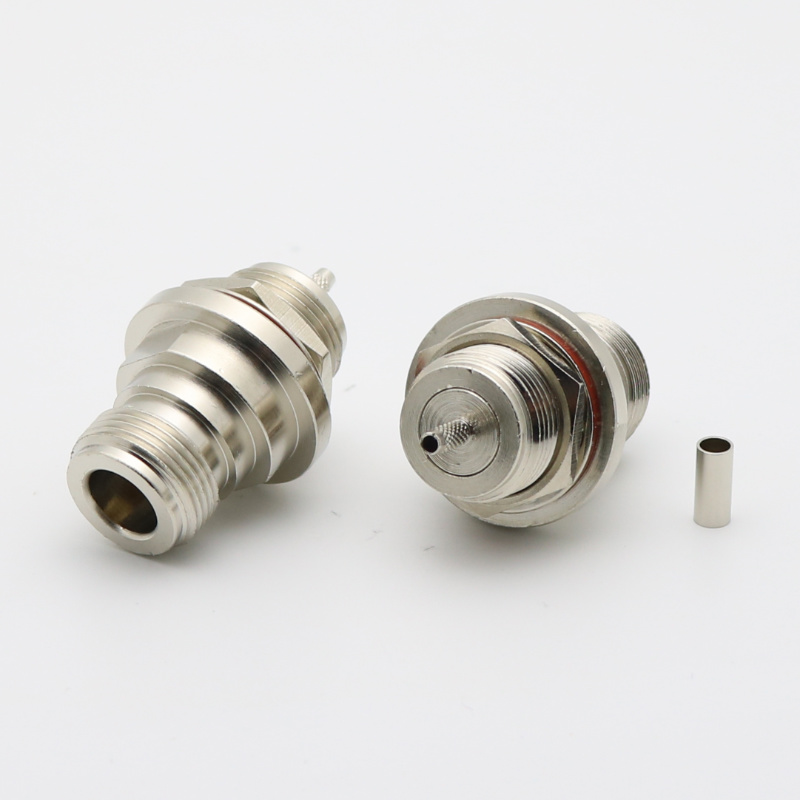

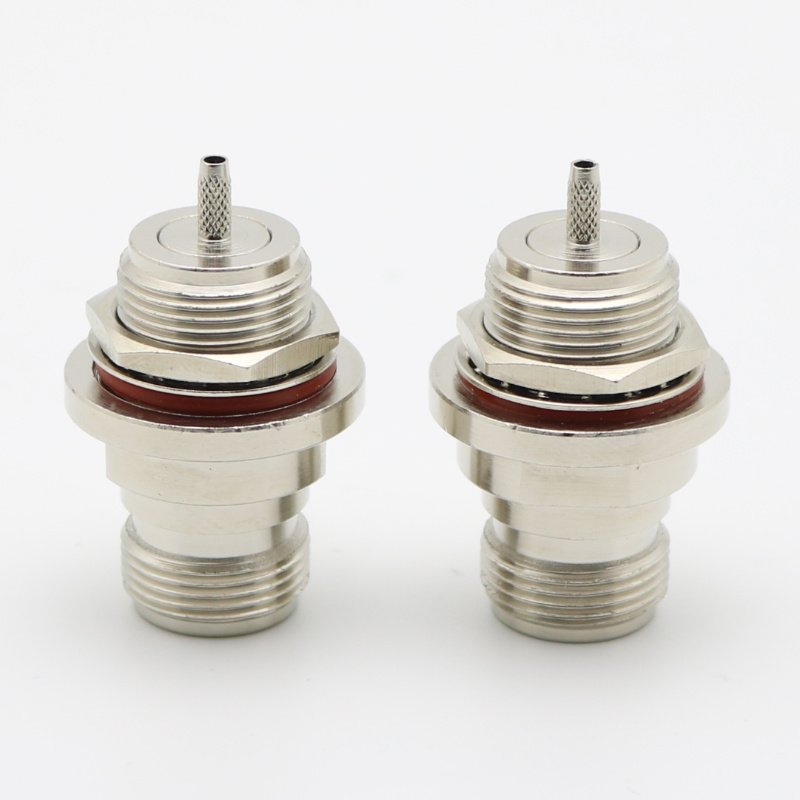

Name | N Waterproof Straight Crimp Jack LMR100 RG316 RG174 SFF-50-1.5 |

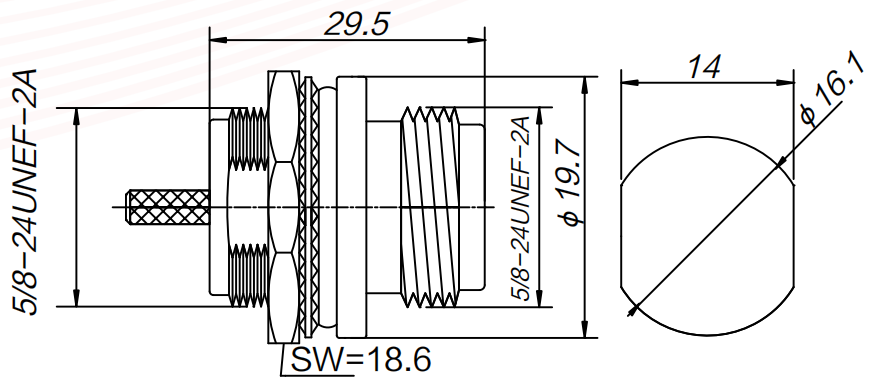

Model | XMRN8 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | LMR100 RG316 RG174 SFF-50-1.5 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Crimp |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 11 |
Gender | Jack |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
