Product Description
Name |

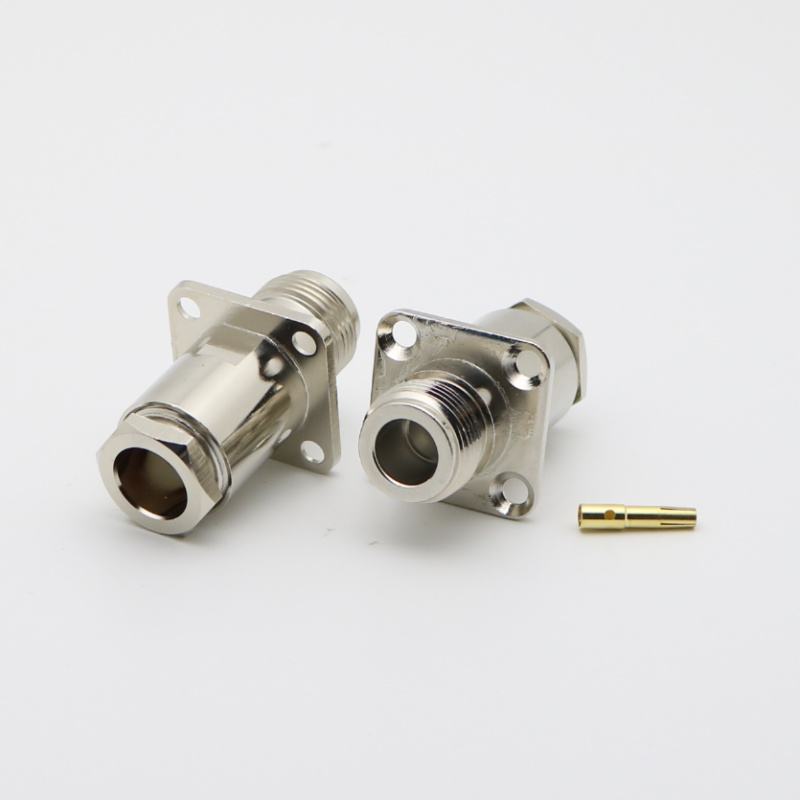

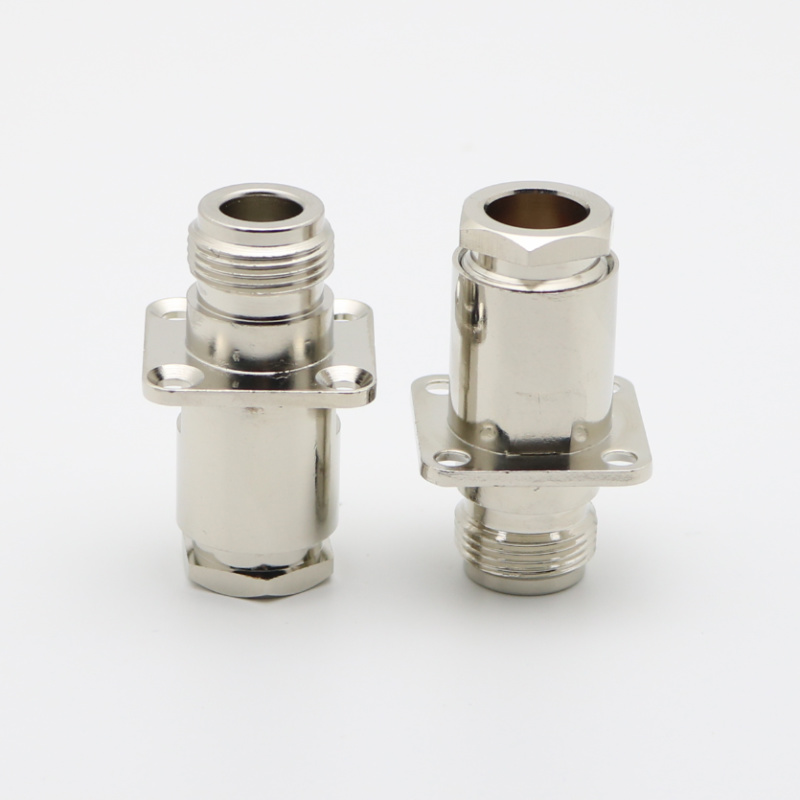

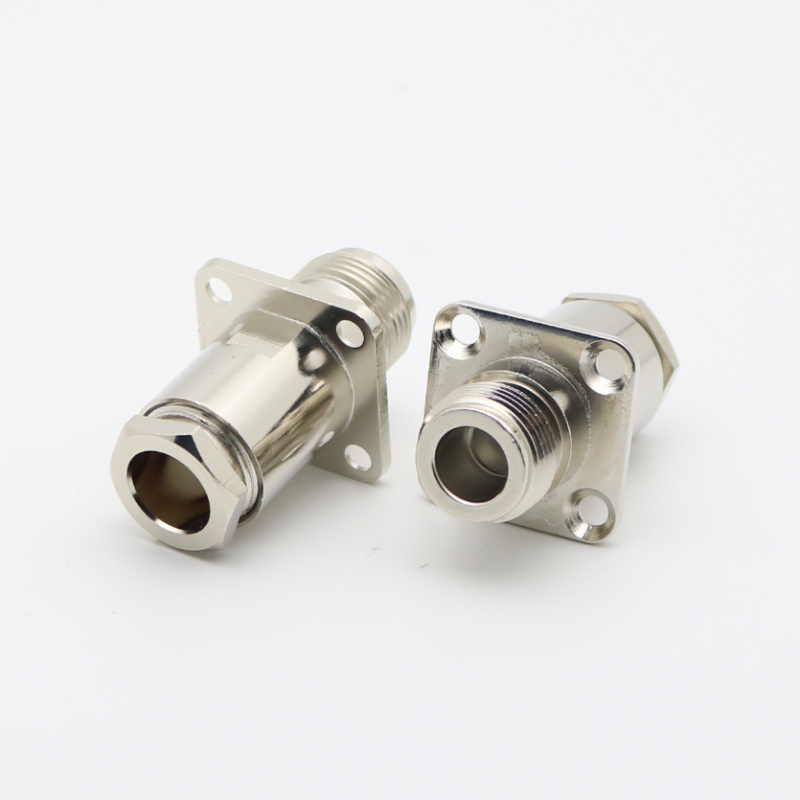

N-type 4-hole Flange Mount |
Model |
XMRN29 |
Body Finish |
Nickel |
Body Material |
Brass |
Cable Type (Terminates to) |
Not Applicable |
Contact Finish |
Gold |
Contact Material |
Brass |
Contact Termination |
Solder |
Coupling Mechanism |
Threaded |
Gender |
Jack |
Impedance (Ohms) |
75 |
Insulator Material |
PCTFE |
Orientation |
Straight |
Panel Mounting Feature |
4-Hole Flange |
Ports |
1 (Single Port) |
Temp (Max Degrees Celsius) |
165 |
Temp (Min Degrees Celsius) |
-65 |
Thread Direction |
Standard |
