Product Description

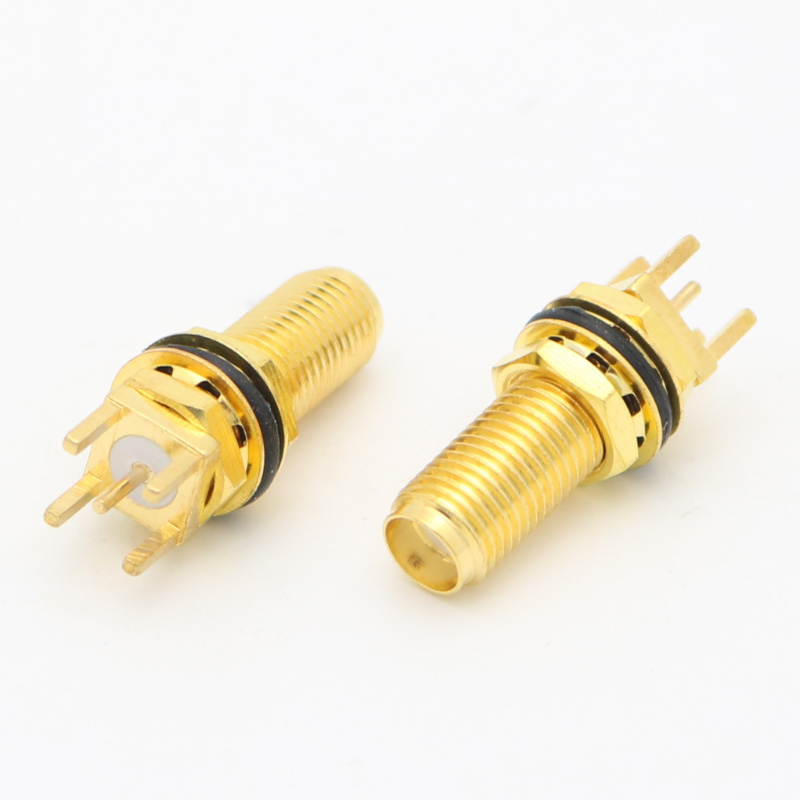

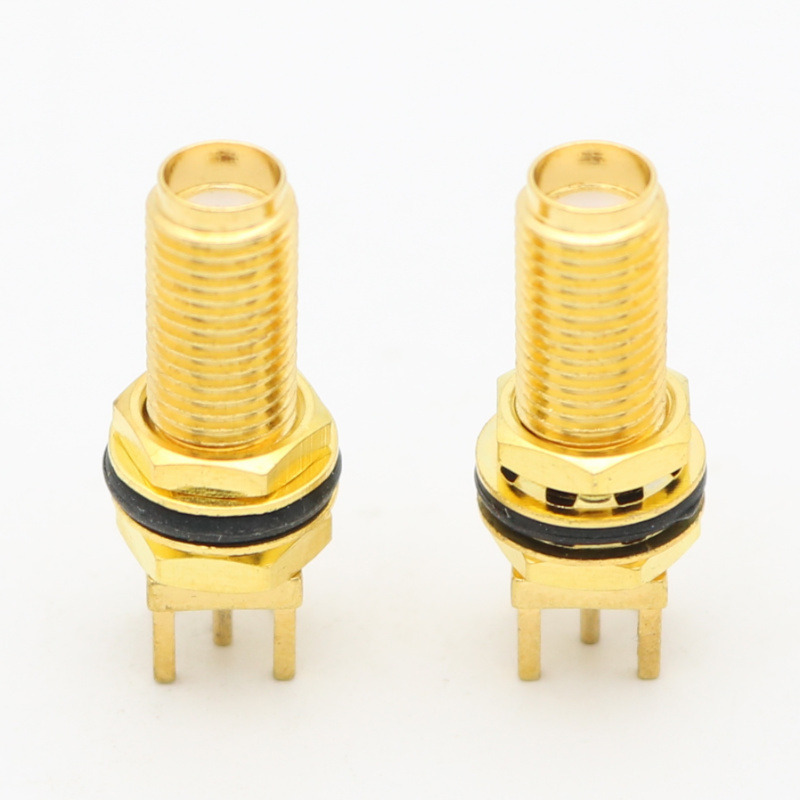

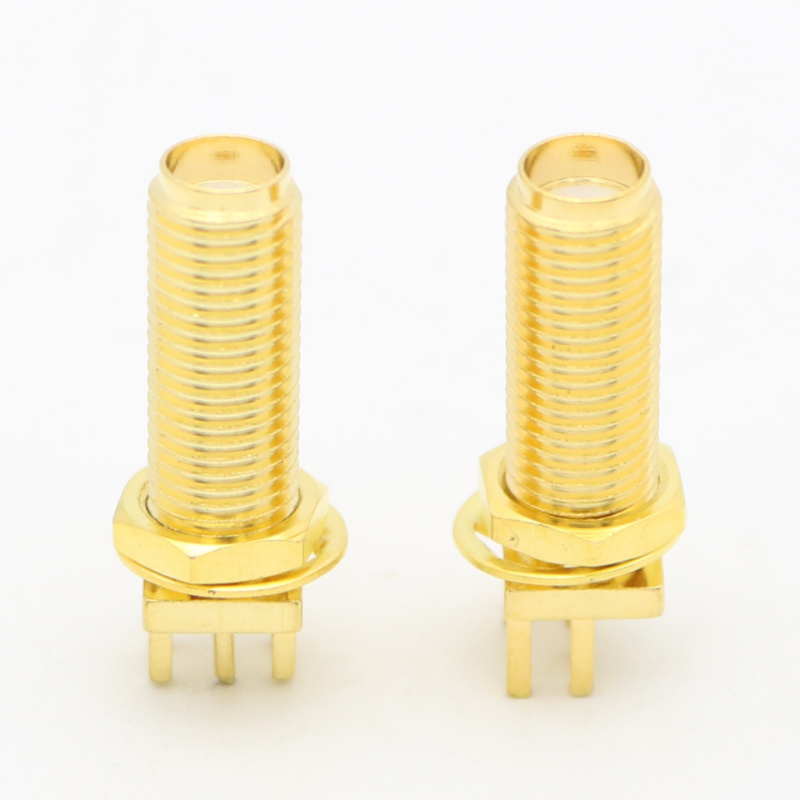

Name | SMA PCB End Launch Jack XMRSMA14 |
Model | XMRSMA14 |
Body Finish | Gold |
Body Material | Brass |
Cable Type | Not Applicable |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Gender | Jack |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | PCB - End Launch |
Thread Direction | Standard |
