SMA-KFD
XIAO MA
XMRSMA12
| Quantity: | |
|---|---|
Product Description

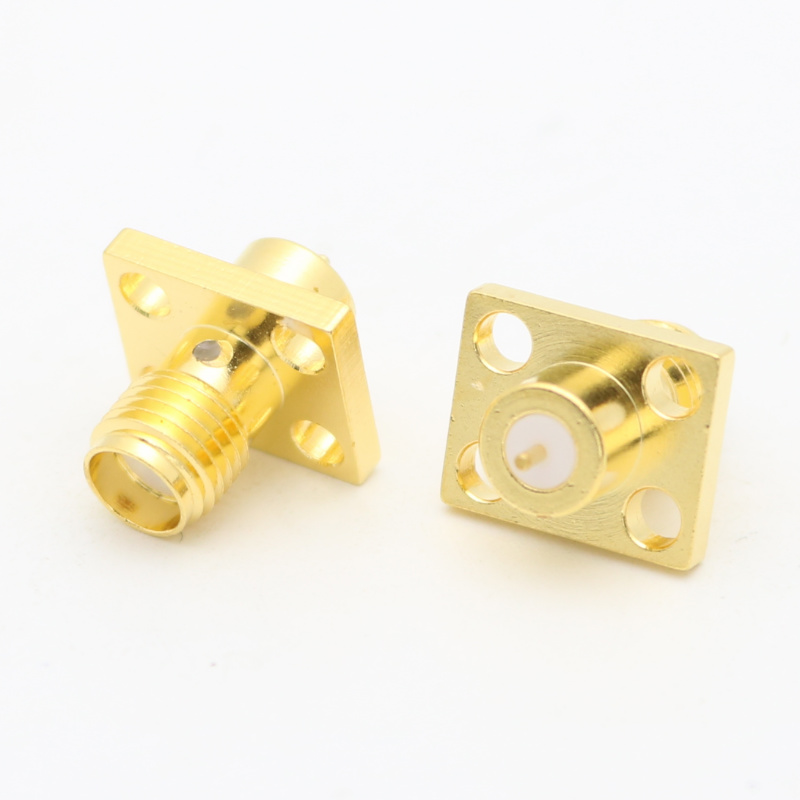

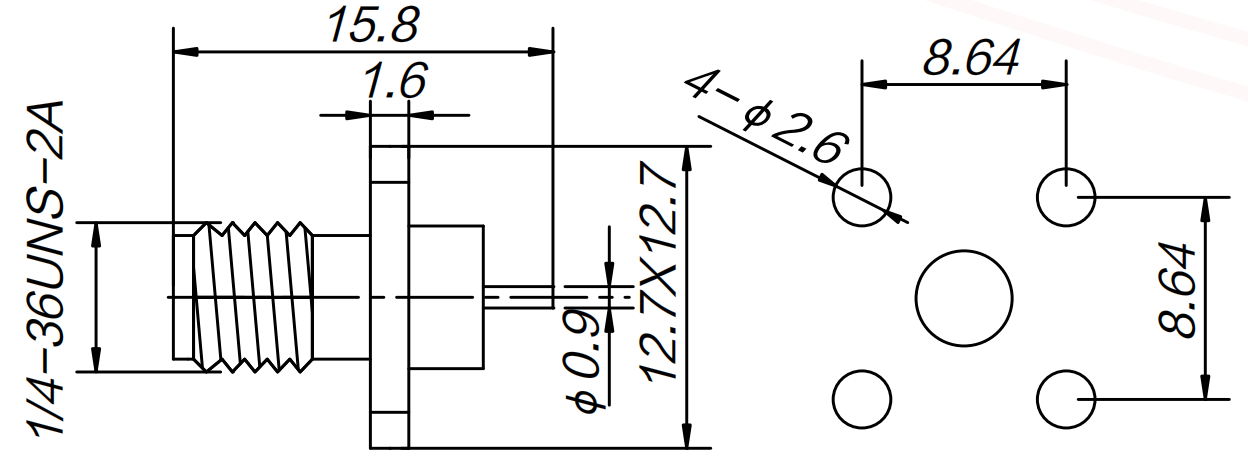

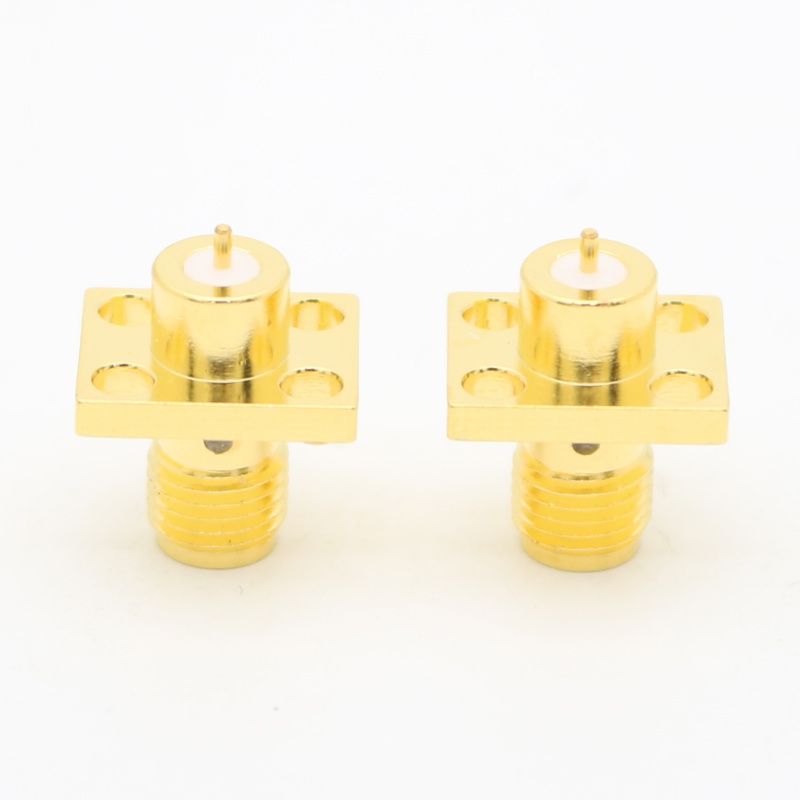

Name | SMA Panel Mount Jack 4-Hole Flange 50 Ohm |
Model | XMRSMA12 |
Body Finish | Gold |
Body Material | Brass |
Cable Type (Terminates to) | Not Applicable |
Contact Finish | Gold |
Contact Material | Beryllium Copper |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Gender | Jack |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Panel Mounting Feature | 4-Hole Flange |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Round Post |
Thread Direction | Standard |
