SMA-JW3
XIAO MA
XMRSMA9
LMR100 RG316 RG174 SFF-50-1.5
| Quantity: | |
|---|---|
Product Description

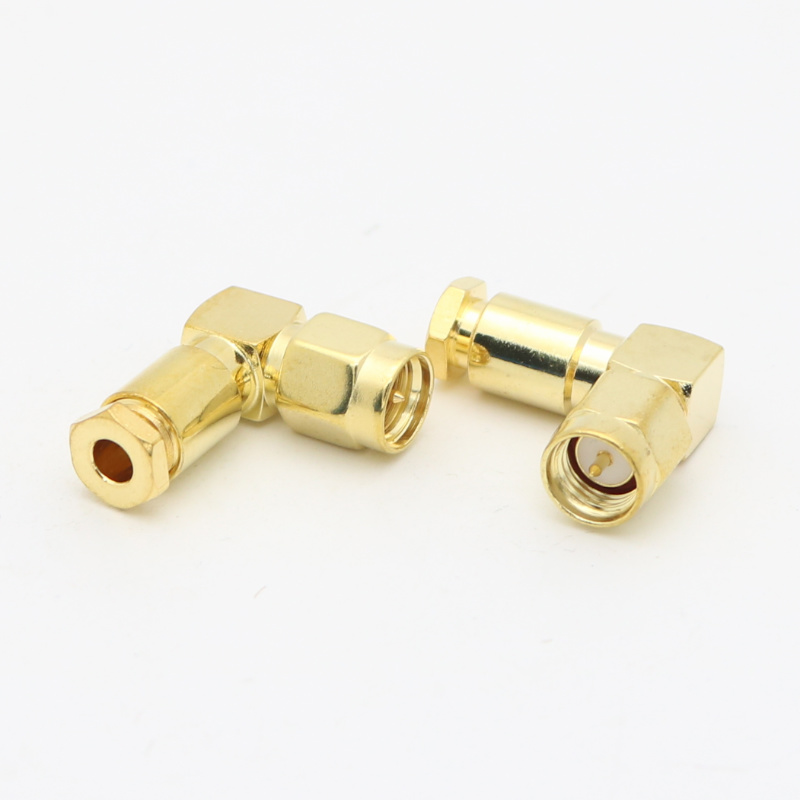

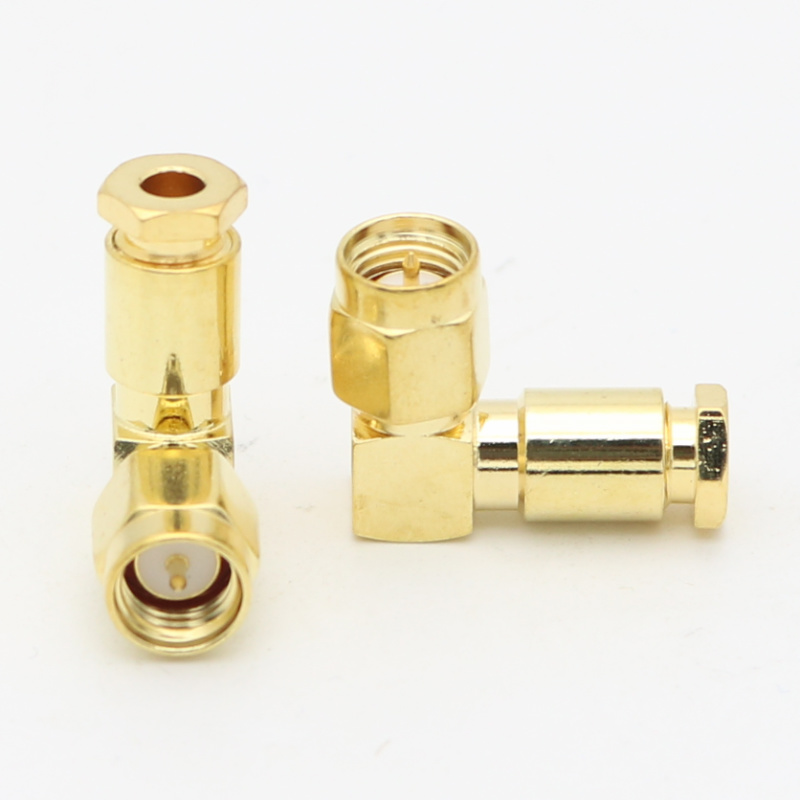

Name | SMA Right Angle Clamp Plug LMR100 RG316 RG174 SFF-50-1.5 |
Model | XMRSMA9 |
Body Finish | Gold |
Body Material | Brass |
Cable Type | LMR100 RG316 RG174 SFF-50-1.5 |
Contact Finish | Gold |
Contact Material | Beryllium Copper |
Contact Termination | Crimp |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 12.4 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Right Angle |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Clamp |
Thread Direction | Standard |
