SMA-C-JW-3
XIAO MA
XMRSMA3
LMR195 CNT195 RG58 RG233 RG142 RG400
| Quantity: | |
|---|---|
Product Description

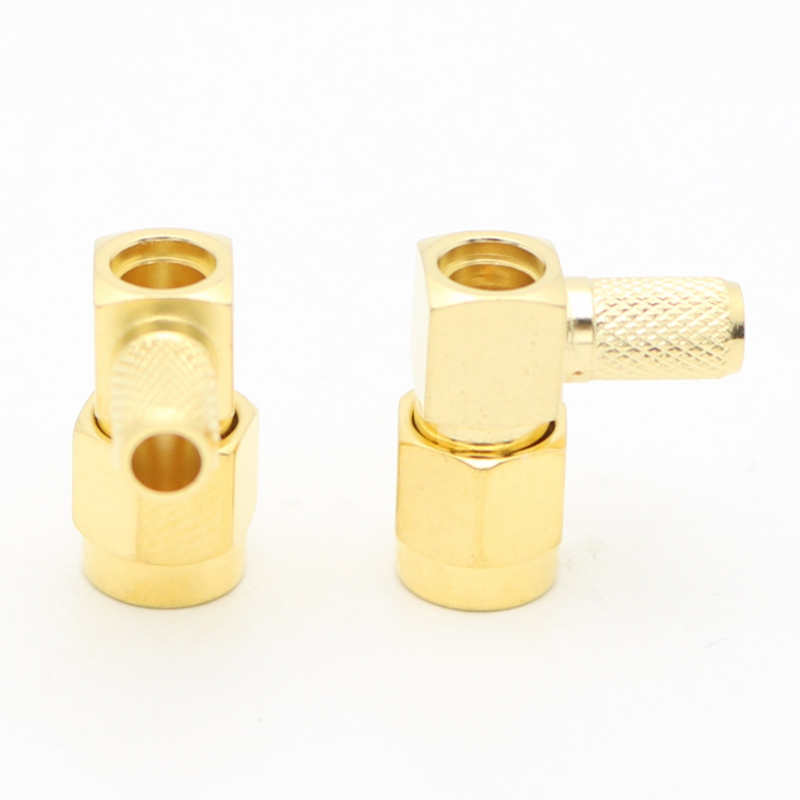

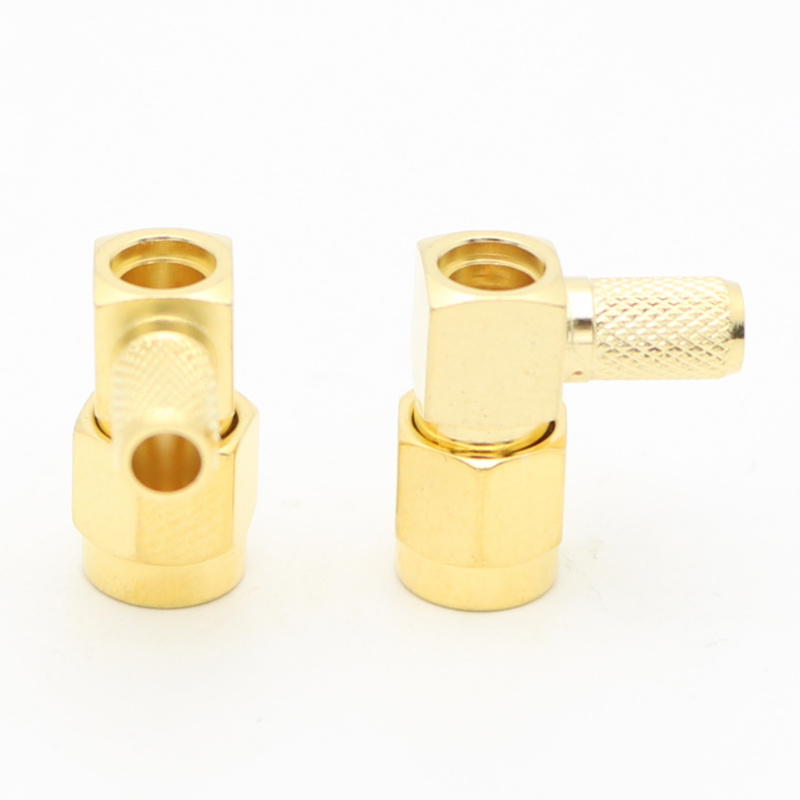

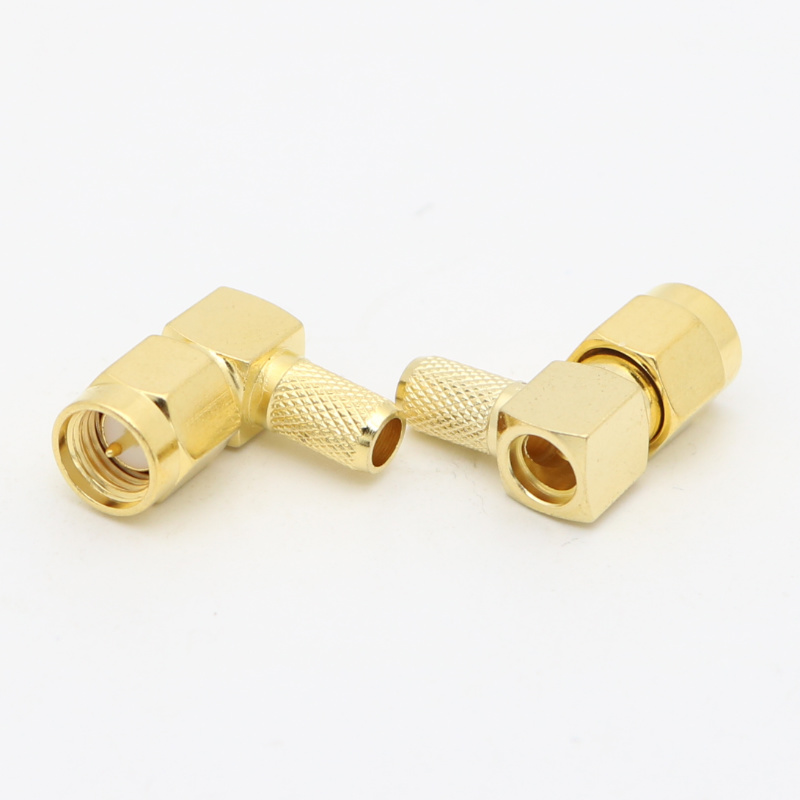

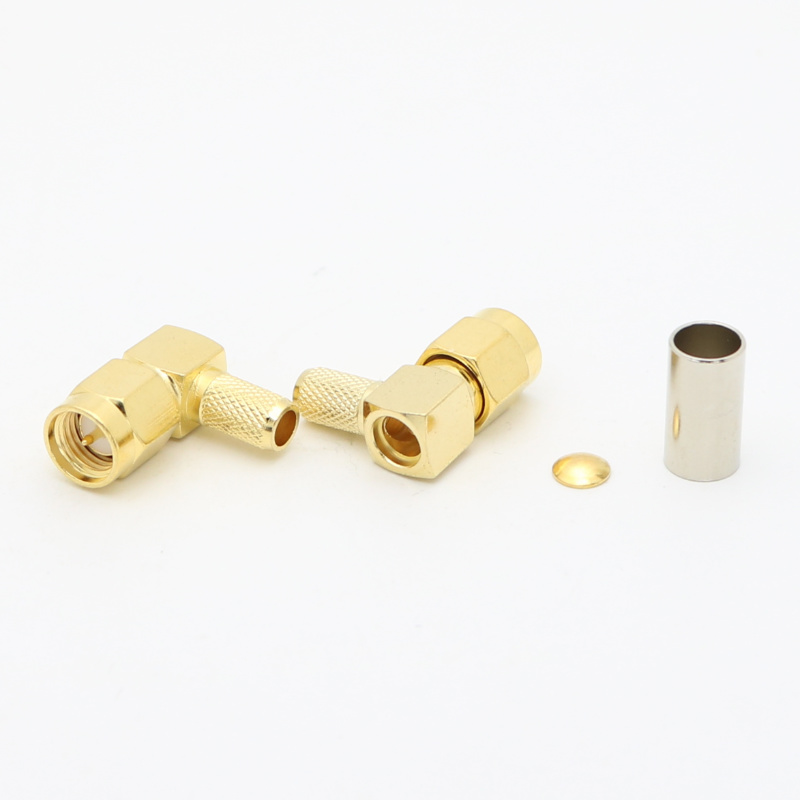

Name | SMA Right Angle Crimp Plug LMR195 CNT195 RG58 RG233 RG142 RG400 |
Model | XMRSMA3 |
Body Finish | Gold |
Body Material | Brass |
Cable Type | LMR195 CNT195 RG58 RG233 RG142 RG400 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 12.4 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Right Angle |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
