SMA-JWB2
XIAO MA
XMRSMA10
08 Semirigid 086 semiflexible RG405 ZLC260
| Quantity: | |
|---|---|
Product Description

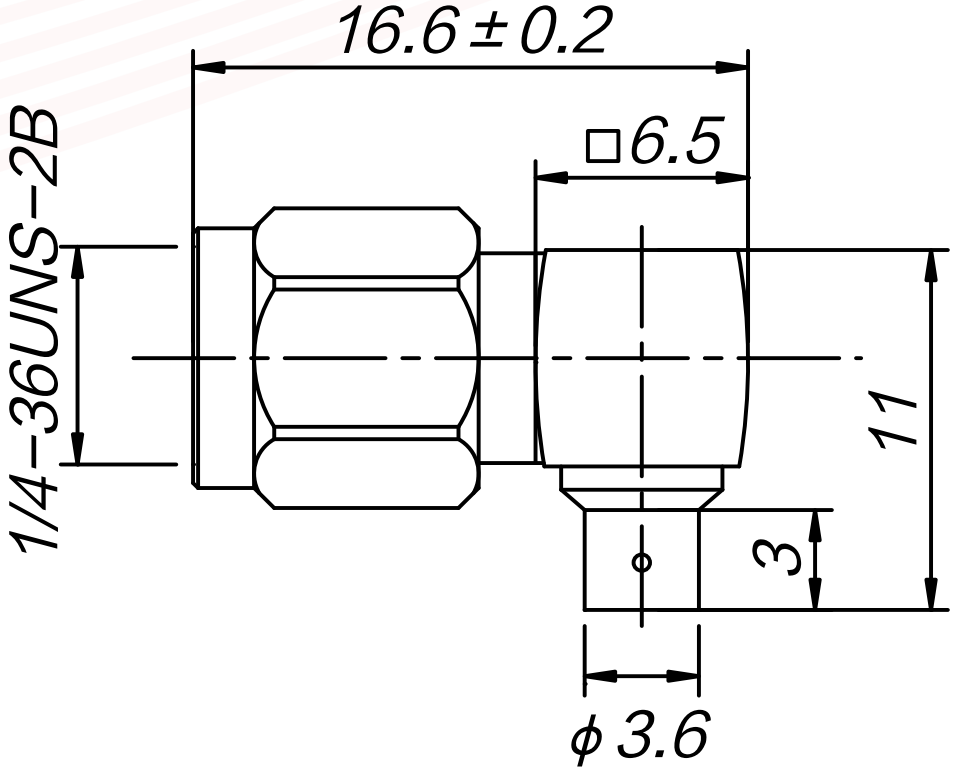

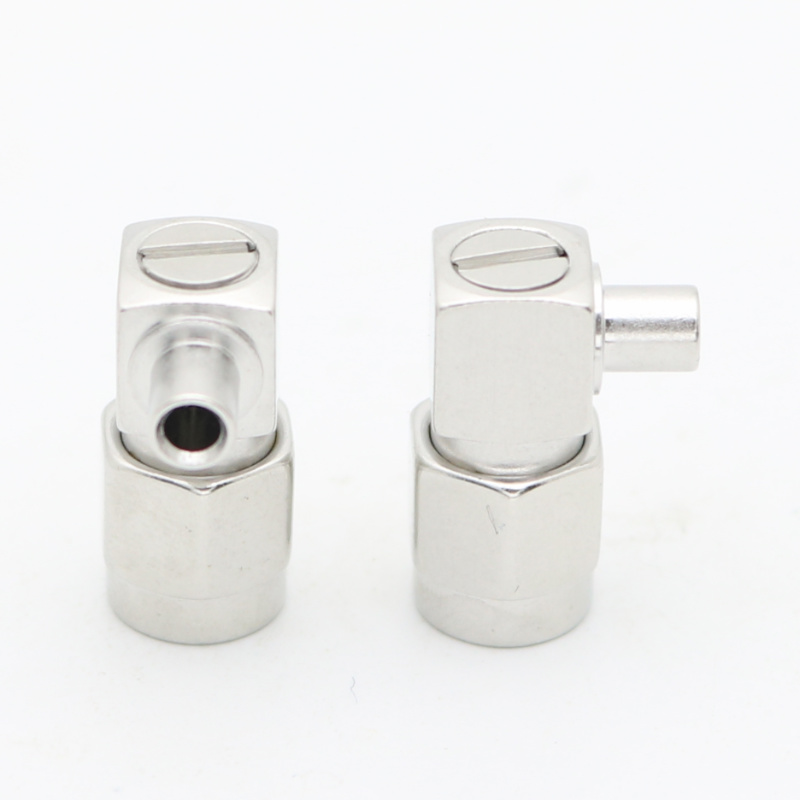

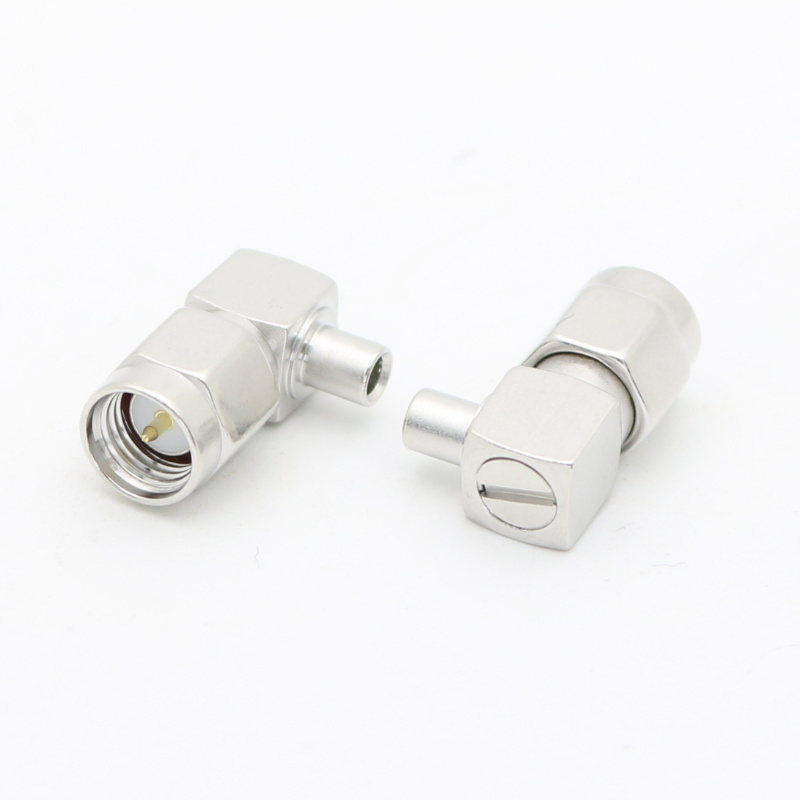

Name | SMA Right Angle Solder 08 Semirigid 086 semiflexible RG405 ZLC260 |
Model | XMRSMA10 |
Body Finish | Gold |
Body Material | Brass |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
| Cable | 08 Semirigid 086 semiflexible RG405 ZLC260 |
| Frequency (Max GHz) | 18 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Orientation | Right Angle |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Solder |
Thread Direction | Standard |
