SMA-C-KY1
XIAO MA
XMRSMA13
| Quantity: | |
|---|---|
Product Description

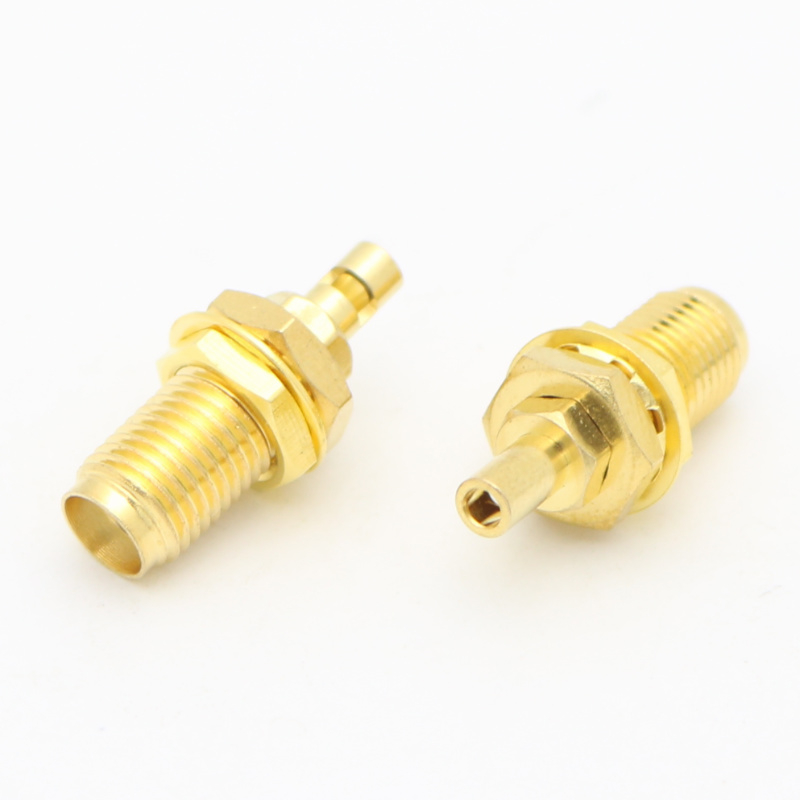

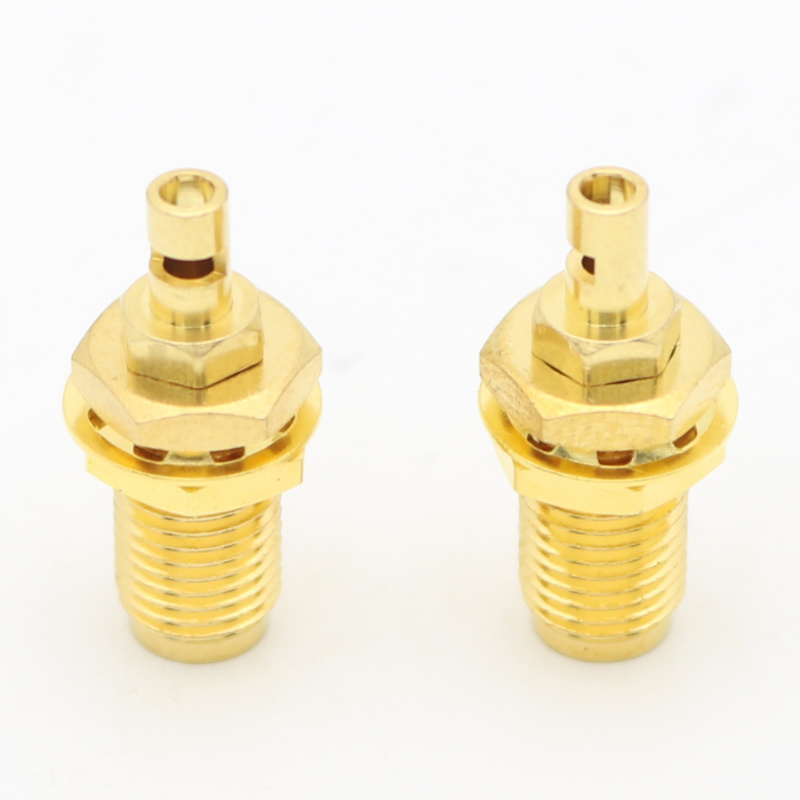

Name | SMA Straight Crimp Jack 1.32 mm Micro-cable Bulkhead 50 Ohm |
Model | XMRSMA13 |
Body Finish | Gold |
Body Material | Brass |
Cable Type (Terminates to) | 1.32 mm Micro-cable |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Gender | Jack |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Panel Mounting Feature | Bulkhead |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
