SMB-C-75KY3
XIAO MA
XMRSMB3
RG-178
| Quantity: | |
|---|---|
Product Description

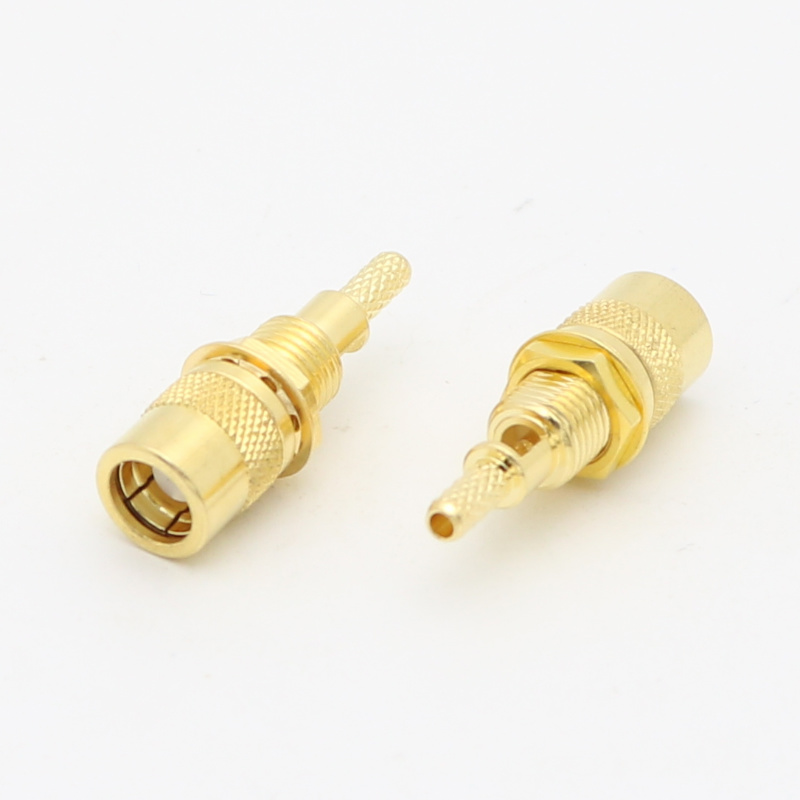

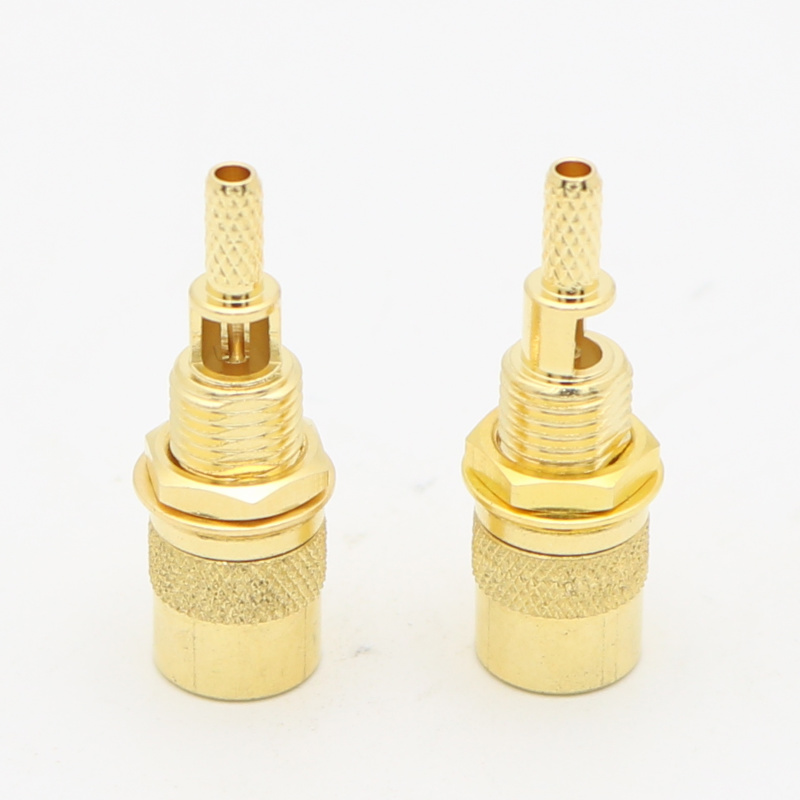

SMB Straight Crimp Plug RG-178 75ohm | |
Model | XMRSMB3 |
Body Finish | Gold |
Body Material | Brass |
Cable Type (Terminates to) | RG-178 |
Contact Finish | Gold |
Contact Material | Beryllium Copper |
Contact Termination | Solder |
Coupling Mechanism | Push-on |
Frequency (Max GHz) | 4 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Panel Mounting Feature | Not Applicable |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
