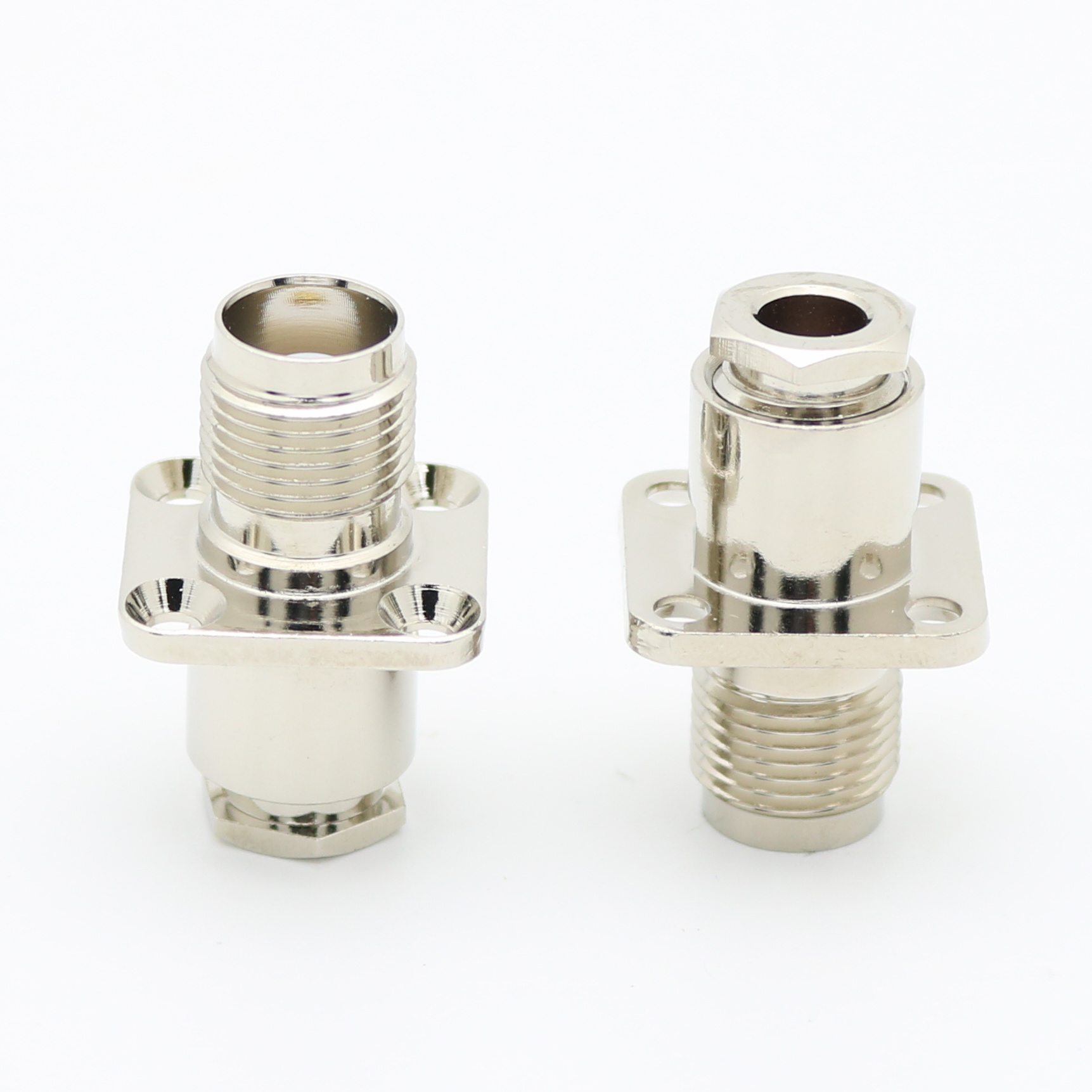

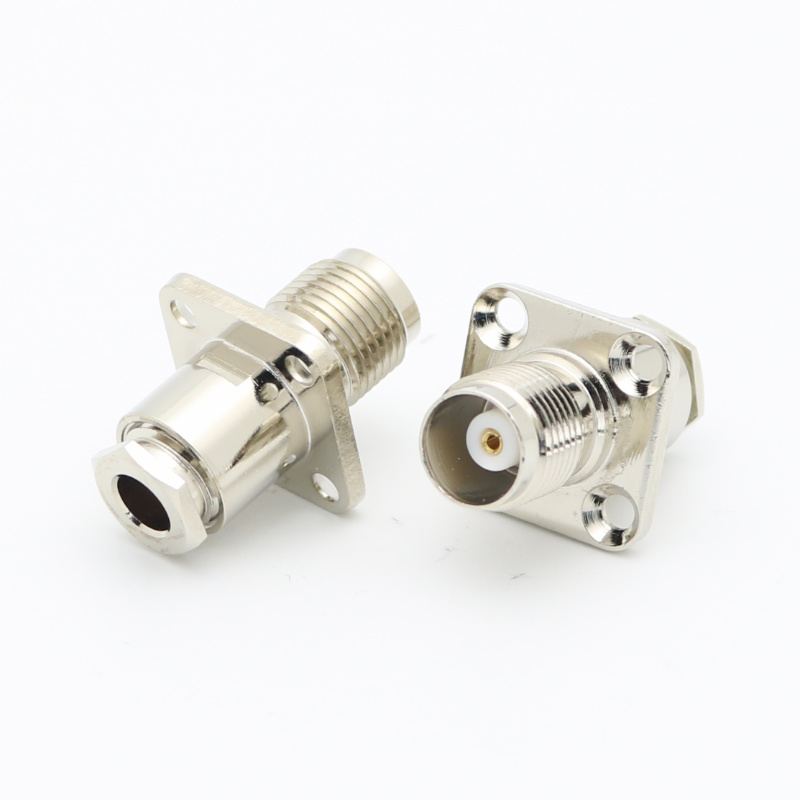

Straight TNC Clamp Panel Jack LMR300 SYV-50-5 5D-FB XMRTNC47

  • TNC-KF5

  • XIAO MA

  • XMRTNC47

  • LMR300 SYV-50-5 5D-FB

Availability:
Quantity:
Inquire Add to Basket

Product Description


TNC-KF5 XMRTNC47


Name

 Straight TNC Clamp Panel Jack LMR300 SYV-50-5 5D-FB

Model

 XMRTNC47

Body Finish

Nickel

Body Material

Brass

Cable Type (Terminates to)

LMR300 SYV-50-5 5D-FB

Contact Finish

Gold

Contact Material

Brass

Contact Termination

Solder

Coupling Mechanism

Threaded

Frequency (Max GHz)

11

Gender

Jack

Impedance (Ohms)

50

Insulator Material

Teflon
