TNC-3/8S
XIAO MA
XMRTNC25
3/8 superflexible cable
| Quantity: | |
|---|---|
Product Description

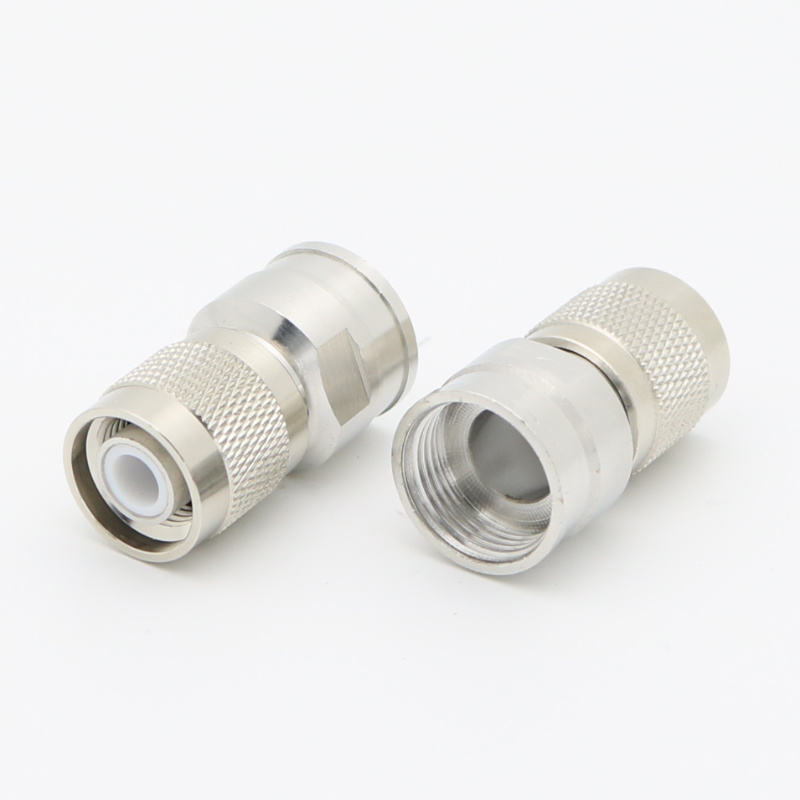

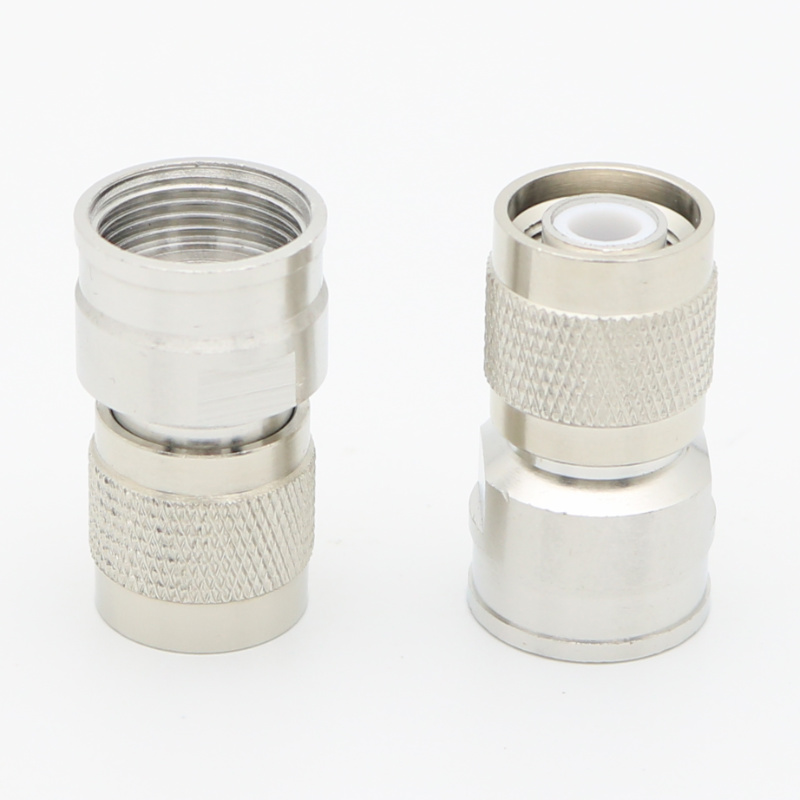

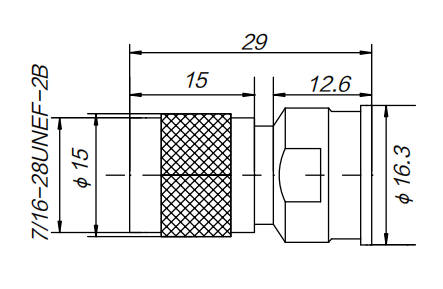

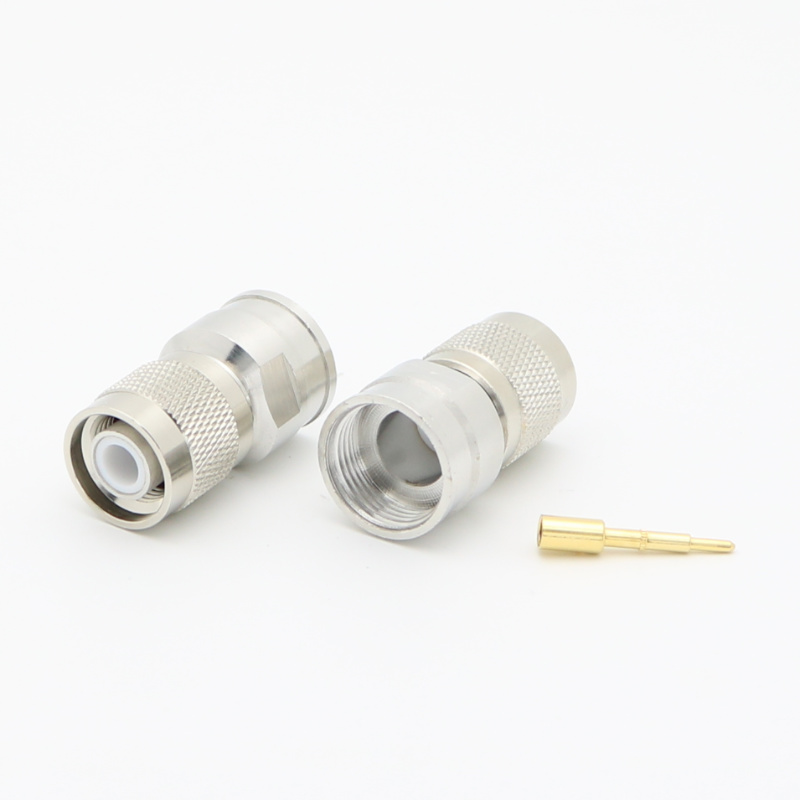

Name | TNC Straight Clamp Plug For Super Flexible Cable 50 Ohm |
Model | XMRTNC25 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | 3/8 superflexible cable |

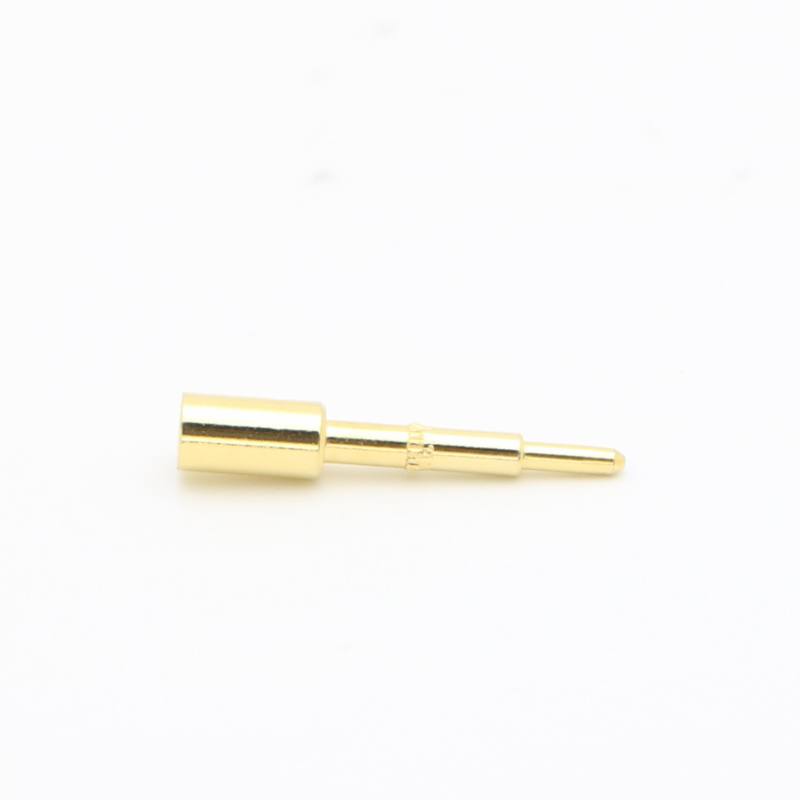

Contact Finish | gold |
Contact Material | Beryllium Copper |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 11 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Clamp |
Thread Direction | Standard |
