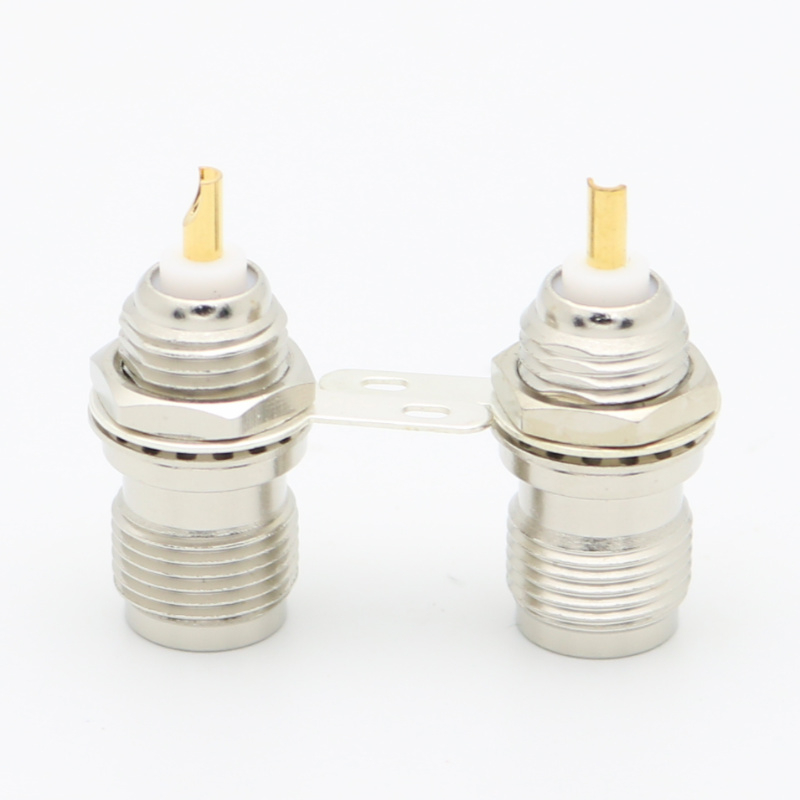

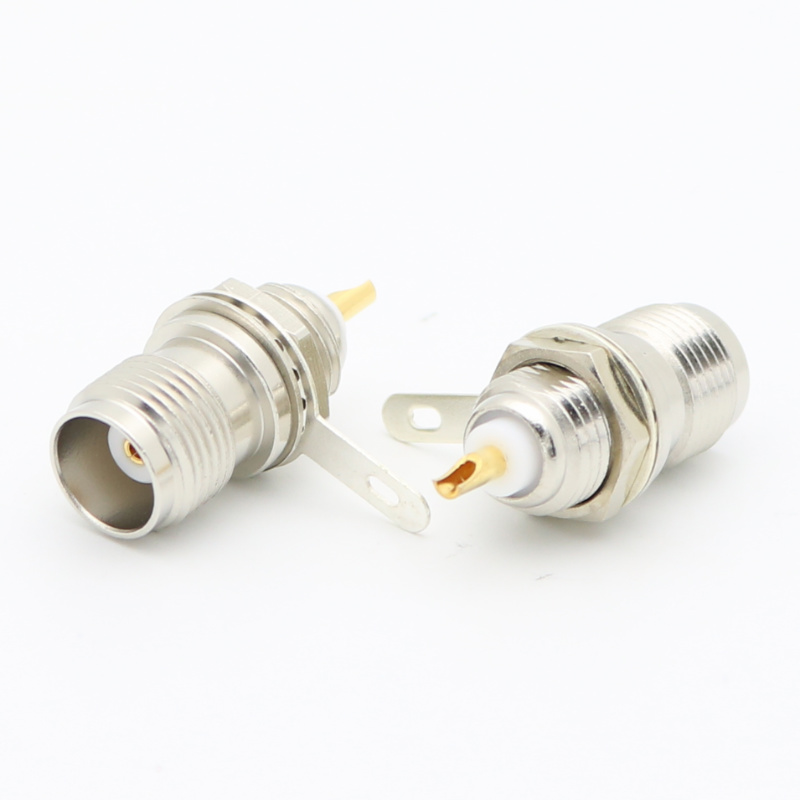

TNC Straight Receptacle Jack 50 Ohm XMRTNC26

  • TNC-KY

  • XIAO MA

  • XMRTNC26

Availability:
Quantity:
Inquire Add to Basket

Product Description

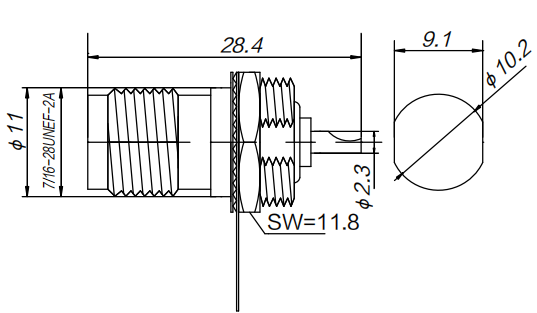

XMRTNC26 TNC-KY


Name

 TNC Straight Receptacle Jack 50 Ohm

Model

 XMRTNC26

Body Finish

Nickel

Body Material

Brass

Cable Type

Not

Contact Finish

Gold

Contact Material

Phosphor Bronze

Contact Termination

Solder

Coupling Mechanism

Threaded

Gender

Jack

Impedance (Ohms)

50

Insulator Material

Delrin

Orientation

Straight

Panel Mounting Feature

Bulkhead - Rear Mount

Ports

1 (Single Port)

Termination Style

Solder Cup

Thread Direction

Reverse
