UHF-C-J5
XMRUHF4
LMR300 SYV-50-5 5D-FB
| Quantity: | |
|---|---|
Product Description

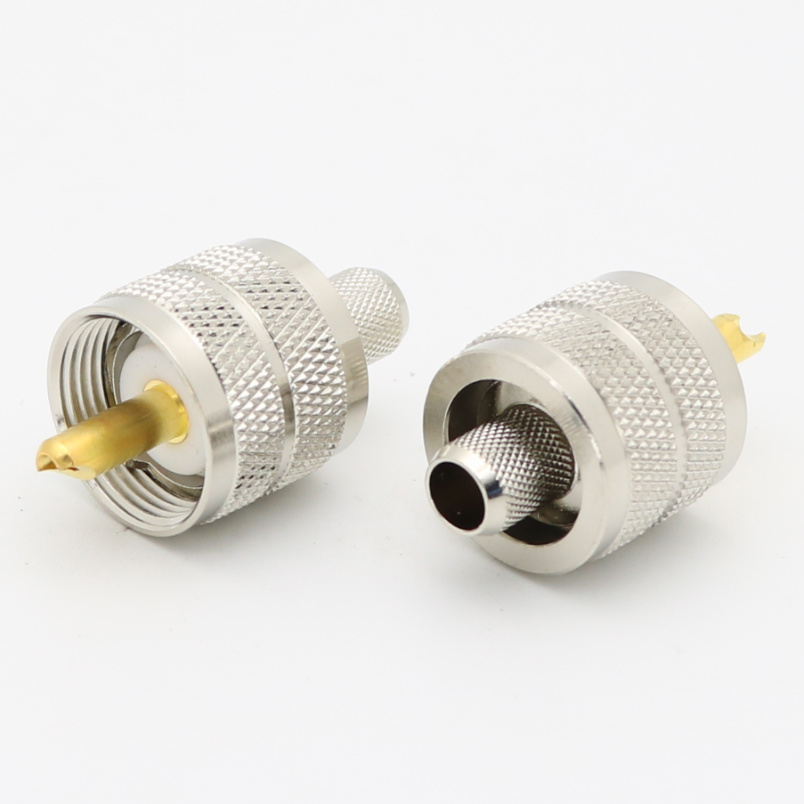

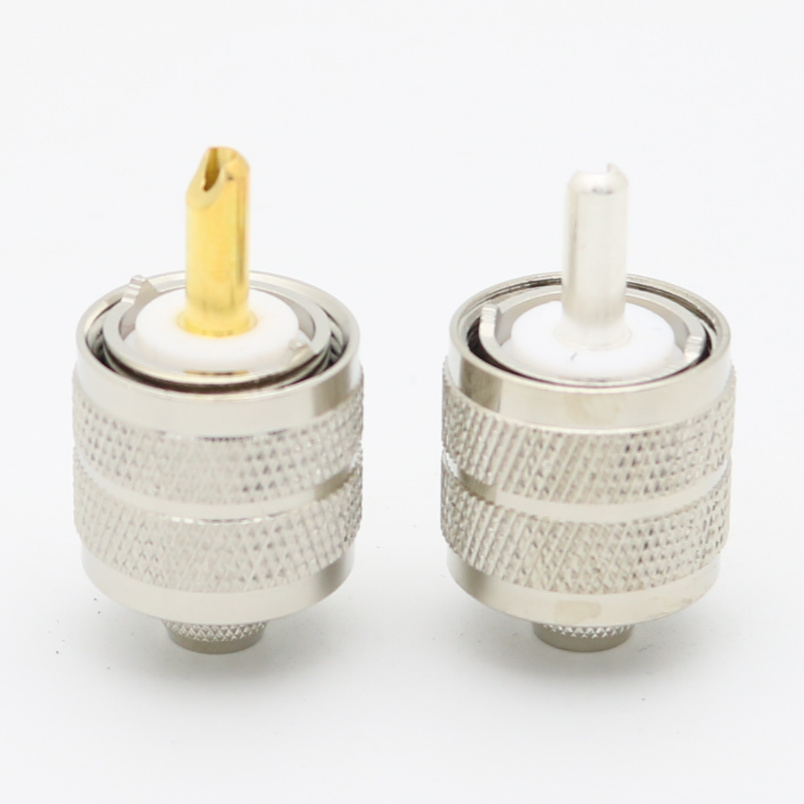

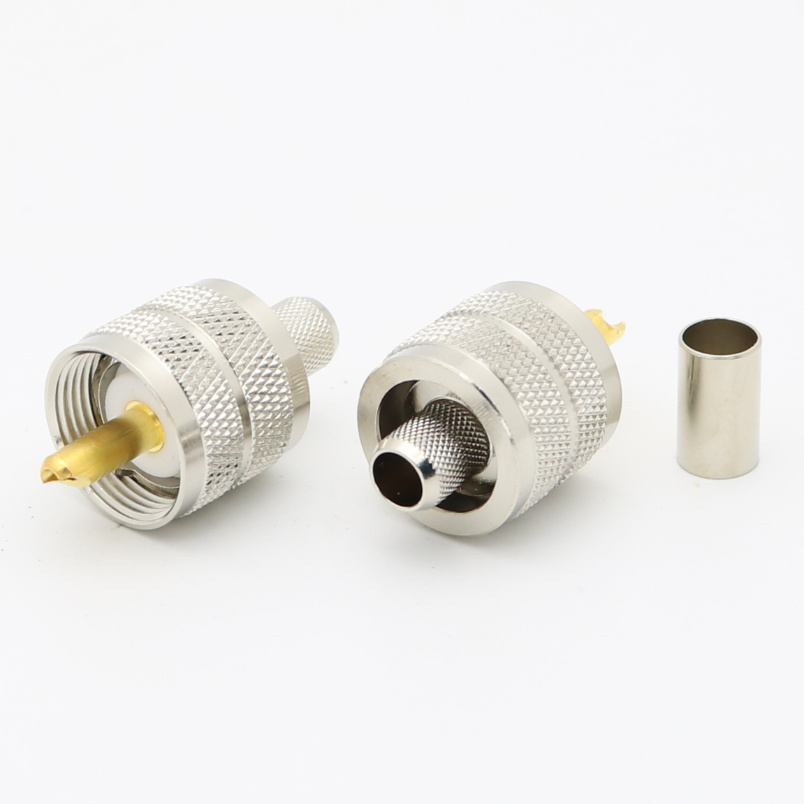

Name | UHF Crimp Plug SYV-50-5 |
Model | XMRUHF4 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type (Terminates to) | LMR195 CNT195 RG58 RG233 RG142 RG400 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 0.3 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Orientation | Straight |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
