UHF-JF
XIAO MA
XMRUHF30
| Quantity: | |
|---|---|
Product Description

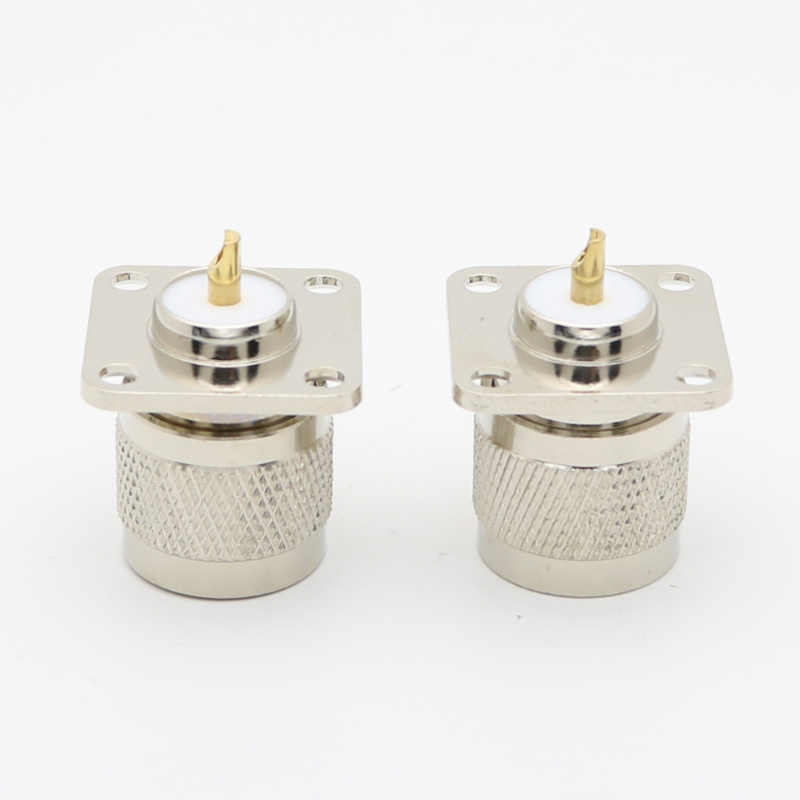

Name | UHF Panel Mount Jack 4-Hole Flange Solder |
Model | XMRUHF30 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type (Terminates to) | Not Applicable |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 0.5 |
Gender | Plug |
Insulator Material | Teflon |
Orientation | Straight |
Panel Mounting Feature | 4-Hole Flange |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Solder Cup |
Thread Direction | Standard |
| Customization | ACCEPTABLE |
