UHF-C-KW-5
XMRUHF18
LMR300 SYV-50-5 5D-FB
| Quantity: | |
|---|---|
Product Description
Name |

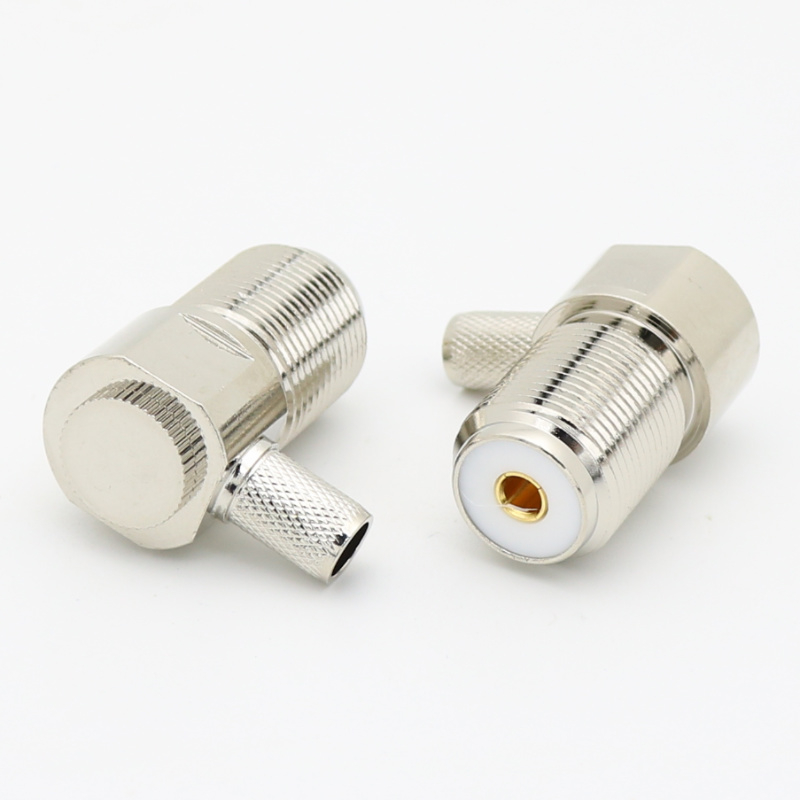

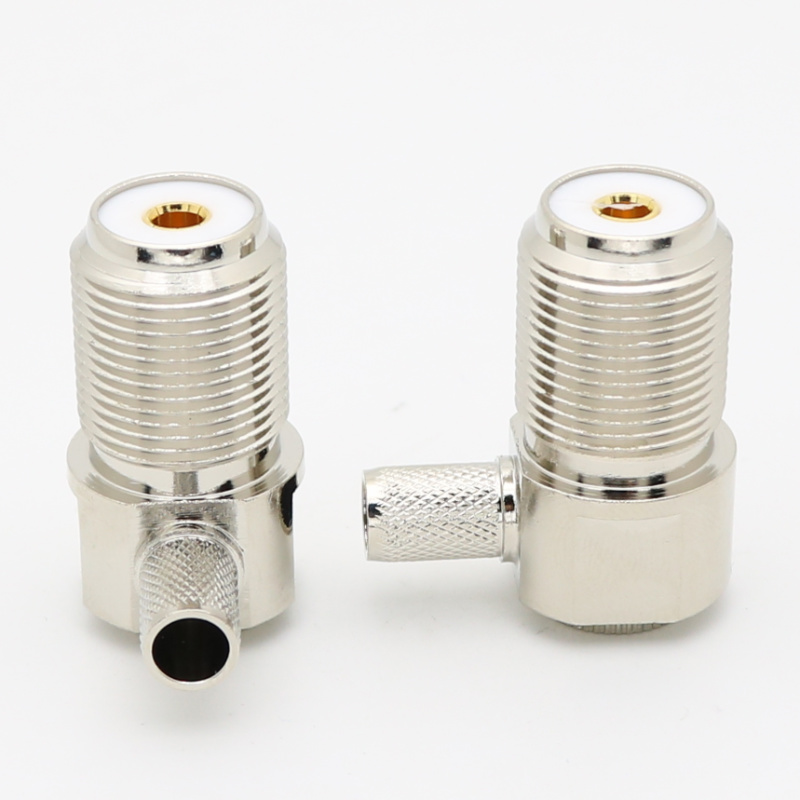

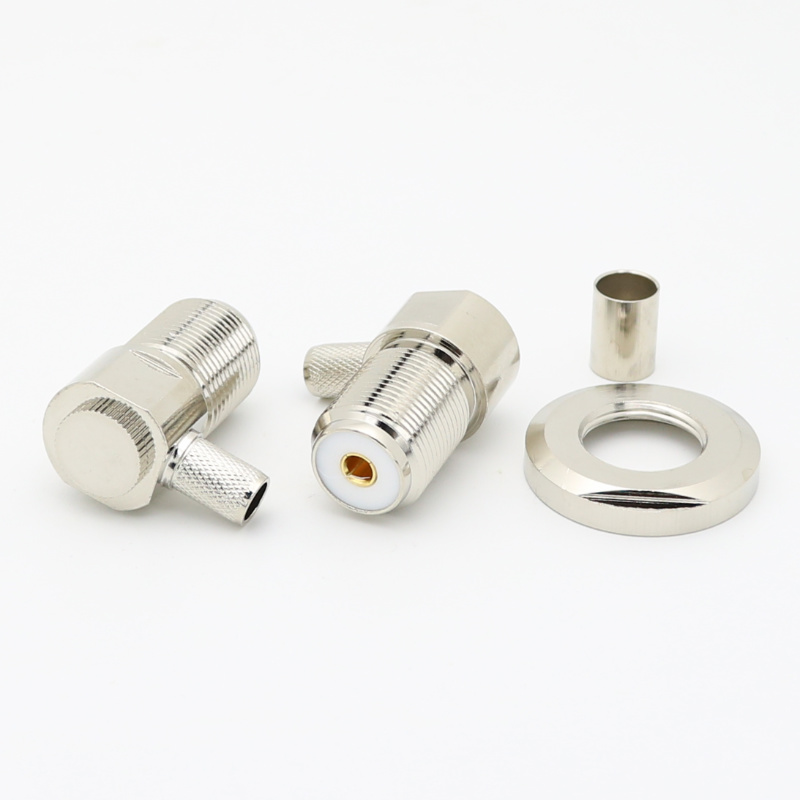

UHF Right Angle Crimp Jack LMR300 SYV-50-5 5D-FB |
Model |
XMRUHF18 |
Body Finish |
Nickel |
Body Material |
Brass |
Cable Type |
LMR300 SYV-50-5 5D-FB |
Contact Finish |
Gold |
Contact Material |
Brass |
Contact Termination |
Solder |
Coupling Mechanism |
Threaded |
Frequency (Max GHz) |
0.5 |
Gender |
Jack |
Impedance (Ohms) |
50 |
Insulator Material |
PTFE |
Orientation |
Straight |
Ports |
1 (Single Port) |
Temp (Max Degrees Celsius) |
165 |
Temp (Min Degrees Celsius) |
-65 |
Termination Style |
Cable - Crimp |
Thread Direction |
Standard |
OEM |
ACCEPTABLE |
