UHF-C-JW-4
XIAO MA
XMRUHF8
LMR240 SYV-50-4
| Quantity: | |
|---|---|
Product Description

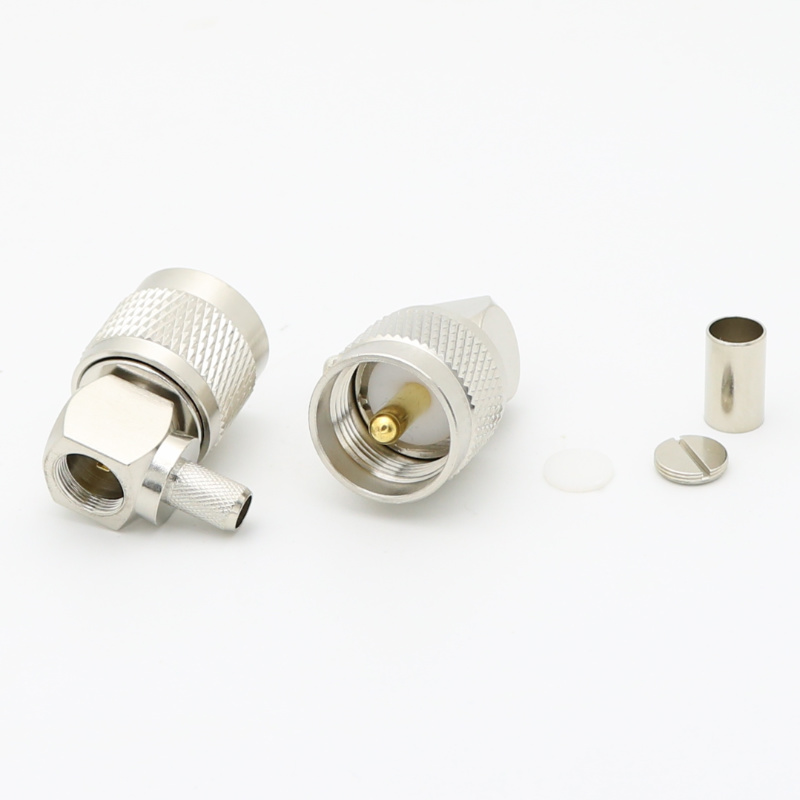

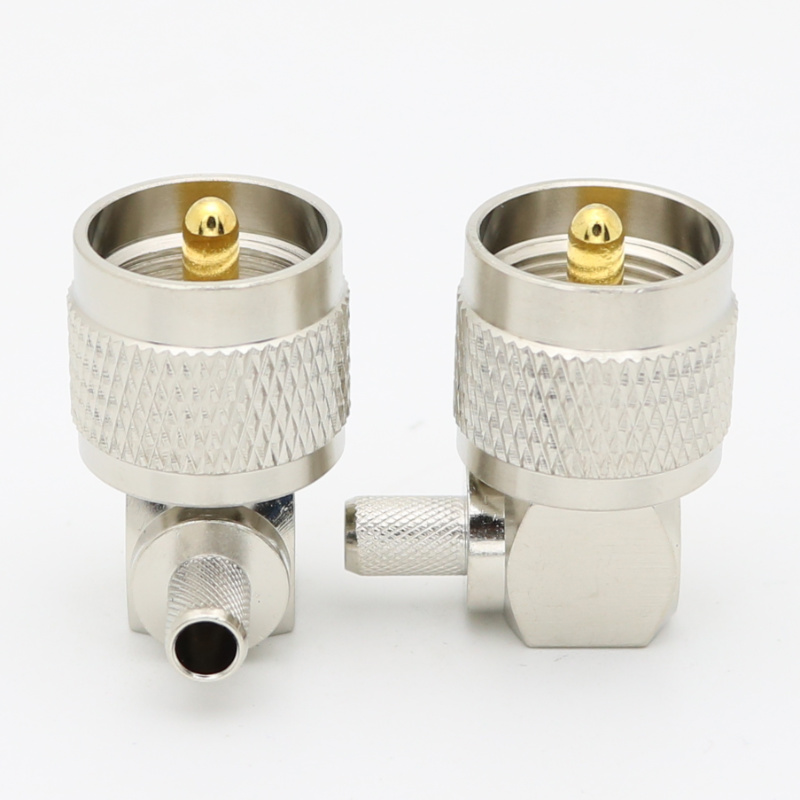

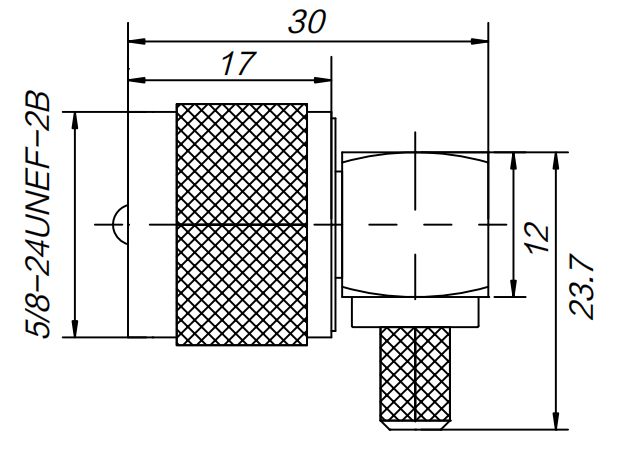

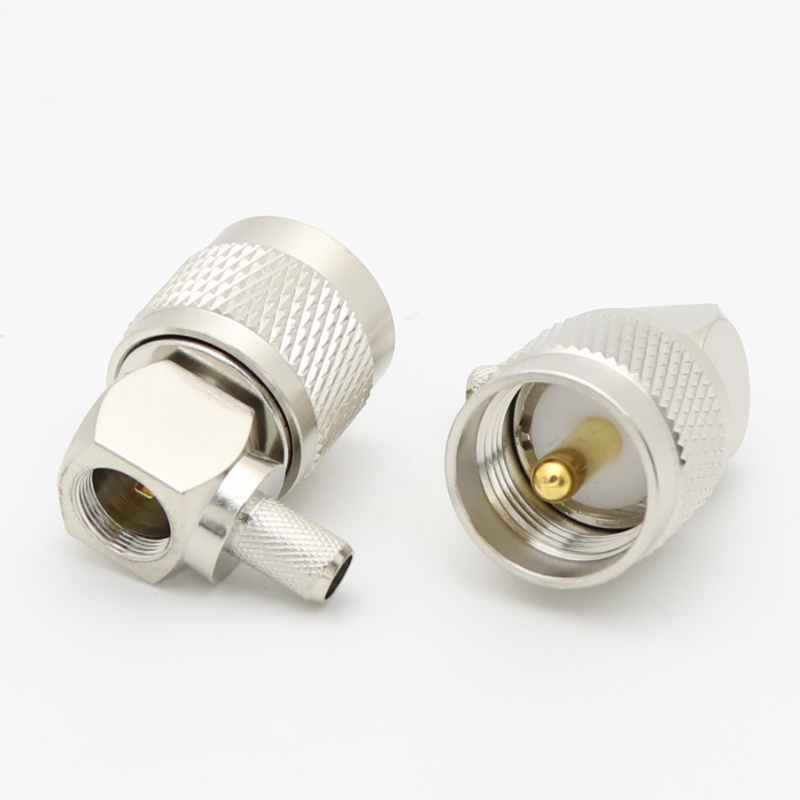

Name | UHF Right Angle Crimp Plug LMR240、SYV-50-4 |
Model | XMRUHF8 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type (Terminates to) | LMR240、SYV-50-4 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 0.3 |
Gender | Plug |
Impedance (Ohms) | 50 |
Insulator Material | PCTFE |
Orientation | Straight |
Ports | 1 (Single Port) |
Size Category | Standard |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
