UHF-K5
XIAO MA
XMRUHF31
SYV-50-9
| Quantity: | |
|---|---|
Product Description

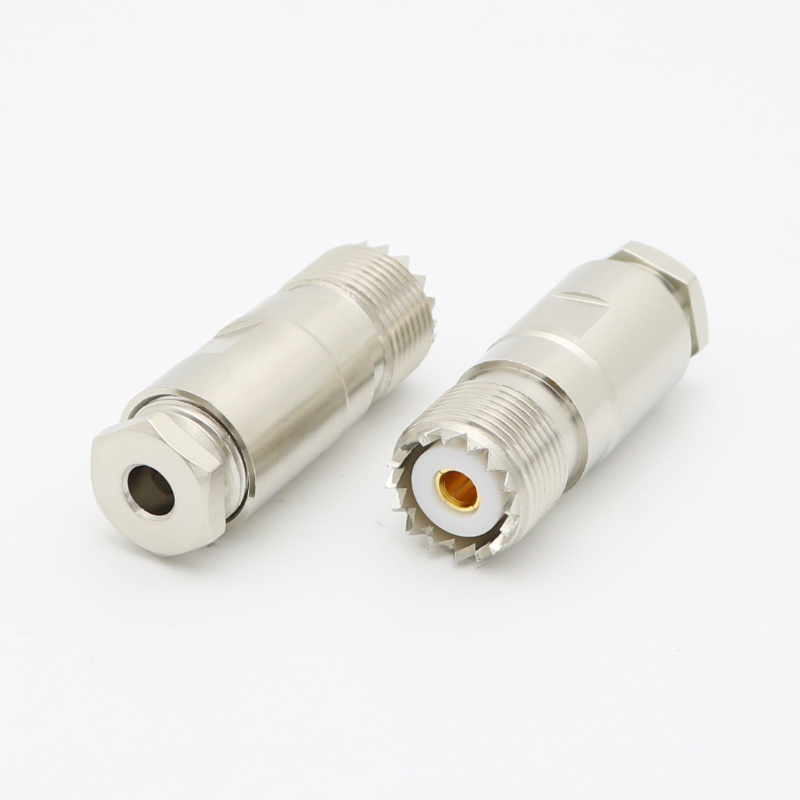

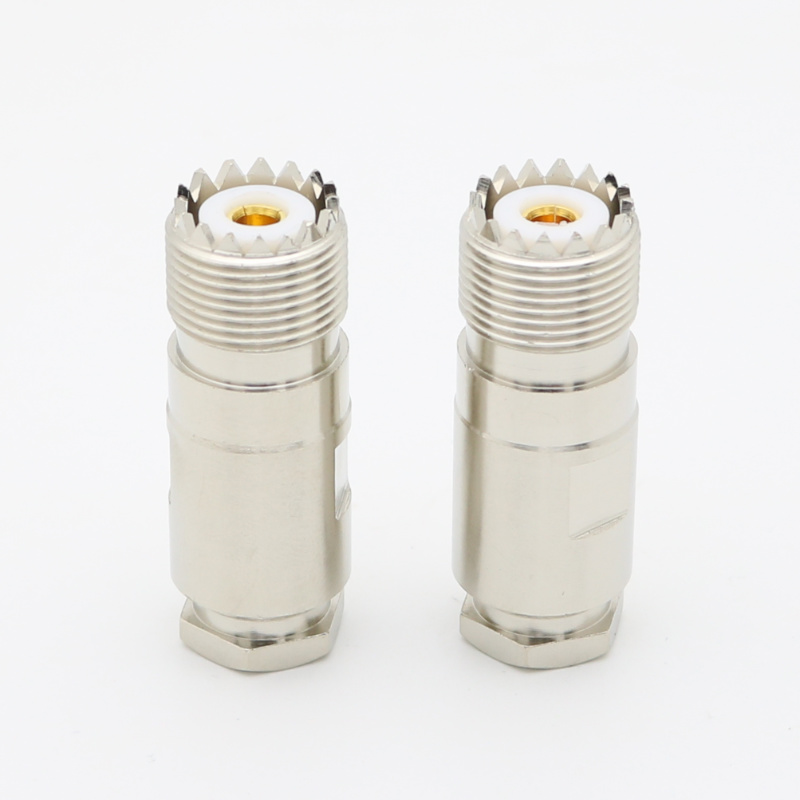

Name | UHF Straight Clamp Jack |
Model | XMRUHF31 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | SYV-50-9 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 0.5 |
Gender | Jack |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Thread Direction | Standard |
Customization | ACCEPTABLE |
