UHF-C-K-4
XMRUHF11
LMR240 SYV-50-4
| Quantity: | |
|---|---|
Product Description

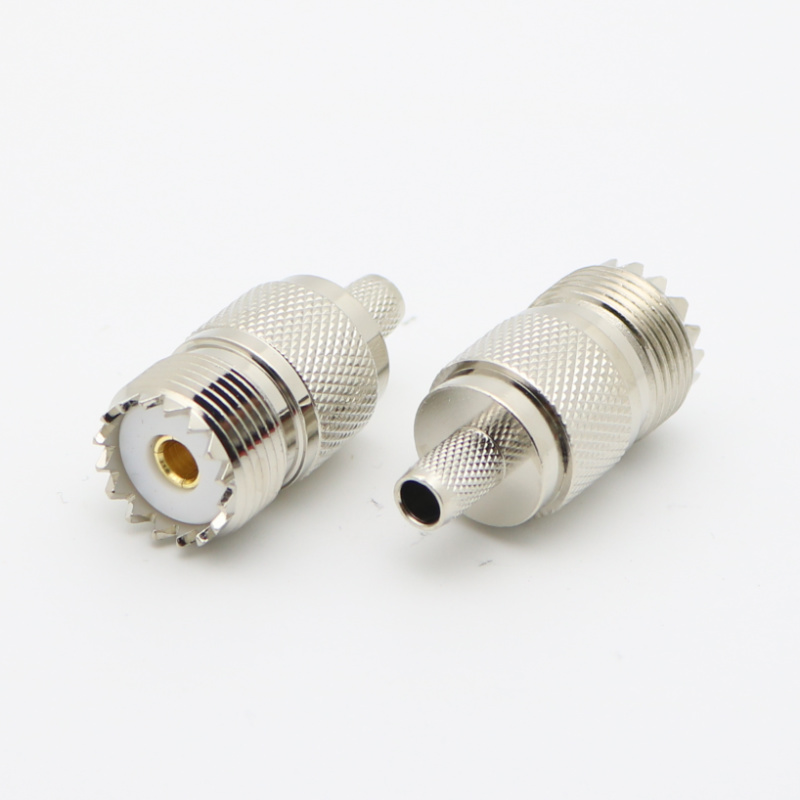

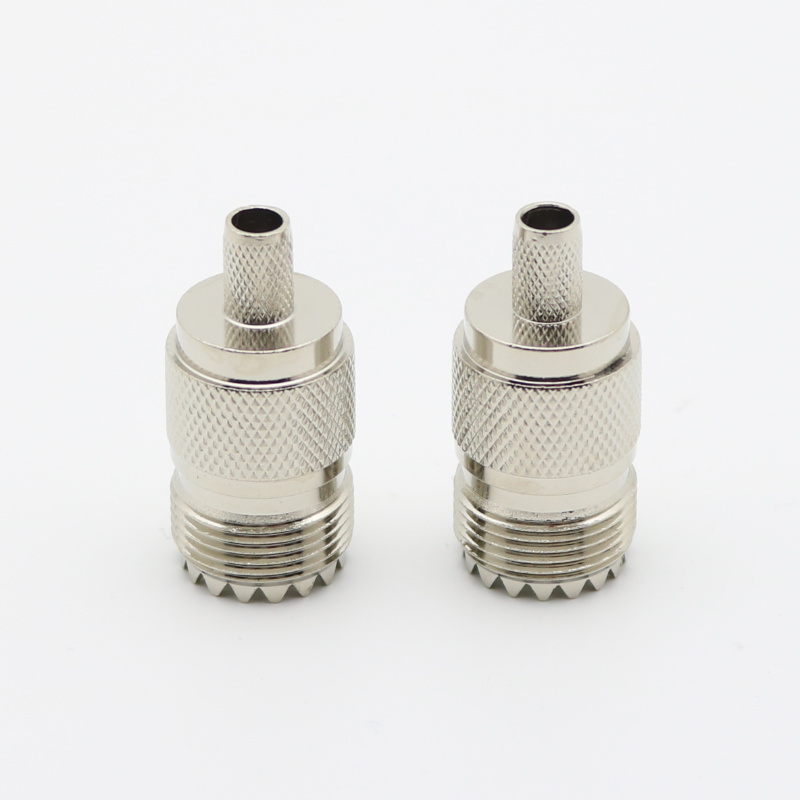

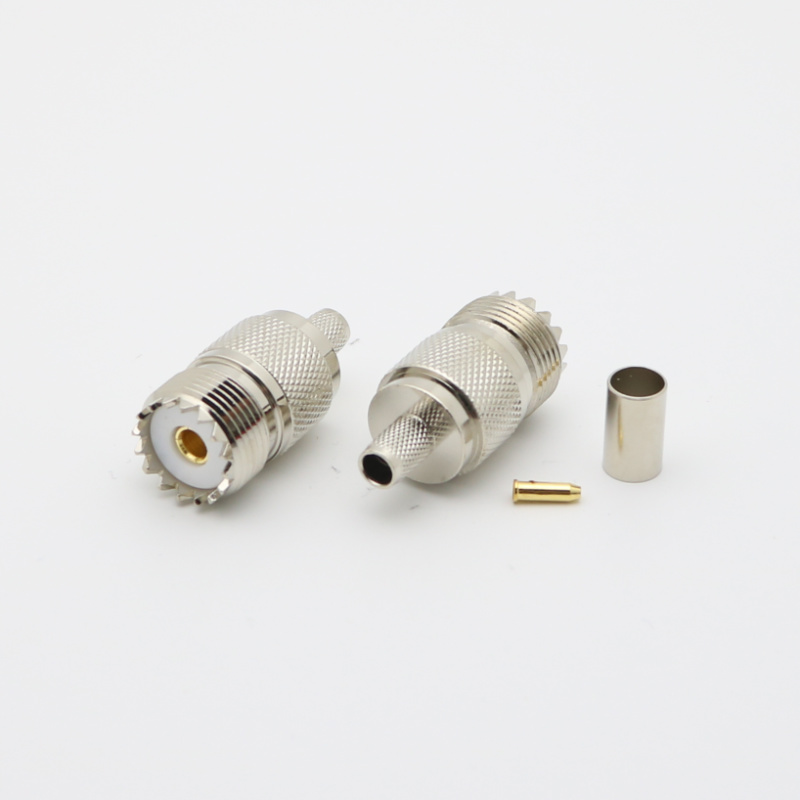

Name | UHF Straight Crimp Jack LMR240 SYV-50-4 |
Model | XMRUHF11 |
Body Finish | Nickel |
Body Material | Brass |
Cable Type | LMR240 SYV-50-4 |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Solder |
Coupling Mechanism | Threaded |
Frequency (Max GHz) | 0.5 |
Gender | Jack |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
Orientation | Straight |
Ports | 1 (Single Port) |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
Termination Style | Cable - Crimp |
Thread Direction | Standard |
OEM | ACCEPTABLE |
