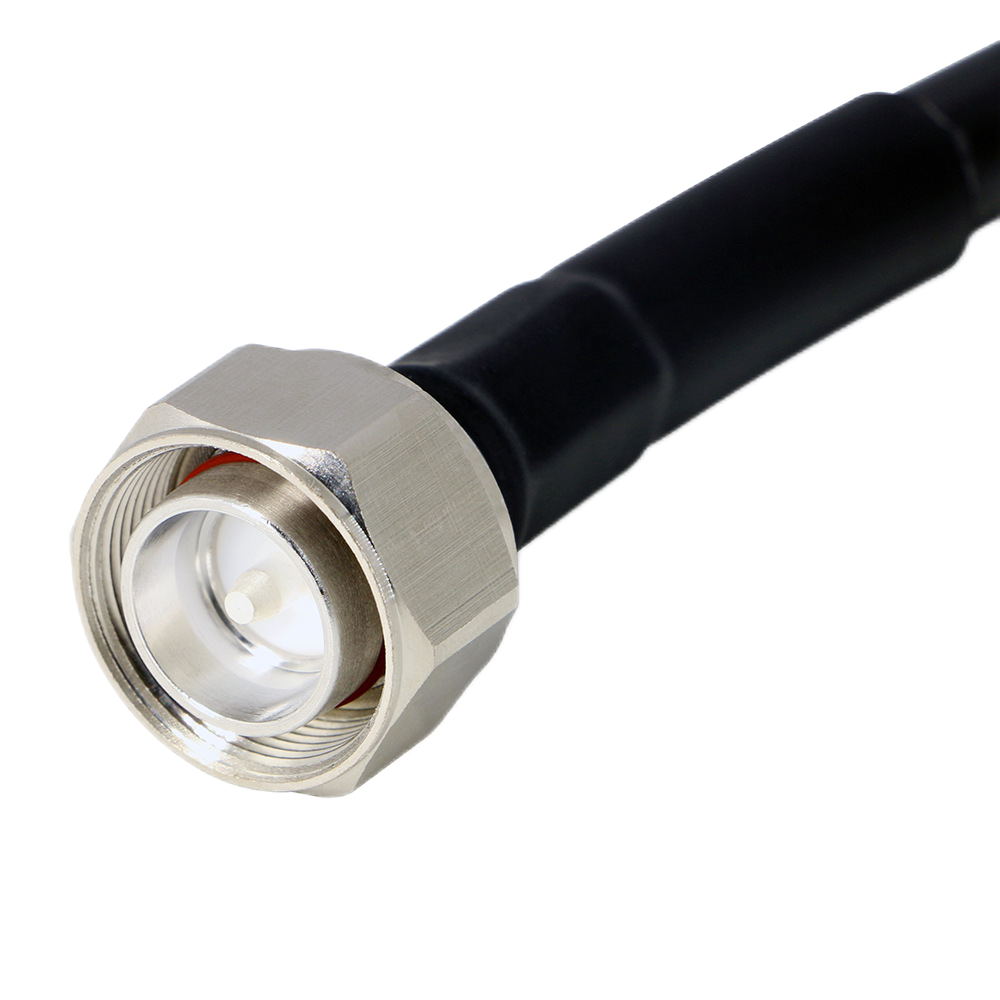

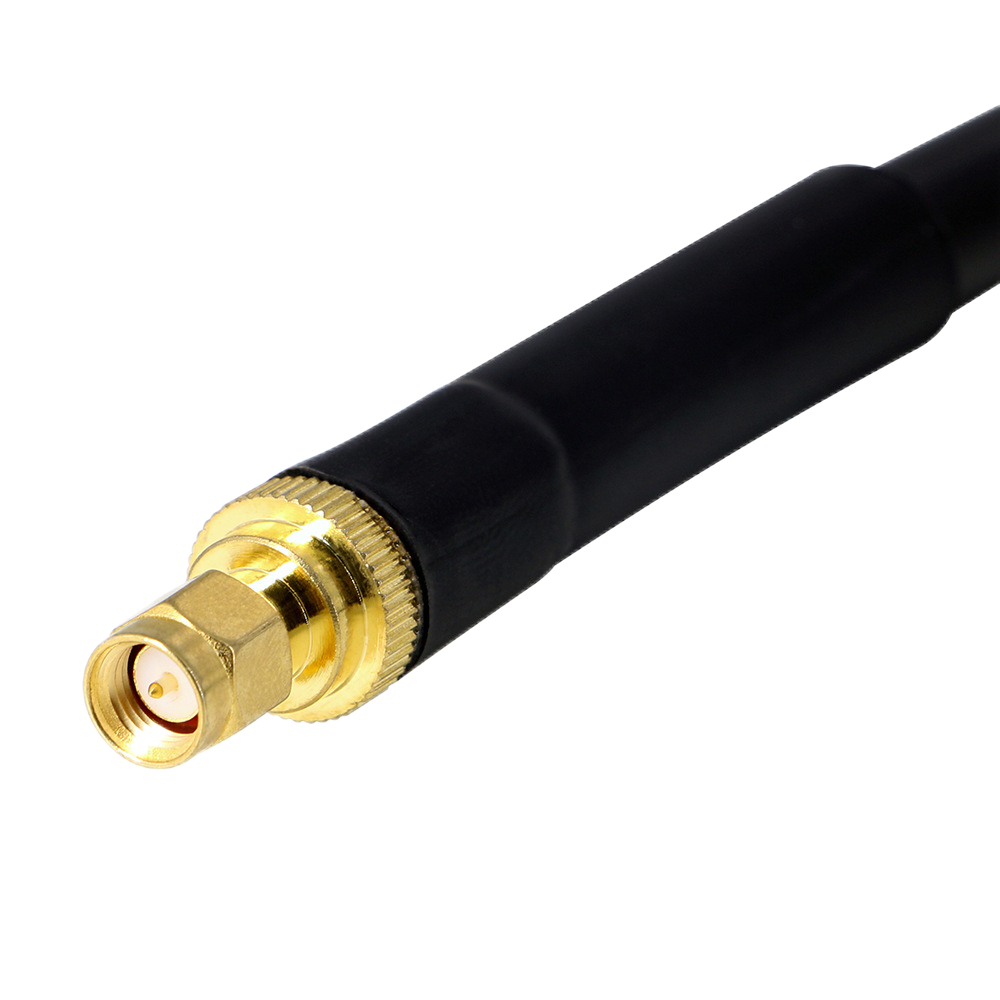

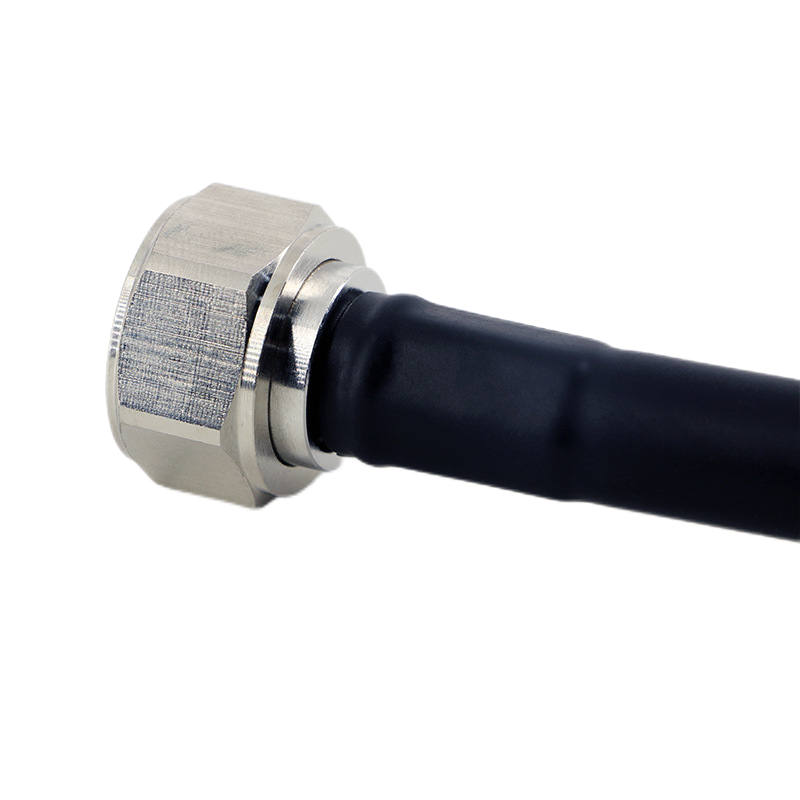

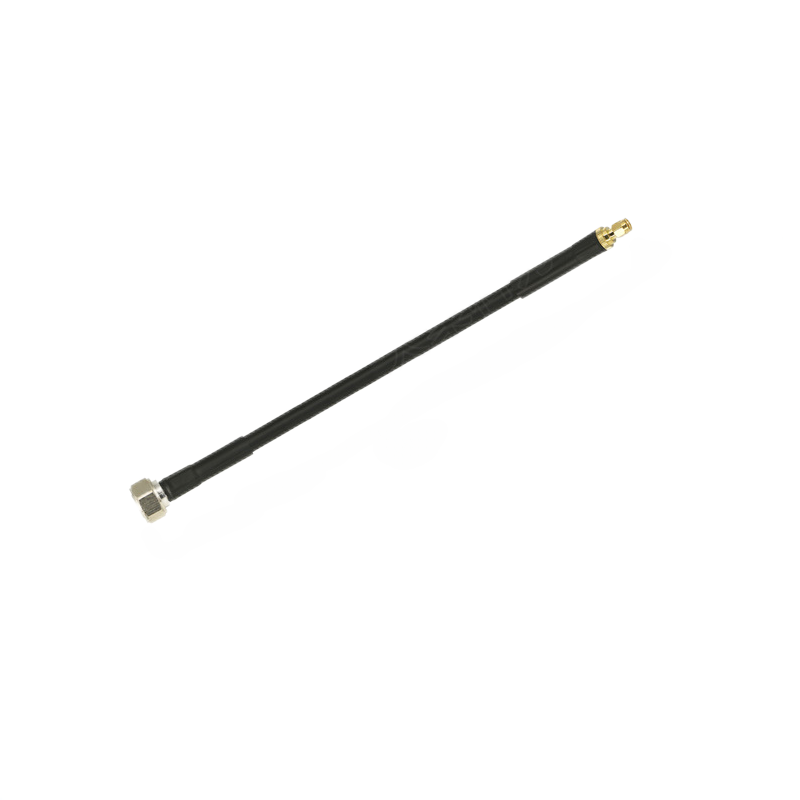

1/4 Super Flexible Din Plug To SMA Plug RF Cable Assembly XMRZJ

Product Description

1_4超柔馈线跳线外贸同轴线缆同轴线馈线射频同轴电缆RF_cable手 (2)

Cable Construction
No.		Material				Dimensions
1、Inner Conductor		copper clad Aluminum				φ1.9±0.03mm
2、Dielectric		Foam Polyethylene FPE				φ4.7±0.10mm
3、Outer Conductor		orrugated copper pipe				φ6.4±0.10mm
4、Jacket		polyethylene(PE)				φ7.4±0.2mm
Mechanical Characteristics and electrical performance parameter
1、Impedance				50±2Q(Ohms)
2、Capacitance				79±2PF/M
3、Velocity				0.82
4、Peak Power				6KW
5、Jacket spark(VRMS)				1600V
6、Inner Conductor Dc resistance				+2.97ohms/1000m
7、OuterConductor Dc resistance				3.54ohms/1000m
8、cutoff Frequency(GHz)				20.G
9、OperatingTemperature C				40-85℃
10、Min Bend Radius				74mm
11、Maximum Pull Tension				680N
12、jacket-Marking				OEM
13、Reel Length				Customized
14、Screening attenuation (dB)				120
15、VSWR				5～6000MHZ
20℃ Typical attenuation of sea level
Frequeney			Attenuation(dB/100m)
100			5.89
400			12.09
900			18.47
1500			24.78
1800			26.41
2500			31.85
3000			35.16
6000			72.88
1/4 super flexible cable signal loss table VSWR
Meter frequency (Mhz)	1.22	3.048	5.49	7.62	10.67	15.24	30.48	VSWR
	4FT	10FT	18FT	25FT	35FT	50FT	100FT
30	0.04	0.09	0.16	0.23	0.32	0.46	0.91	1.05
100	0.07	0.17	0.3	0.42	0.59	0.84	1.68	1.08
200	0.1	0.26	0.47	0.65	0.91	1.3	2.59	1.08
400	0.16	0.4	0.71	0.99	1.39	1.98	3.96	1.08
700	0.2	0.49	0.88	1.22	1.71	2.44	4.88	1.12
900	0.23	0.56	1.02	1.41	1.97	2.82	5.64	1.12
1300	0.28	0.7	1.26	1.75	2.45	3.51	7.01	1.12
1900	0.33	0.82	1.48	2.06	2.88	4.11	8.23	1.16
2600	0.4	1.01	1.81	2.51	3.52	5.03	10.06	1.23
6000	0.63	1.58	2.85	3.96	5.55	7.92	15.85	1.32
