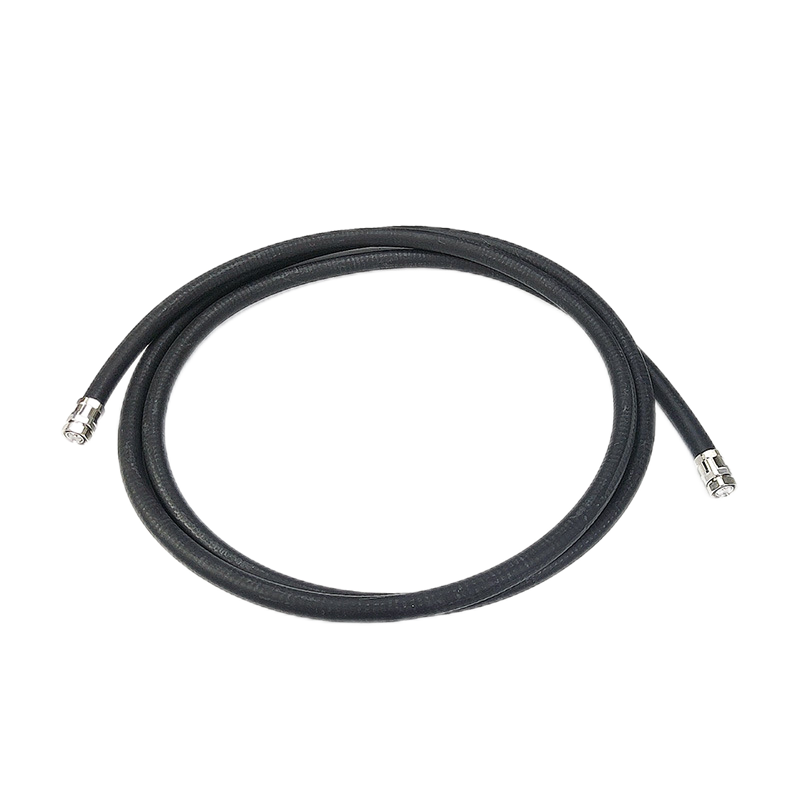

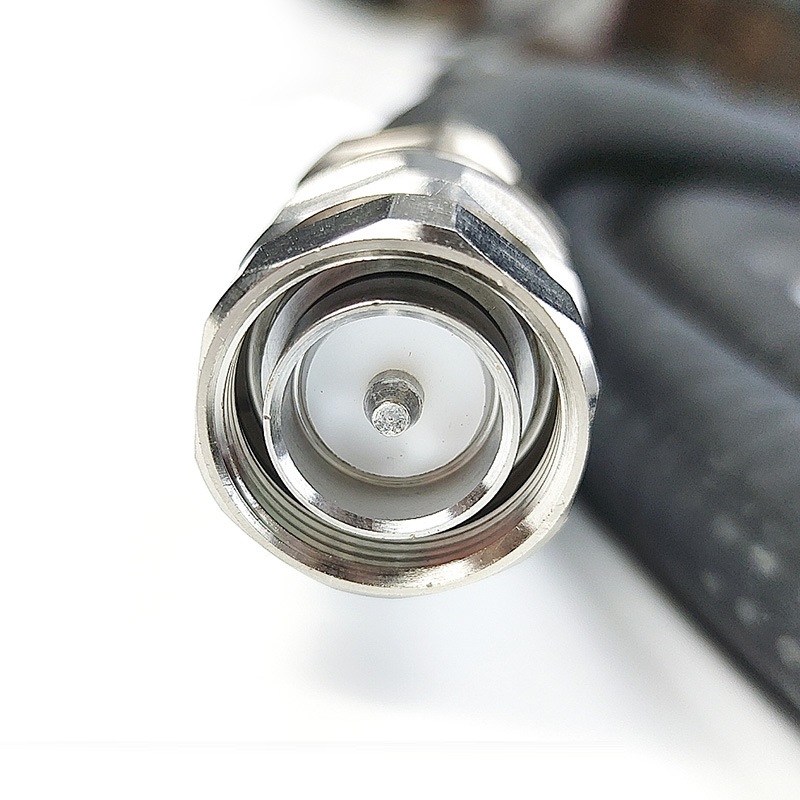

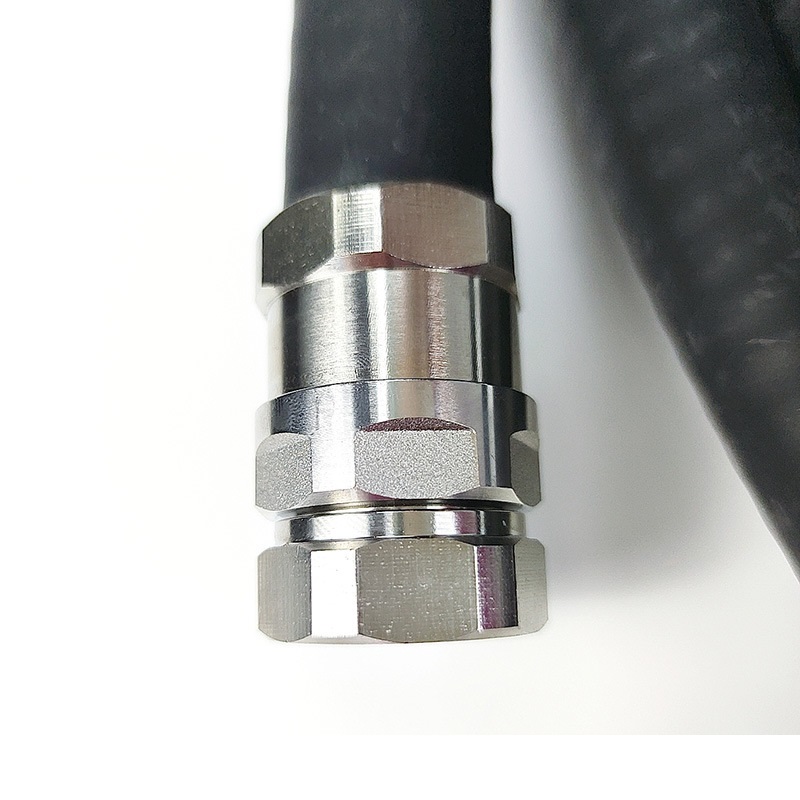

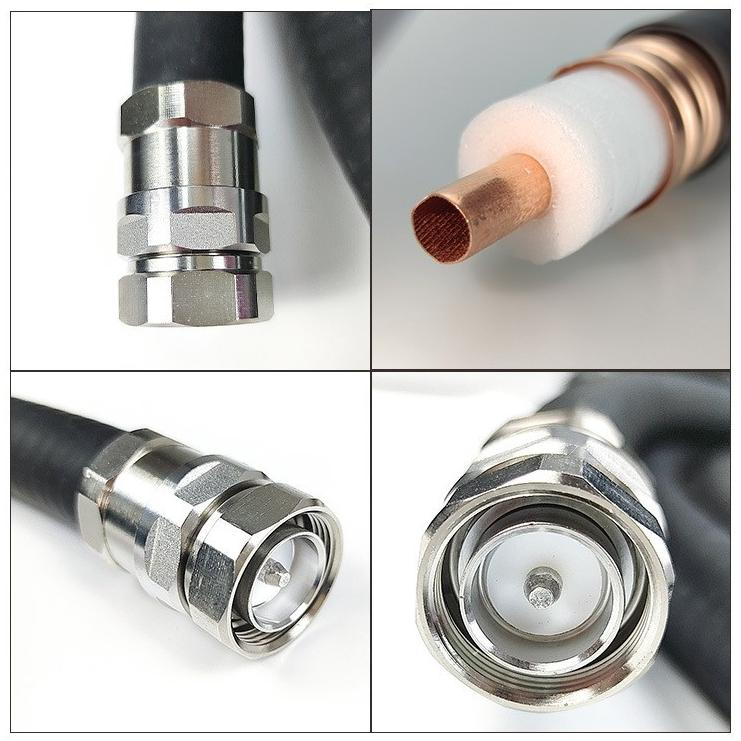

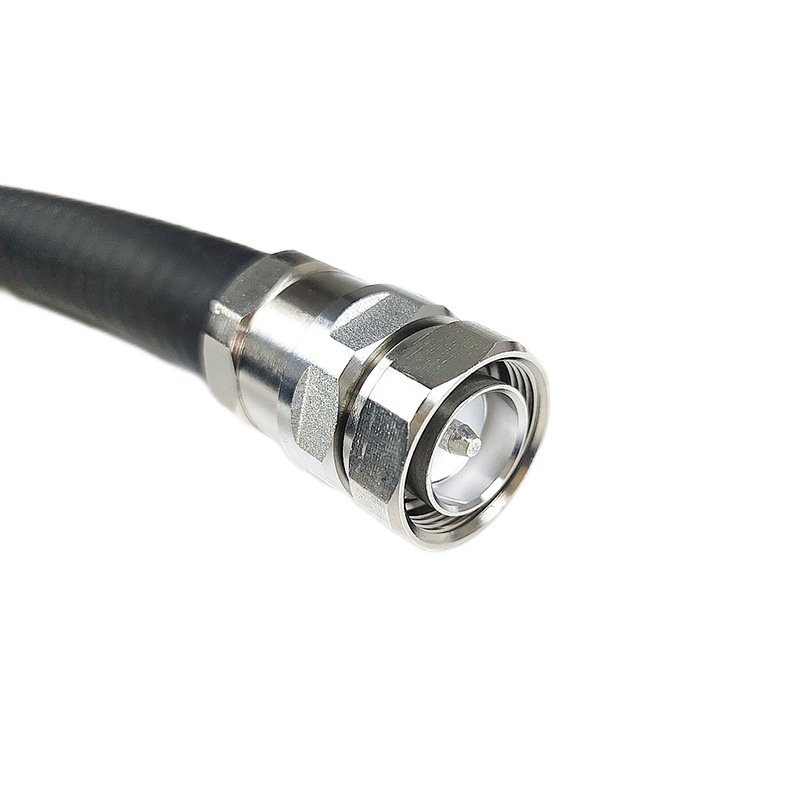

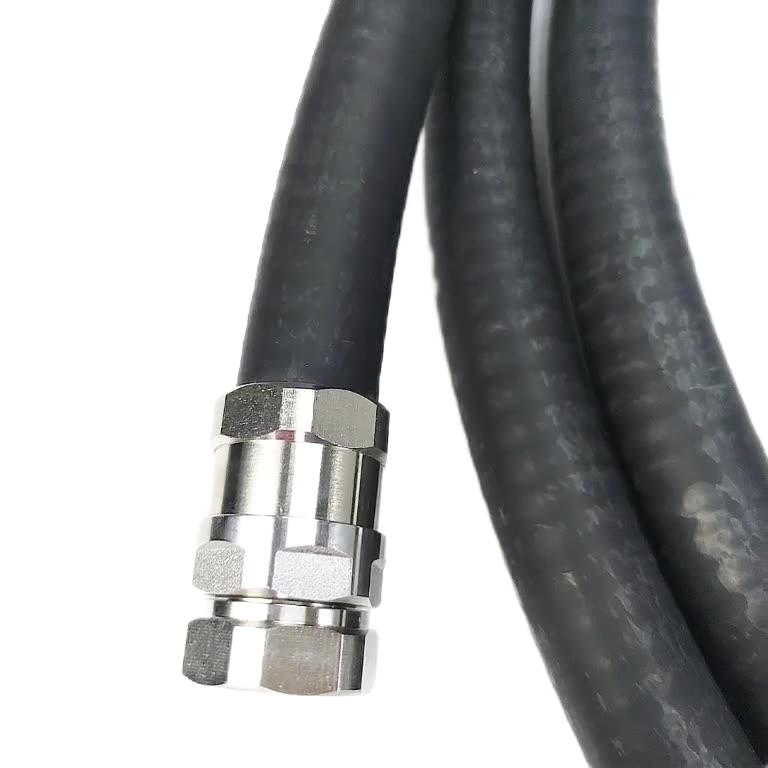

N Plug To N Plug RF Cable Assembly XMRZJ

  • XMRZJ

  • XIAO MA

  • 7/8

Availability:
Quantity:
Inquire Add to Basket

Product Description


5D-FB射频同轴电缆50Ω高频信号天线馈线低损耗低驻波工厂直销


Product     testing
7/8 Cable signal loss table VSWR

Meter

Frequeney(Mhz)

 1.22 3.048 5.49 7.62 10.67 15.24 30.48 VSWR
4FT 10FT 18FT 25FT 35FT 50FT 100FT
30 0.01 0.02 0.03 0.05 0.06 0.09 0.18 1.05
100 0.02 0.04 0.07 0.10 0.14 0.20 0.40 1.06
200 0.02 0.06 0.10 0.14 0.20 0.29 0.58 1.08
400 0.03 0.09 0.15 0.21 0.30 0.43 0.85 1.08
700 0.05 0.12 0.21 0.29 0.41 0.58 1.16 1.08
900 0.05 0.14 0.25 0.34 0.48 0.69 1.37 1.08
1300 0.07 0.17 0.31 0.43 0.60 0.85 1.71 1.08
1900 0.09 0.22 0.39 0.54 0.76 1.08 2.16 1.08
2600 0.10 0.26 0.47 0.66 0.92 1.31 2.62 1.08
2700 0.11 0.27 0.48 0.67 0.94 1.34 2.68 1.10
