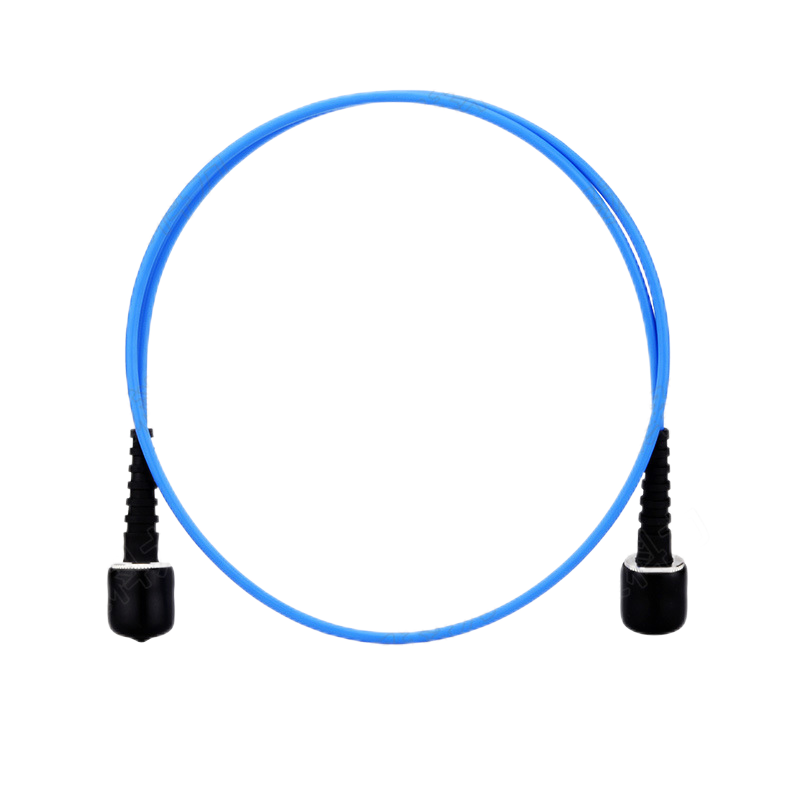

Product Description

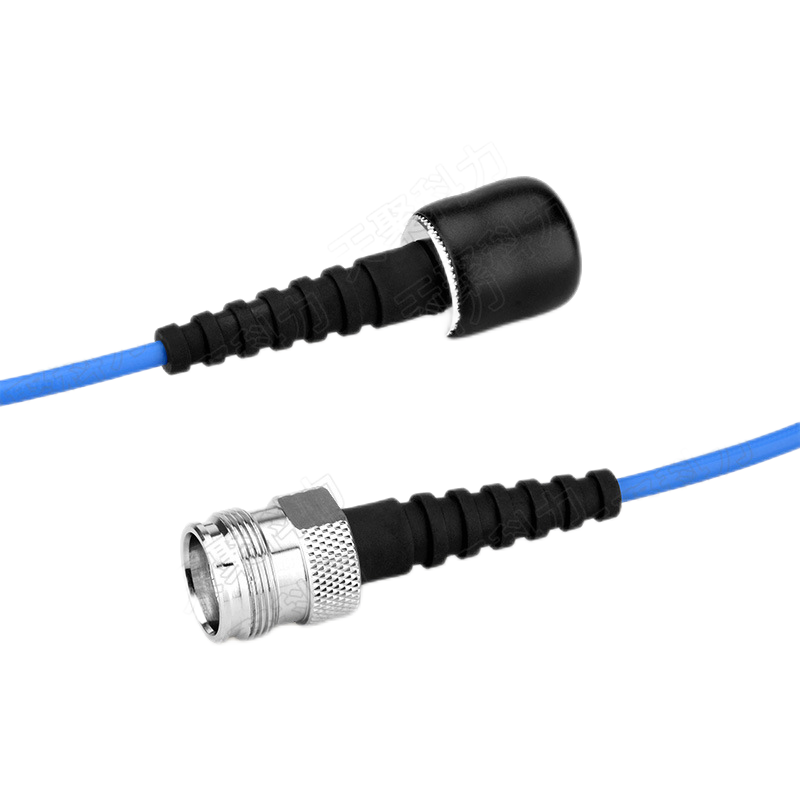

| Cable Construction | |||||||||
| Cable parameters | |||||||||
| No. | Material quality | Dimensions | |||||||
| 1、Inner Conductor | Silver plated coppe | φ0.93mm | |||||||
| 2、Insulation | PTFE)(TeflonPTFE | φ3.00mm | |||||||
| 3、Outer Conductor | Soak tin copper thread knitting | φ3.52mm | |||||||
| 4、Wrap. | Polyvinyl chloride(PVC), polyfluoroethylpropene(FEP) low smoke halogen-free nolvolpfin(LSZH)) | ①4.25±0.05mm | |||||||
| Connector parameters | |||||||||
| N o | Material quality | ||||||||
| 1、Quter shel | Non-magnetic copper / plated ternary alloy | ||||||||
| 2、Plug. | (Beryllium or tin bronze | ||||||||
| 3、Insulator | PTFE | ||||||||
| 4、Connection Mode | Welding | ||||||||
| 5、Durability(matin | ≥500 cycles | ||||||||
| Mechanical and Electrical Performance Parameters of Components | |||||||||
| Mechanical, performance | Parameter | ||||||||
| 1、Impedance | 50Ω | ||||||||
| 2、Temperature range | .-55～+155℃ | ||||||||
| 3、Frequency range | DC～6GHz | ||||||||
| 4、dB/m Cable decay | ≤-1.56dB(6GHz) | ||||||||
| 5、Minimum bending | 8mm | ||||||||
| 6、Min Bend Radius | 20mm | ||||||||
| 7、oltage resistance | 3000Vrms/min | ||||||||
| 8、Environmental protection | RoHS | ||||||||
| 9、Connector end injection | Shapes can be cust tomer requirements | ||||||||
| 10、Cable Length | Length can be customized to customer requirements | ||||||||
| 11、Cable sheath color | Customized colors can /be made according to customer | ||||||||
| 12、VSWR | DC～3GHz≤1.15 | ||||||||
| 3GHz～6GHz≤1.25 | |||||||||
| 13、PIM 3 (2*43dBm) | ≤-160dB c(700MHz、800MHz、900MHz、1800MHz、1900MHz、2100MHz、2700MHz) | ||||||||
| PRODUCT TESTIG | |||||||||
| RG402/RG141 Cable signal loss and VSWR | |||||||||
| Meter frequency (Mhz) | 4FT | 10FT | 18FT | 25FT | 35FT | 50FT | 100FT | VSWR | |
| 0.08 | 0.19 | 0.35 | 0.48 | 0.67 | 0.96 | 1.92 | 1.12 | ||
| 100 | 0.14 | 0.35 | 0.63 | 0.88 | 1.23 | 1.75 | 3.51 | 1.12 | |
| 200 | 0.20 | 0.50 | 0.91 | 1.26 | 1.76 | 2.51 | 5.03 | 1.12 | |
| 400 | 0.28 | 0.71 | 1.27 | 1.77 | 2.48 | 3.54 | 7.07 | 1.12 | |
| 700 | 0.38 | 0.95 | 1.72 | 2.39 | 3.34 | 4.77 | 9.54 | 1.12 | |
| 900 | 0.44 | 1.09 | 1.97 | 2.74 | 3.83 | 5.47 | 10.94 | 1.12 | |
| 1300 | 0.53 | 1.43 | 2.58 | 3.58 | 5.01 | 7.16 | 14.33 | 1.12 | |
| 1900 | 0.66 | 1.65 | 2.97 | 4.12 | 5.77 | 8.24 | 16.49 | 1.16 | |
| 2600 | 0.79 | 2.10 | 3.79 | 5.26 | 7.36 | 10.52 | 21.03 | 1.18 | |
| 6000 | 1.28 | 3.20 | 5.76 | 8.00 | 11.20 | 16.00 | 32.00 | 1.32 | |
