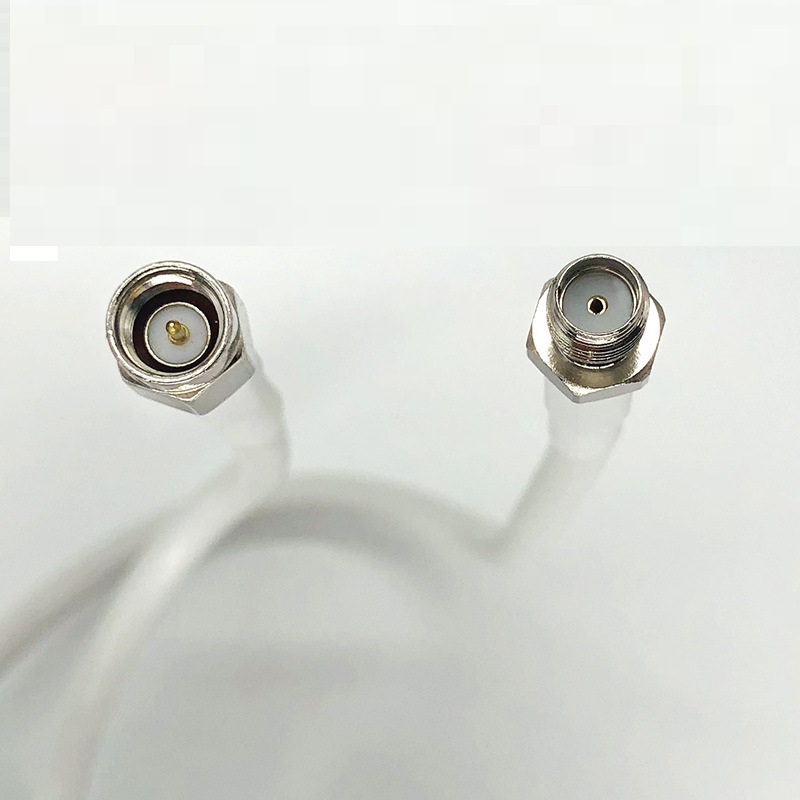

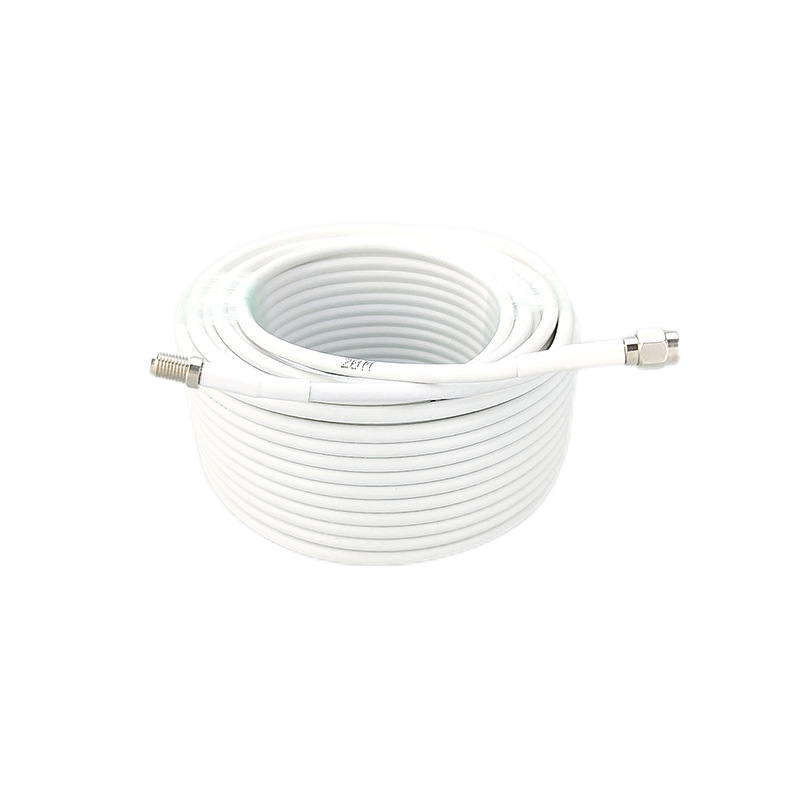

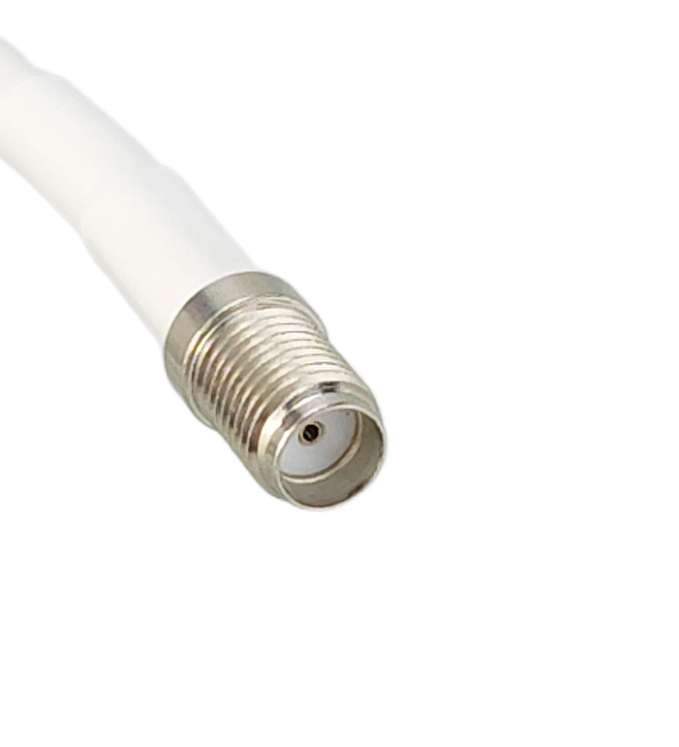

MiNi3D-FB SMA Plug To SMA Jack

Product Description

MiNi3D-FB_外贸同轴线缆同轴线馈线射频同轴电缆RF_cable手机信号 (2)

MiNi3D-FB Construction Specification
ltem		Material						Diameter(mm)
Inner conductor		Copper clad steel						0.8±0.01
Dielectric		Foam Polyethylene FPE						2.35±0.05
Outer Conductor		single-sided aluminum tape						2.45±0.05
Braid		Aluminum Magnesium Alloy Braiding						2.85+0.05
Jacket		polyvinyl chloride(PVC)White						4.10±0.1
Electrical Characteristics
Items				Specifications
Capacitance(pF/m)				85pF/m
lmpedance(ohm)				50±2Q
Velocity(%)				76%
Cutoff frequency(GHz)				6GHz
Jacket-Marking				3D-FB
Screening attenuation(≥dB)				90
VSWR				DC-3G小于1.25
Mechanical and Environmental Characteristics
Items						Specifications
Min. bending radius static(mm)						8mm
RoHS						OK
Operating temp(℃)						-20℃~70℃
Weigh(kg/km)						21 kg/km
20℃ Typical sea level attenuation
Frequency (MHz)			Attenuation(dB/100m)			Power(Watts CW)
400			26.4
900			39.82
1800			57.33
2500			68.25
3000			75.32
5800			107.52
MiNi3D-FB Cable signal loss and VSWR
Length(m) Frequency (Mhz)	1.22	3.048	5.49	7.62	10.67	15.24	30.48	VSWR
	4FT	10FT	18FT	25FT	35FT	50FT	100FT
30	0.09	0.21	0.38	0.53	0.75	1.07	2.13	1.05
100	0.16	0.40	0.71	0.99	1.39	1.98	3.96	1.08
200	0.22	0.56	1.00	1.39	1.95	2.79	5.58	1.08
400	0.32	0.79	1.43	1.98	2.77	3.96	7.92	1.1
700	0.43	1.07	1.92	2.67	3.73	5.33	10.67	1.12
900	0.49	1.22	2.20	3.05	4.27	6.10	12.19	1.15
1300	0.60	1.49	2.69	3.73	5.23	7.47	14.94	1.17
1900	0.72	1.80	3.24	4.50	6.30	8.99	17.98	1.18
2600	0.85	2.13	3.84	5.33	7.47	10.67	21.34	1.18
6000	1.33	3.32	5.98	8.31	11.63	16.61	33.22	1.35
