Product Description

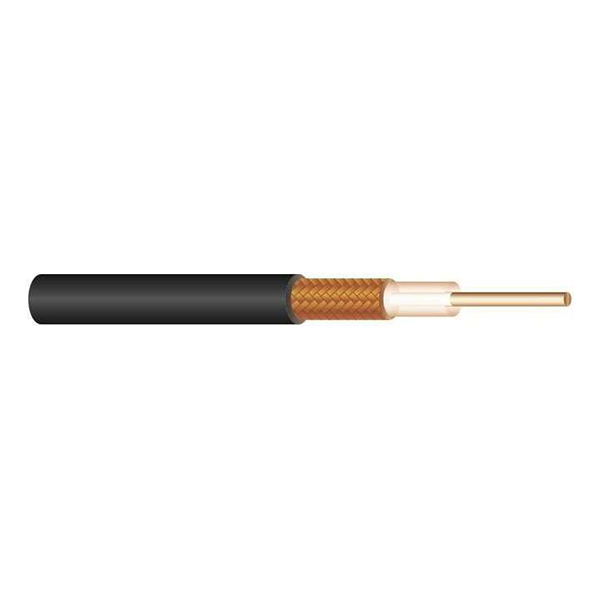

SYV-50 Series Of Solid Polyethylene Insulated RF Cable is manufactured according to the standards of GB/T14864 —1993.The following applies to 1GHz analog signal and high speed digitalsignal transmission.
The cable has the uniform characteristic impedance, low loss, low delay, minimum attenuation properties.
The product is mainly applied to the RF signal is fixed or mobile radio communication and electronic device with similar technology transfer.
Product Structure
Type | Inner conductor | InsuIaion | Outer conductor | Jacket | |||
MateriaI | Roots X Diameter | Diameter | MateriaI | Form | Thickness | Diameter | |
SYV-50-2-1 | Copper Wire | 7X0.16 | 1.50 | Copper Wire | Single Braid | 0.43 | 2.8 |
SYV-50-2-7 | Copper Clad Steel | 7X0.16 | 1.50 | Copper Wire | Single Braid | 0.43 | 2.8 |
SYV-50-2-41 | Copper Wire | 1 X0.68 | 2.20 | Copper Wire | Single Braid | 0.56 | 4.0 |
SYV-50-3-1 | Copper Wire | 7X0.32 | 2.95 | Copper Wire | Single Braid | 0.75 | 5.0 |
SYV-50-3-4 | Copper Wire | 1X0.90 | 2.95 | Copper Wire | Single Braid | 0.75 | 5.0 |
SYV-50-3-41 | Copper Wire | 1X0.90 | 2.95 | Copper Wire | DoubIe Braid | 0.80 | 5.8 |
SYV-50-5-1 | Copper Wire | 1X1.40 | 4.80 | Copper Wire | Single Braid | 0.88 | 7.2 |
SYV-50-5-41 | Copper Wire | 1X1.40 | 4.80 | Copper Wire | DoubIe Braid | 0.92 | 7.9 |
SYV-50-7-1 | Copper Wire | 7X0.75 | 7.25 | Copper Wire | Single Braid | 1.05 | 10.3 |
SYV-50-7-41 | Copper Wire | 7X0.75 | 7.25 | Copper Wire | DoubIe Braid | 1.10 | 11.0 |
SYV-50-9-1 | Copper Wire | 7X0.95 | 9.0 | Copper Wire | Single Braid | 1.18 | 12.2 |
SYV-50-12-41 | Copper Wire | 7X1.15 | 11.5 | Copper Wire | Single Braid | 1.30 | 15.0 |
Electrical Properties
Type | Dielectric strength kv | InsuIation resistance (MO •km) | Impedance Q | Capacitance pF / m | Rate | Weight kg / km | Min. bending radius | |
Indoor | Outdoor | |||||||
SYV-50-2-1 | 2.0 | N5000 | 50±2 | 100 | 0.66 | 15 | 15 | 30 |
SYV-50-2-7 | 2.0 | 50±2 | 100 | 0.66 | 15 | 15 | 30 | |
SYV-50-2-41 | 3.0 | 50±2 | 100 | 0.66 | 31 | 20 | 40 | |
SYV-50-3-1 | 4.0 | 50±2 | 100 | 0.66 | 40 | 25 | 50 | |
SYV-50-3-4 | 4.0 | 50±2 | 100 | 0.66 | 40 | 25 | 50 | |
SYV-50-3-41 | 4.2 | 50±2 | 100 | 0.66 | 60 | 30 | 60 | |
SYV-50-5-1 | 6.5 | 50±2 | 100 | 0.66 | 72 | 35 | 70 | |
SYV-50-5-41 | 6.5 | 50±2 | 100 | 0.66 | 104 | 40 | 80 | |
SYV-50-7-1 | 10.0 | 50±2 | 100 | 0.66 | 160 | 50 | 100 | |
SYV-50-7-41 | 10.0 | 50±2 | 100 | 0.66 | 200 | 50 | 100 | |
SYV-50-9-1 | 12.0 | 50±2 | 100 | 0.66 | 237 | 60 | 120 | |
SYV-50-12-41 | 15.0 | 50±2 | 100 | 0.66 | 280 | 70 | 140 | |
Attenuation Constant
Type | (MHz) Frequency | ||||||||||
20 | 150 | 200 | 400 | 900 | 1800 | 1900 | 2000 | 2400 | 3000 | ||
SYV-50-2-1 | 3.08 | 13.83 | 38.18 | 44.17 | 62.82 | 95.13 | 136.14 | 140.02 | 143.81 | 158.17 | 177.80 |
SYV-50-2-7 | 3.08 | 13.83 | 38.18 | 44.17 | 62.82 | 95.13 | 136.14 | 140.02 | 143.81 | 158.17 | 177.80 |
SYV-50-2-41 | 1.91 | 8.59 | 23.82 | 27.59 | 39.38 | 59.98 | 86.41 | 88.93 | 91.40 | 100.75 | 113.60 |
SYV-50-3-1 | 1.64 | 7.38 | 20.48 | 23.74 | 33.93 | 51.80 | 69.40 | 77.06 | 79.21 | 87.40 | 98.68 |
SYV-50-3-4 | 1.44 | 6.47 | 18.01 | 20.88 | 29.89 | 45.74 | 66.28 | 68.25 | 70.18 | 77.51 | 87.62 |
SYV-50-3-41 | 1.44 | 6.47 | 18.01 | 20.88 | 29.89 | 45.74 | 66.28 | 68.25 | 70.18 | 77.51 | 87.62 |
SYV-50-5-1 | 0.90 | 4.08 | 11.48 | 13.33 | 19.21 | 29.72 | 43.63 | 44.98 | 46.30 | 51.35 | 58.37 |
SYV-50-5-41 | 0.90 | 4.08 | 11.48 | 13.33 | 19.21 | 29.72 | 43.63 | 44.98 | 46.30 | 51.35 | 58.37 |
SYV-50-7-1 | 0.71 | 3.20 | 9.06 | 10.54 | 15.26 | 23.81 | 35.26 | 36.38 | 37.48 | 41.69 | 47.57 |
SYV-50-7-41 | 0.71 | 3.20 | 906 | 10.54 | 15.26 | 23.81 | 35.26 | 36.38 | 37.48 | 41.69 | 47.57 |
SYV-50-9-1 | 0.59 | 2.66 | 7.58 | 8.83 | 12.84 | 20.18 | 30.12 | 31.10 | 32.08 | 35.76 | 40.94 |
SYV-50-12-41 | 0.47 | 2.13 | 6.11 | 7.13 | 10. 44 | 16.57 | 25.03 | 25.88 | 26.70 | 29.88 | 34.37 |
