Product Description
The cable be used for mobile communication or radio communication antenna,and ground station antenna.
The cable with foamed polyethylene insulated,it has the low loss, low delay, minimum attenuation properties.

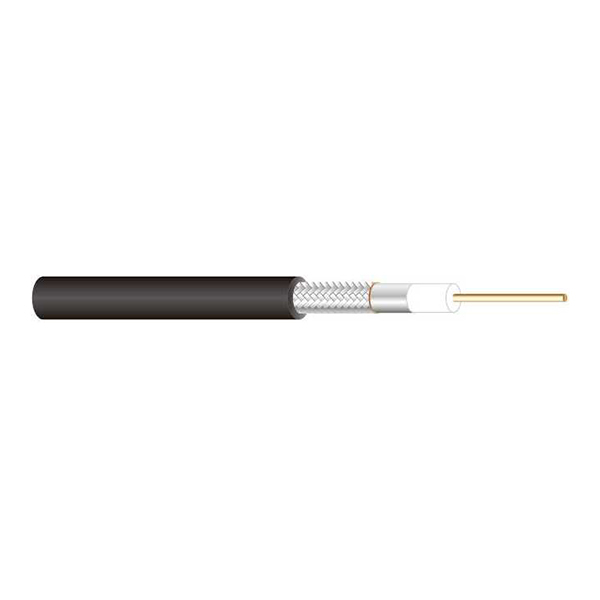

Product Structure
Structure | SYWV-50-3 | SYWV-50-4 | SYWV-50-5 | SYWV-50-7 | SYWV-50-9 | SYWV-50-10 |
Inner conductor | 1.02 | 1.40 | 1.80 | 2.60 | 3.20 | 3.50 |
Insulation | 3.00 | 3.80 | 5.00 | 7.30 | 9.00 | 10.00 |
Outer conductor | 3.70 | 4.50 | 5.70 | 8.30 | 10.00 | 11.00 |
Jacket | 5.00 | 6.10 | 7.50 | 10.20 | 12.40 | 13.30 |
Electrical Properties
Item | SYWV-50-3 | SYWV-50-4 | SYWV-50-5 | SYWV-50-7 | SYWV-50-9 | SYWV-50-10 | |
Resistance Q/km | Inner conductor | 24.00 | 12.10 | 6.92 | 3.34 | 2.21 | 182 |
Outer conductor | 13.50 | 12.76 | 10.50 | 11.10 | 1.50 | 7.10 | |
Insulation resistance (MQ*km) | 5000 | ||||||
Dielectric strength (kV) | 1.6 | ||||||
Rate (%) | 81 | 81 | 82 | 82 | 81 | 81 | |
Impedance (Q) | 50±2 | ||||||
SWR (2000MHz) | W1.2 | ||||||
withstand voltage V(DC) | 1000 | 1000 | 2000 | 2500 | 3000 | 3000 | |
voltage V(DC) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | |
Capacitance (pF/m) | 81 | 81 | 81 | 81 | 81 | 81 | |
