XMRZJ14
XIAO MA
XMRZJ14
RG178
| Quantity: | |
|---|---|
Product Description

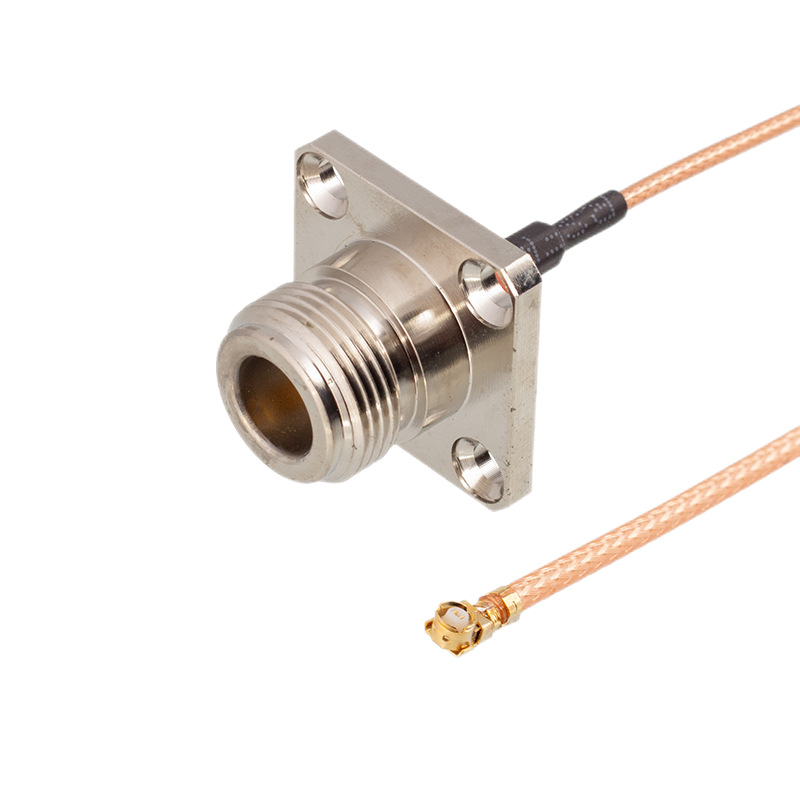

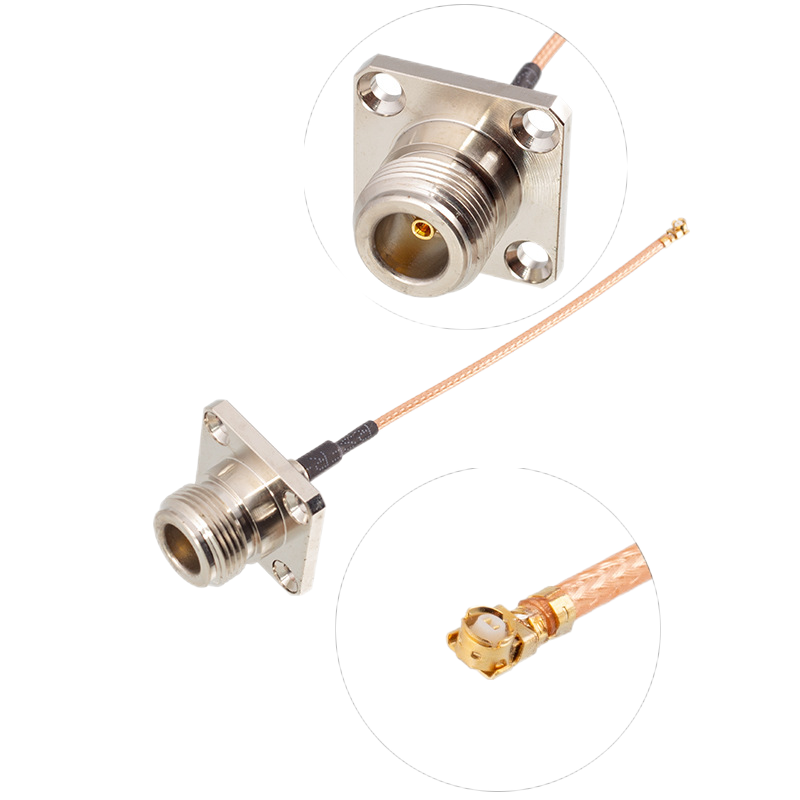

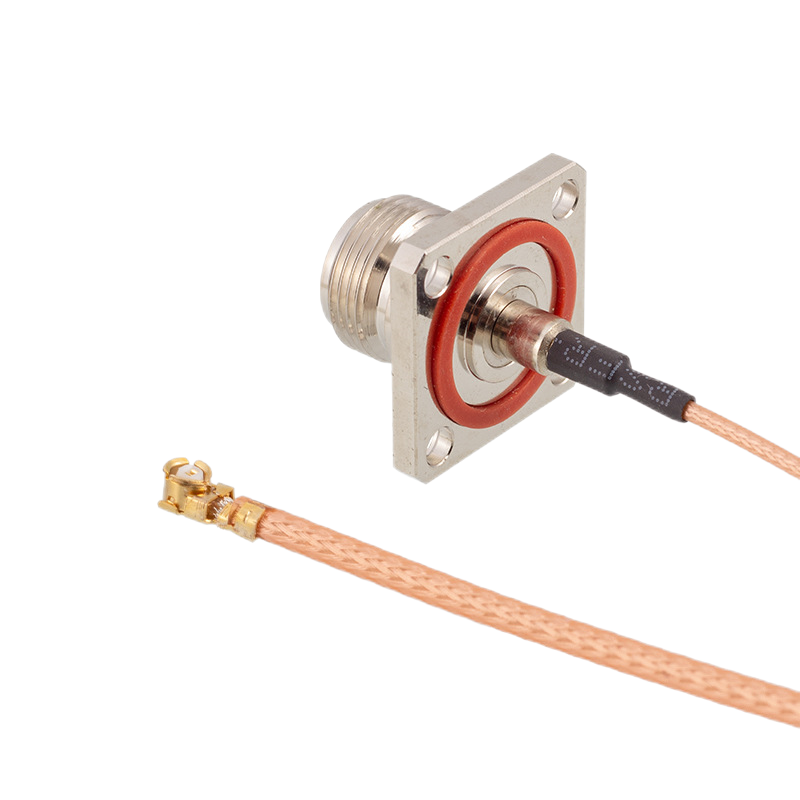

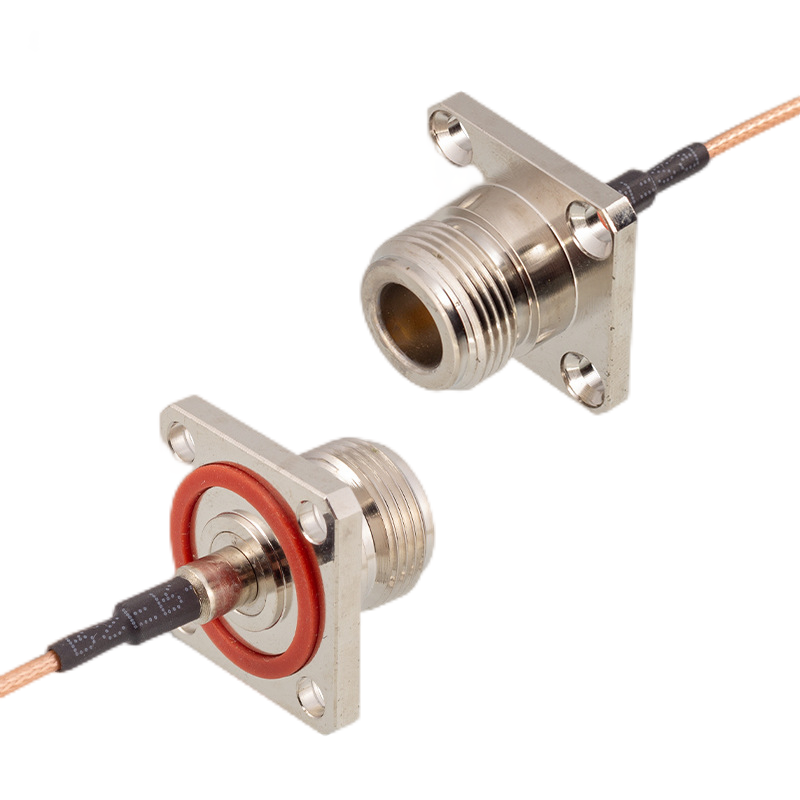

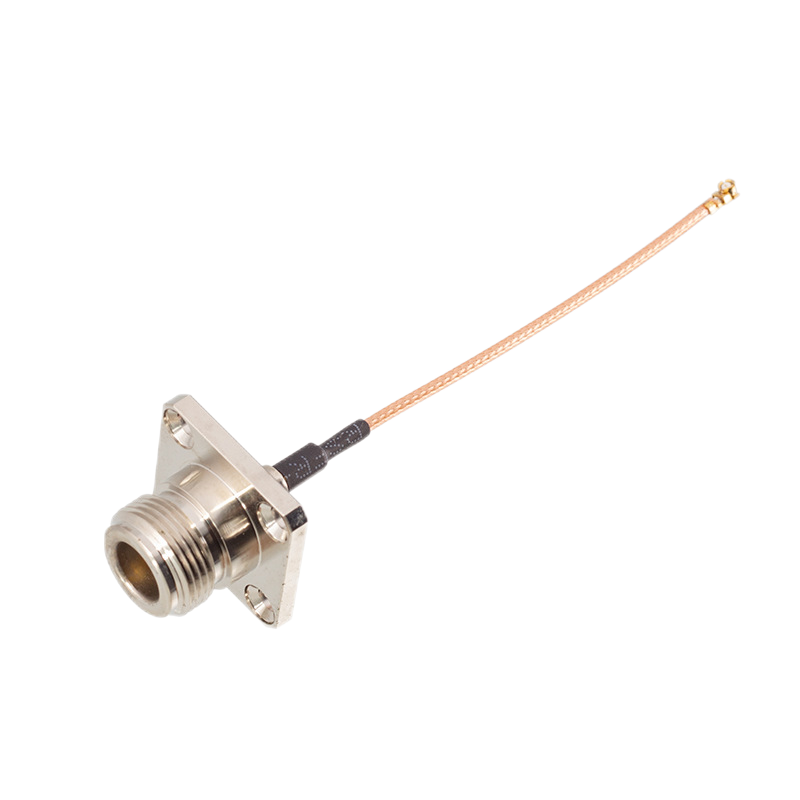

| Product Name | N Square Plate Flange Jack To IPEX Outdoor Waterproof Cable Assembly RG178 Cable |
| Model | XMRZJ14 |
| Connector | N Square Plate Flange Jack To IPEX |
| Cable Type | RG178 |
| Cable Length | 15 cm or customized |
| Frequency | DC~4GHz |
| Impendence | 50 Ω 75Ω |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| working voltage | 500Vr.m.s |
| withstand voltage | 1500Vr.m.s |
| contact resistance | >= 5000 MΩ |
| Retention force of the inner conductor | >= 0.57N |
| Insertion loss | 0.20dB/3GHz |
| VSWR | (Straight) <=1.22/3GHz , Right Angle <=1.30/3GHz |
| Application | Communication |
| Connector Material | Brass |
| Durability | >=500 |
| Environment temperature | -20-80 |
